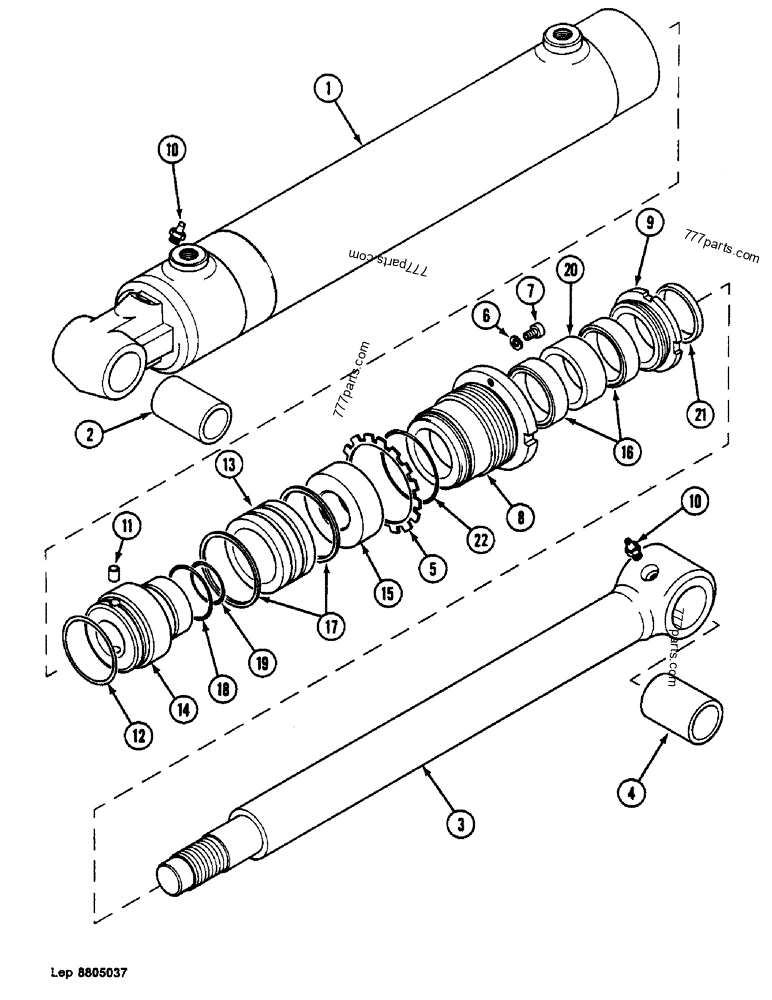

#	Part No.	Description	Qty
	D1***10	CYLINDER ASSY.; Consist Of 1 - 22	1
1	W1***18	JACK BODY; Consist Of 2	1
2	C2***19	BUSHING,M40 x 50 x 78	1
3	G4***64	PISTON ROD; Consist Of 4	1
4	C2***19	BUSHING,M40 x 50 x 78	1
5	N4***45	WASHER	1
6	C3***09	WASHER; W8	1
7	G3***19	SCREW,Hex Skt Hd, M8 x 10mm; C|CASE : TUBE - ORDER THE REFERENCE ....... 1 G33197 POCLAIN : SCREW - ORDER THE REFERENCE ....... 1 P0032919G	1
8	D1***48	CYLINDER END CAP; BEARING	1
9	J2***62	NUT	1
10	J4***01	LUBE NIPPLE,M8 x 1.25	2
11	E2***51	LARGE PIN; PIN, LARGE	1
12	A3***84	SPECIAL RING	1
13	G1***68	BRONZE BUSHING; BRONZE BUSH	1
14	C2***41	NUT	1
15	F3***67	WASHER	1
16	V5***46	BEARING LINER	2
	S6***17	SEAL PACKAGE; Consist Of 17 - 22	1
17	B3***82	SPECIAL MAT. SEAL	2
18	A3***37	O-RING	1
19	T3***31	O-RING	1
20	Z6***23	LINING	1
21	T4***51	WIPER SEAL	1
22	G3***43	O-RING	1
