Case 1088FG (CASE ELECTRIC EXCAVATOR - PORTUGAL (90KW 380V) (1/88-12/94))

CRAWLER DOZERS Case 1088FG
/case/1088FG/m9/s-32.html / No Description / WOOD GRAB CYLINDER

Select section

All

• All

Subsection

All

• All

Unit

Select group

8

1

6

7

4

22

2

18

20

13

9

14

5

10

17

3

10

21

19

23

22

11

16

15

24

17

12

Subscribe to get access to part numbers.

Unlock Access

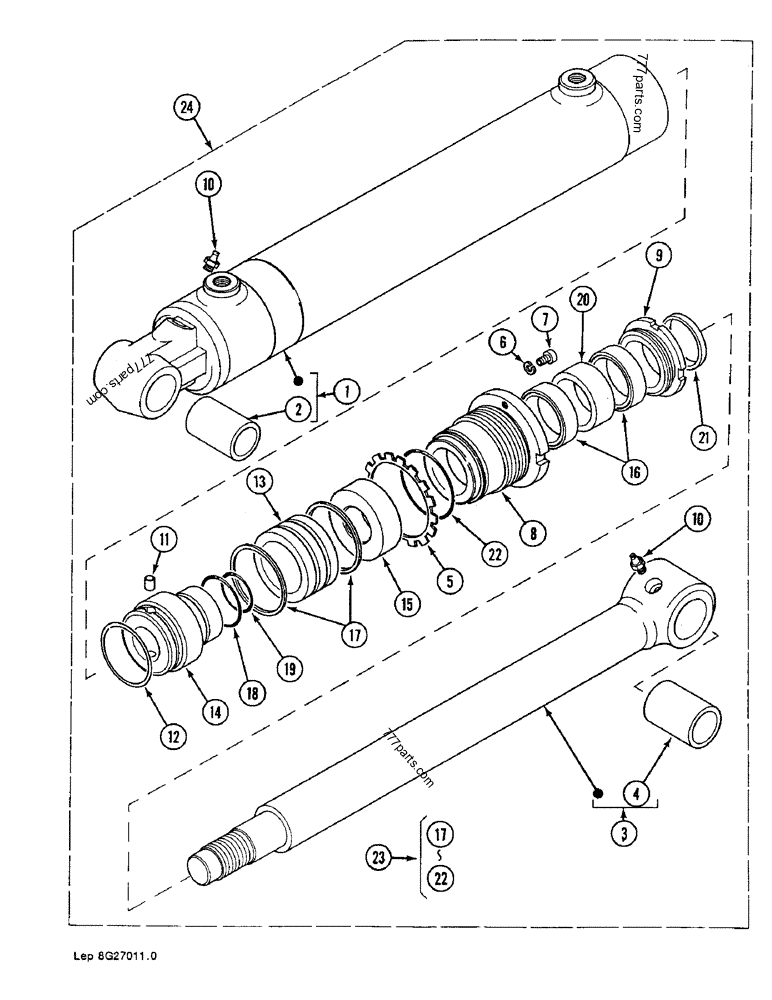

#	Part No.	Description	Qty
1	N4***77	JACK BODY; CYLINDER	1
2	C2***19	BUSHING,M40 x 50 x 78	1
3	J4***66	PISTON ROD	1
4	C2***19	BUSHING,M40 x 50 x 78	1
5	N4***45	WASHER	1
6	C3***09	WASHER	1
7	G3***97	TUBE,30.82" L	1
8	Q1***13	CYLINDER END CAP; BEARING	1
8	D1***48	CYLINDER END CAP; BEARING	1
9	J2***62	NUT	1
10	J4***01	LUBE NIPPLE,M8 x 1.25	2
11	E2***51	LARGE PIN; PIN, LARGE	1
12	A3***84	SPECIAL RING	1
13	G1***68	BRONZE BUSHING; BRONZE BUSH	1
14	C2***41	NUT	1
15	F3***67	WASHER	1
16	V5***46	BEARING LINER	2
17	B3***82	SPECIAL MAT. SEAL	2
18	A3***37	O-RING	1
19	T3***31	O-RING	1
20	Z6***23	LINING	1
21	T4***51	WIPER SEAL	1
22	G3***43	O-RING	1
23	S6***17	SEAL PACKAGE	1
24	U5***74	CYLINDER ASSY.	1
