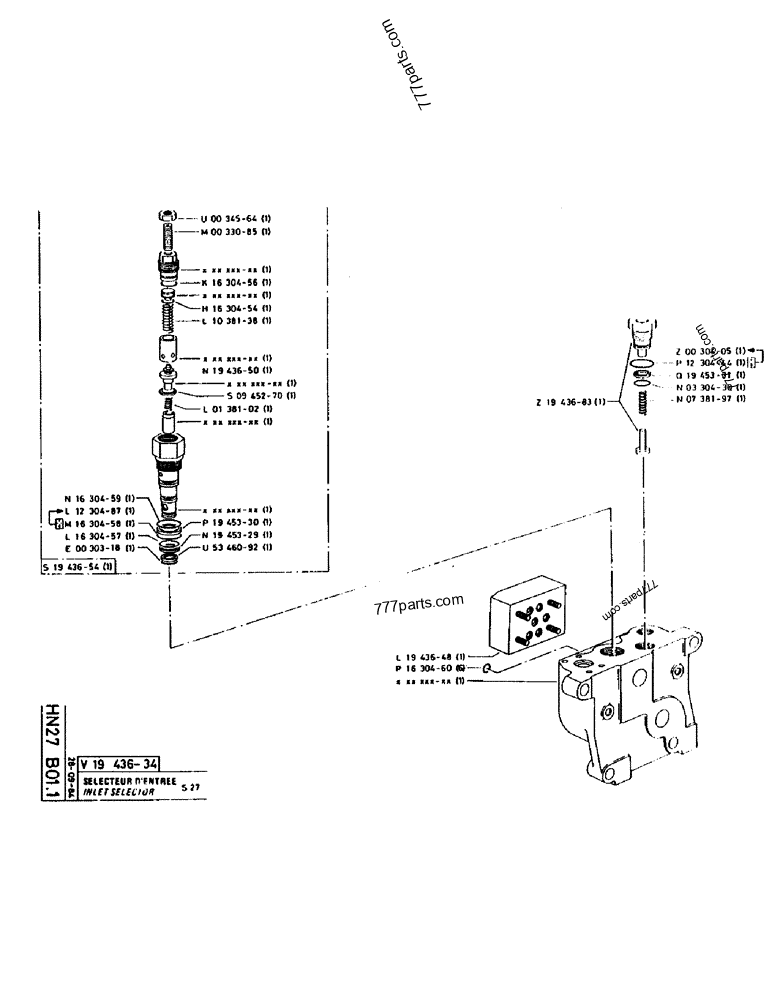

Part diagram INLET SELECTOR - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P1***59 GASKET 1
P1***87 O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro; SEAL, 2.62 x 31.42-80 1
P1***58 HYDRAULIC SWIVEL; no longer sold 1
P1***57 HYDRAULIC SWIVEL 1
P3***18 O-RING; SEAL, 3.6 x 23 1
P1***54 CARTRIDGE 1
P3***64 NUT 1
P3***85 SCREW; /BOLT, M16 x 40 1
P1***56 O-RING 1
P1***54 O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro 1
P1***38 COMPRESSION SPRING 1
P1***50 VALVE POPPET; VALVE 1
P9***70 WASHER, SEALING; SEAL WASHER 20.2 x 25 x 1.5 1
P1***02 COMPRESSION SPRING 1
P1***30 BACK-UP RING; BUSHING 1
P1***29 BACK-UP RING; BUSHING 1
P5***92 BACK-UP RING; BUSHING 1
P1***48 VALVE 1
P1***60 O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro 6
P1***83 VALVE 1
P3***05 O-RING; SEAL, 2.62 x 32.99-80 1
P1***44 O-RING; 2.62 x 32.99-80, no longer sold 1
P1***31 OIL SEAL; BUSHING 1
P3***30 O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro; SEAL, 2.62 x 21.89-80 1
P7***97 COMPRESSION SPRING 1
P1***34 SELECTOR; PLATE
