Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 07 HYDRAULIC SYSTEM / RELIEF VALVE

Select modification

Select section

Subsection

Unit

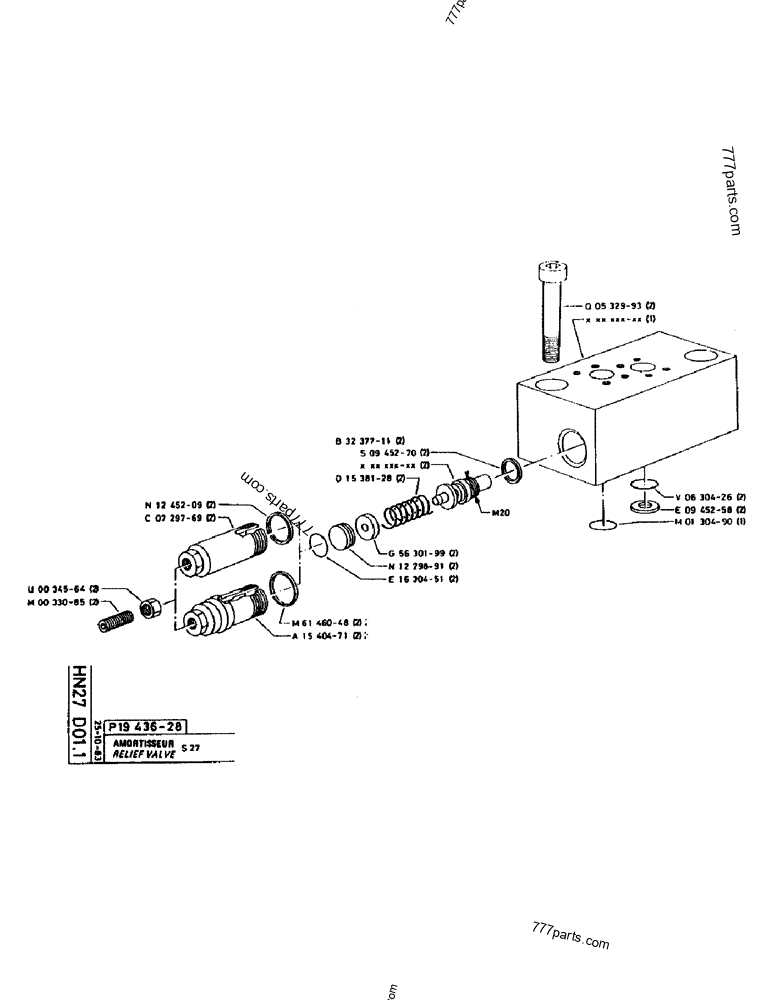

Part diagram RELIEF VALVE - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P3***64 NUT 2
P3***85 SCREW; /BOLT, M16 x 40 2
P1***09 COPPER SEAL; 25 x 30 x 2 2
P7***69 CAP; COVER 2
P6***48 GASKET; SEAL 2
P1***71 CAP; COVER 2
P3***11 VALVE POPPET; VALVE 2
P9***70 WASHER, SEALING; SEAL WASHER 20.2 x 25 x 1.5 2
P1***28 SPRING 2
P5***99 STOP 2
P1***91 TAPPET; PUSHER 2
P1***51 O-RING 2
P5***93 SCREW; /BOLT, M20 x 75 2
P6***26 O-RING; 3 x 32 2
P9***58 BACK-UP RING; BUSHING 2
P1***90 O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro; SEAL, 3.53 xx 23.39-80 1
P1***28 SHOCK ABSORBER
