Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 09 BOOMS / BOOM

Select modification

Select section

Subsection

Unit

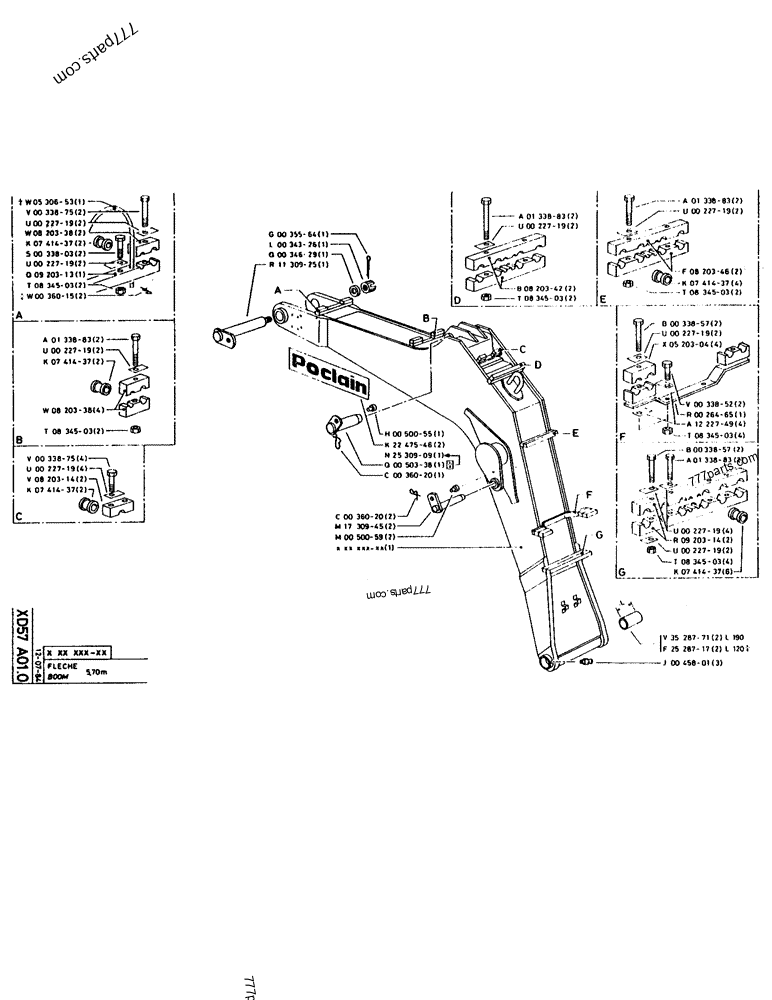

Part diagram BOOM - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P5***53 BRACKET, no longer exists on new model 1
P3***75 SCREW; /BOLT, M16 x 70 2
P2***19 BRAKE; LOCKING 2
P8***38 SHIN; BRACKET 2
P7***37 BUSHING 2
P3***03 SCREW; /BOLT, M16 x 55 2
P2***19 BRAKE; LOCKING 2
P9***13 SUPPORT 1
P8***03 NUT 2
P3***15 SPLIT PIN/SAFETY PIN; SPLIT PIN/SAFETY, no longer exists on new model 2
P1***83 SCREW; /BOLT, M16 x 110 2
P2***19 BRAKE; LOCKING 2
P7***37 BUSHING 2
P8***38 SHIN; BRACKET 4
P8***03 NUT 2
P3***75 SCREW; /BOLT, M16 x 70 4
P2***19 BRAKE; LOCKING 4
P8***14 SHIN; BRACKET 2
P7***37 BUSHING 2
P1***83 SCREW; /BOLT, M16 x 110 2
P2***19 BRAKE; LOCKING 2
P8***42 SHIN; BRACKET 2
P8***03 NUT 2
P1***83 SCREW; /BOLT, M16 x 110 2
P2***19 BRAKE; LOCKING 2
P8***46 BRACKET 2
P7***37 BUSHING 4
P8***03 NUT 2
P3***57 SCREW; /BOLT, M16 x 100 2
P2***19 BRAKE; LOCKING 2
P5***04 SHIN; BRACKET 4
P3***52 SCREW; /BOLT, M16 x 45 2
P2***65 SUPPORT PLATE 1
P1***49 BRAKE; LOCKING 4
P8***03 NUT 4
P3***57 SCREW; /BOLT, M16 x 100 2
P1***83 SCREW; /BOLT, M16 x 110 2
P2***19 BRAKE; LOCKING 4
P9***14 SHIN; BRACKET 2
P2***19 BRAKE; LOCKING 2
P8***03 NUT 4
P7***37 BUSHING 6
P3***64 SPLIT PIN/SAFETY PIN; SPLIT PIN, 10 x 140 1
P3***26 NUT 1
P3***29 WASHER 1
P1***25 PIN 1
P5***55 SHAFT LOCK 1
P2***46 DECAL; ADHESIVE 2
P2***09 HEADED PIN; PIN 1
P5***38 HEADED PIN; PIN, no longer sold 1
P3***20 SPLIT PIN/SAFETY PIN 1
P3***20 SPLIT PIN/SAFETY PIN 2
P1***45 HEADED PIN; PIN, HEADED 2
P5***59 SHAFT LOCK 2
P3***71 BUSHING, 80 x 105 x 190 2
P2***17 BUSHING; 80 x 105 x 120 2
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 3
