Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 09 BOOMS / BOOM

Select modification

Select section

Subsection

Unit

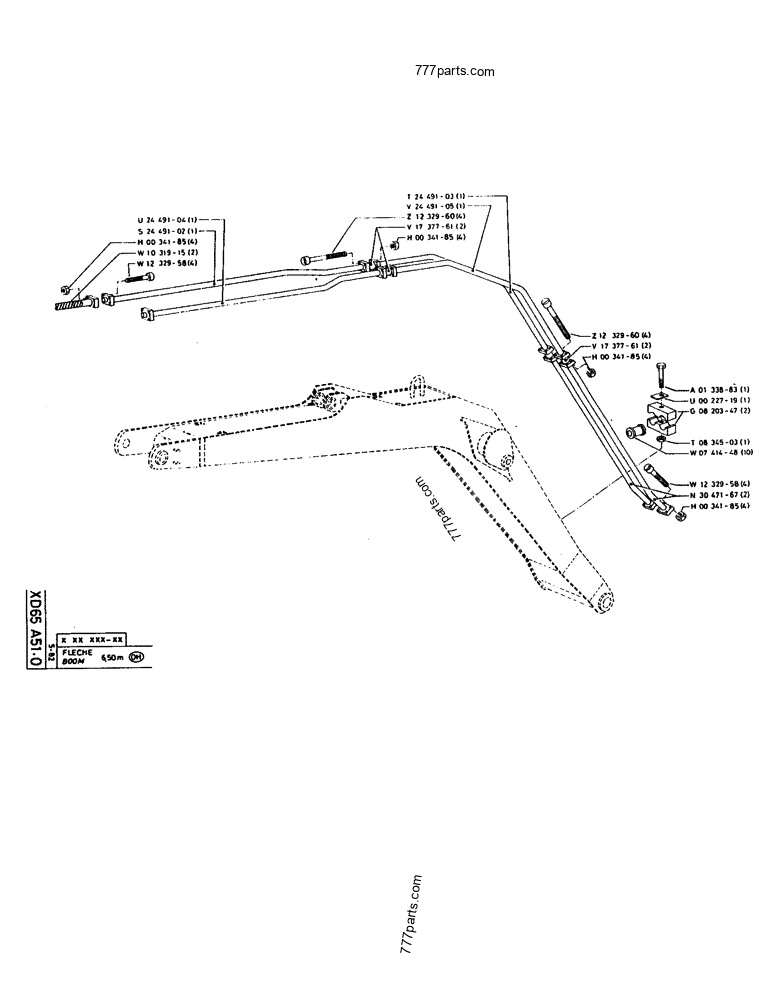

Part diagram BOOM - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P2***04 PIPE, 15 x 21 1
P2***02 PIPE, 15 x 21 1
43***62 NUT,M8 x 1.25, Cl 10; M8, Cl 10 4
P1***15 HOSE 2
P1***58 SCREW; /BOLT, M8 x 45 4
P2***03 PIPE, 15 x 21 1
P2***05 PIPE, 15 x 21 1
P1***60 SCREW; /BOLT, M8 x 75 4
P1***61 JUNCTION 2
43***62 NUT,M8 x 1.25, Cl 10; M8, Cl 10 4
P1***60 SCREW; /BOLT, M8 x 75 4
P1***61 JUNCTION 2
43***62 NUT,M8 x 1.25, Cl 10; M8, Cl 10 4
P1***83 SCREW; /BOLT, M16 x 110 1
P2***19 BRAKE; LOCKING 1
P8***47 SHIN; BRACKET 2
P8***03 NUT 1
P7***48 BUSHING 10
P1***58 SCREW; /BOLT, M8 x 45 4
P3***67 PIPE, 15 x 21 2
43***62 NUT,M8 x 1.25, Cl 10; M8, Cl 10 4
