Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 14 DIPPERSTICKS / LOADER DIPPERSTICK

Select modification

Select section

Subsection

Unit

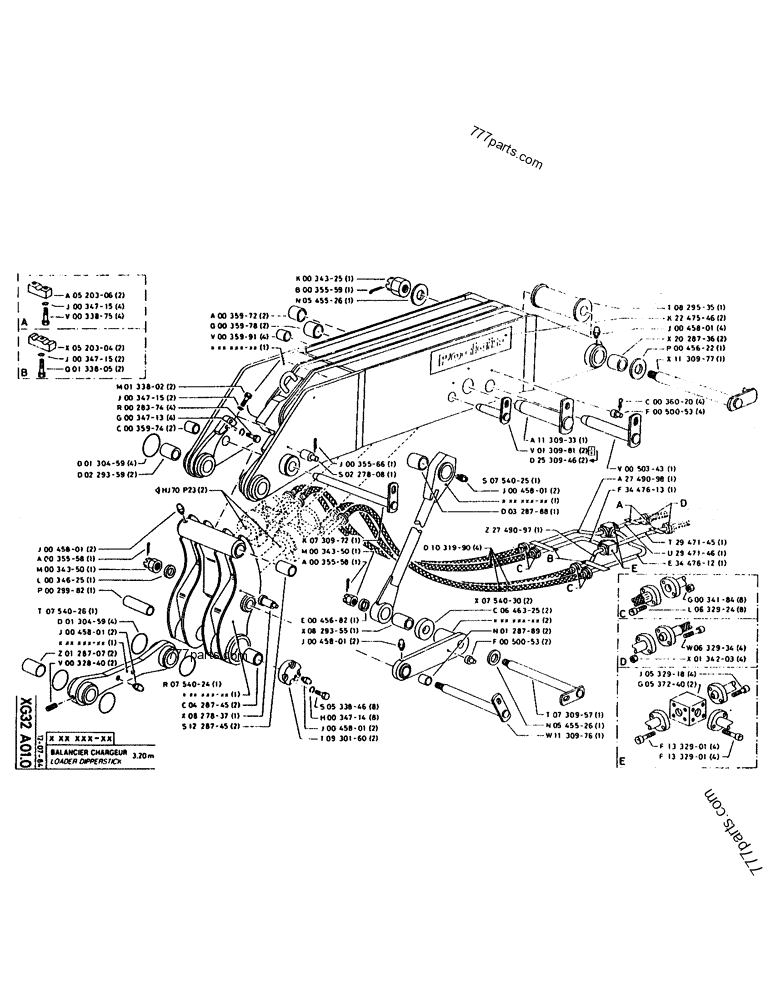

Part diagram LOADER DIPPERSTICK - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P5***06 SHIN; BRACKET 2
P3***15 WASHER, LOCK; WASHER 4
P3***75 SCREW; /BOLT, M16 x 70 4
P5***04 SHIN; BRACKET 2
P3***15 WASHER, LOCK; WASHER 2
P1***05 SCREW; /BOLT, M16 x 60 2
86***89 NUT,M10 x 1.5, Cl 10 8
L6***24 SCREW; /BOLT, M10 x 55 8
P6***34 SCREW; /BOLT, M12 x 65 4
33***75 NUT,M12, Cl 10 4
J5***18 SCREW,Hex Skt, M12 x 40mm, Cl 10.9 4
P5***40 TEE; T PIECE, DN34 x 27 x 27 2
14***31 HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd 4
14***31 HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd 4
P3***25 NUT 1
P3***59 SPLIT PIN; 8 x 120 1
P5***26 WASHER 1
P3***72 BUSHING; 75 x 85 x 68 2
P3***78 BUSHING; 100 x 120 x 65 2
P3***91 BUSHING, 60 x 75 x 65 4
P1***02 SCREW; /BOLT, M16 x 40 2
P3***15 WASHER, LOCK; WASHER 2
P2***74 SCREW; /BOLT, M12 x 50 x 50 4
P3***13 WASHER 4
P3***74 BUSHING, 65 x 75 x 80 2
P1***59 12.4 x 145.2 4
P2***59 BUSHING; 75 x 100 x 130 2
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P3***58 SPLIT PIN; 8 x 100 1
P3***50 NUT 1
P3***25 WASHER 1
P2***82 PIN 1
P7***26 CONNECTING ROD 1
P1***59 12.4 x 145.2 4
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P1***07 BUSHING, 75 x 100 x 160 2
P3***40 SCREW; /BOLT, M12 x 20 2
P7***24 LINKAGE YOKE; YOKE 1
P4***45 BUSHING; 75.5 x 100 x 75 2
P8***37 SHAFT LOCK 1
P1***45 BUSHING; 65 x 85 x 130 2
P3***66 SPLIT PIN; 10 x 100 1
P2***08 SHAFT LOCK 1
P7***72 PIN 1
P3***50 NUT 1
P3***58 SPLIT PIN; 8 x 100 1
P4***82 WASHER 1
P8***55 SPACER 1
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P5***46 SCREW; /BOLT, M14 x 40 8
P3***14 WASHER, LOCK; WASHER 8
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P9***60 COVER; PLATE 2
P8***35 SPACER 1
P2***46 DECAL; ADHESIVE 2
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 4
P2***36 BUSHING; 80 x 105 x 80 2
P4***22 WASHER; 85 x 140 x 12 1
P1***77 PIN 1
P3***20 SPLIT PIN/SAFETY PIN 4
P5***53 SHAFT LOCK 4
P1***33 PIN 1
P1***81 LARGE PIN; PIN, no longer sold 2
P2***46 HEADED PIN; PIN 2
P5***43 HEADED PIN; PIN 1
P2***98 PIPE; 19 x 27 1
P3***13 PIPE, 19 x 27 1
P7***25 TRUSS ROD; TIE BAR 1
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P3***88 BUSHING; 100 x 130 x 120 1
P2***97 PIPE, 19 x 27 1
P1***90 HOSE 4
P2***45 PIPE, 24 x 34 1
P2***46 PIPE, 24 x 34 1
P3***12 PIPE, 19 x 27 1
P7***30 ARM 2
P6***25 WASHER 2
P1***89 BUSHING; 60 x 75 x 65 2
P5***53 SHAFT LOCK 2
P7***57 HEADED PIN; PIN, HEADED 1
P5***26 WASHER 1
P1***76 PIN 1
