Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 14 DIPPERSTICKS / BACKHOE DIPPERSTICK

Select modification

Select section

Subsection

Unit

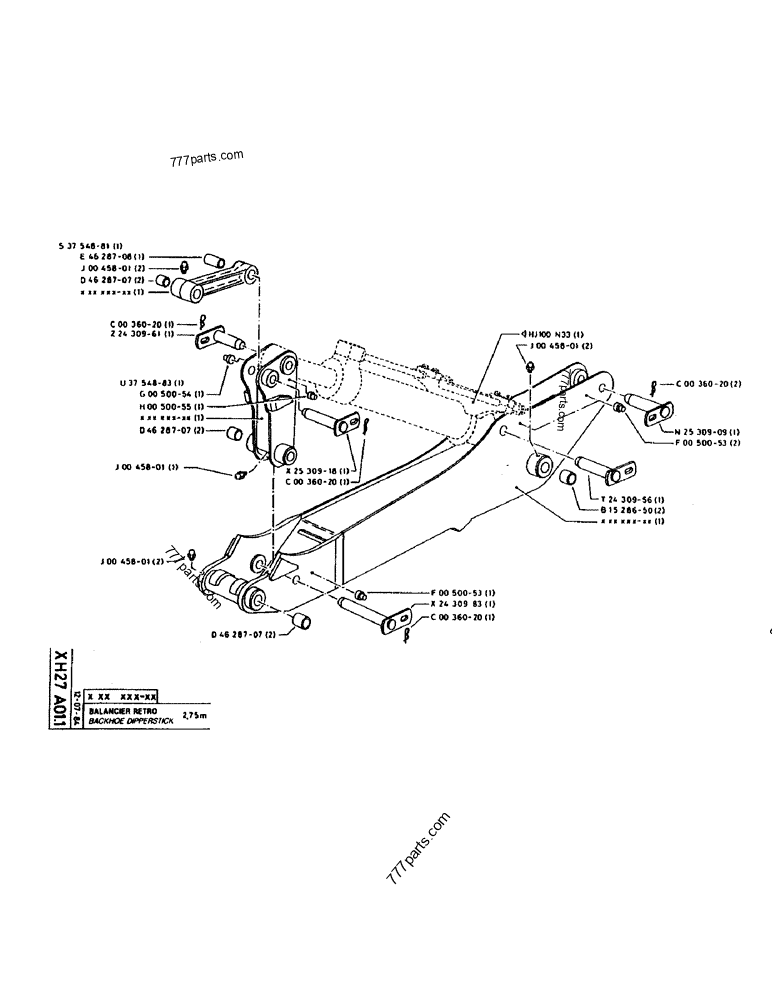

Part diagram BACKHOE DIPPERSTICK - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P3***81 ROD, CONNECTING; CONNECTING ROD 1
P4***08 BUSHING; 65 x 85 x 130 1
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P4***07 BUSHING; 65 x 85 x 70 2
P3***20 SPLIT PIN/SAFETY PIN 1
P2***61 HEADED PIN; PIN, HEADED 1
P3***83 LINKAGE YOKE; YOKE 1
P5***54 SHAFT LOCK 1
P5***55 SHAFT LOCK 1
P4***07 BUSHING; 65 x 85 x 70 2
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 1
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P2***18 HEADED PIN; PIN, HEADED 1
P3***20 SPLIT PIN/SAFETY PIN 1
P4***07 BUSHING; 65 x 85 x 70 2
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P3***20 SPLIT PIN/SAFETY PIN 2
P2***09 HEADED PIN; PIN 1
P5***53 SHAFT LOCK 2
P2***56 HEADED PIN; PIN, HEADED 1
P1***50 BUSHING, LARGE; BUSHING, 80 x 105 x 80 2
P5***53 SHAFT LOCK 1
P2***83 PIVOT PIN; PIN 1
P3***20 SPLIT PIN/SAFETY PIN 1
