Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 14 DIPPERSTICKS / CLAMSHELL MOUNTING

Select modification

Select section

Subsection

Unit

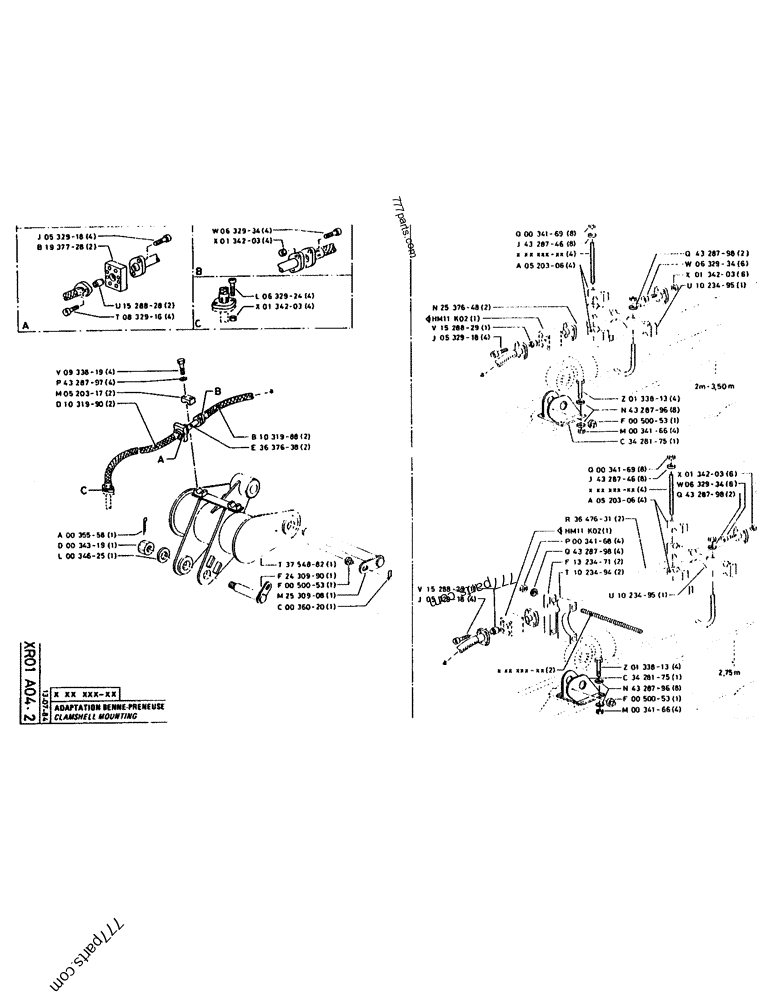

Part diagram CLAMSHELL MOUNTING - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
J5***18 SCREW,Hex Skt, M12 x 40mm, Cl 10.9 4
P1***28 RESTRICTOR; DN34 x DN27 2
P1***28 JUNCTION 2
P8***16 SCREW; /BOLT, M10 x 40 4
P6***34 SCREW; /BOLT, M12 x 65 4
33***75 NUT,M12, Cl 10 4
L6***24 SCREW; /BOLT, M10 x 55 4
33***75 NUT,M12, Cl 10 4
P9***19 SCREW; /BOLT, M12 x 55 x 55 4
P4***97 WASHER; 12.5 x 8 x 25 4
P5***17 SHIN; BRACKET, 26 x 34 2
P1***90 HOSE 2
P1***88 HOSE 2
P3***38 PIPE; 24 x 34 2
P3***58 SPLIT PIN; 8 x 100 1
P3***19 SLOTTED NUT; NUT 1
P3***25 WASHER 1
P3***82 HEAD 1
P2***90 LARGE PIN; PIN 1
P5***53 SHAFT LOCK 1
P2***08 HEADED PIN; PIN, HEADED 1
P3***20 SPLIT PIN/SAFETY PIN 1
P3***69 NUT 8
P4***46 WASHER; 16.5 x 11 x 30 8
P5***06 SHIN; BRACKET 4
P2***48 PIPE, 24 x 34 2
P1***29 JUNCTION 1
J5***18 SCREW,Hex Skt, M12 x 40mm, Cl 10.9 4
P4***98 WASHER; 14.5 x 10 x 28 2
P6***34 SCREW; /BOLT, M12 x 65 6
33***75 NUT,M12, Cl 10 6
P1***95 SUPPORT 1
P1***13 SCREW; /BOLT, M10 x 50 4
P4***96 WASHER; 10.25 x 7 x 20 8
P5***53 SHAFT LOCK 1
10***16 NUT,M10 x 1.5, Cl 8 4
P3***75 FORK 1
P3***69 NUT 8
P4***46 WASHER; 16.5 x 11 x 30 8
P5***06 SHIN; BRACKET 4
33***75 NUT,M12, Cl 10 6
P6***34 SCREW; /BOLT, M12 x 65 6
P4***98 WASHER; 14.5 x 10 x 28 2
P3***31 PIPE; 24 x 34 2
P3***68 NUT 4
P4***98 WASHER; 14.5 x 10 x 28 4
P1***71 SHIN; BRACKET 2
P1***94 SHIN; BRACKET 2
P1***29 JUNCTION 1
J5***18 SCREW,Hex Skt, M12 x 40mm, Cl 10.9 4
P1***95 SUPPORT 1
P1***13 SCREW; /BOLT, M10 x 50 4
P3***75 FORK 1
P4***96 WASHER; 10.25 x 7 x 20 8
P5***53 SHAFT LOCK 1
10***16 NUT,M10 x 1.5, Cl 8 4
