Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 14 DIPPERSTICKS / LONG-MOUNT

Select modification

Select section

Subsection

Unit

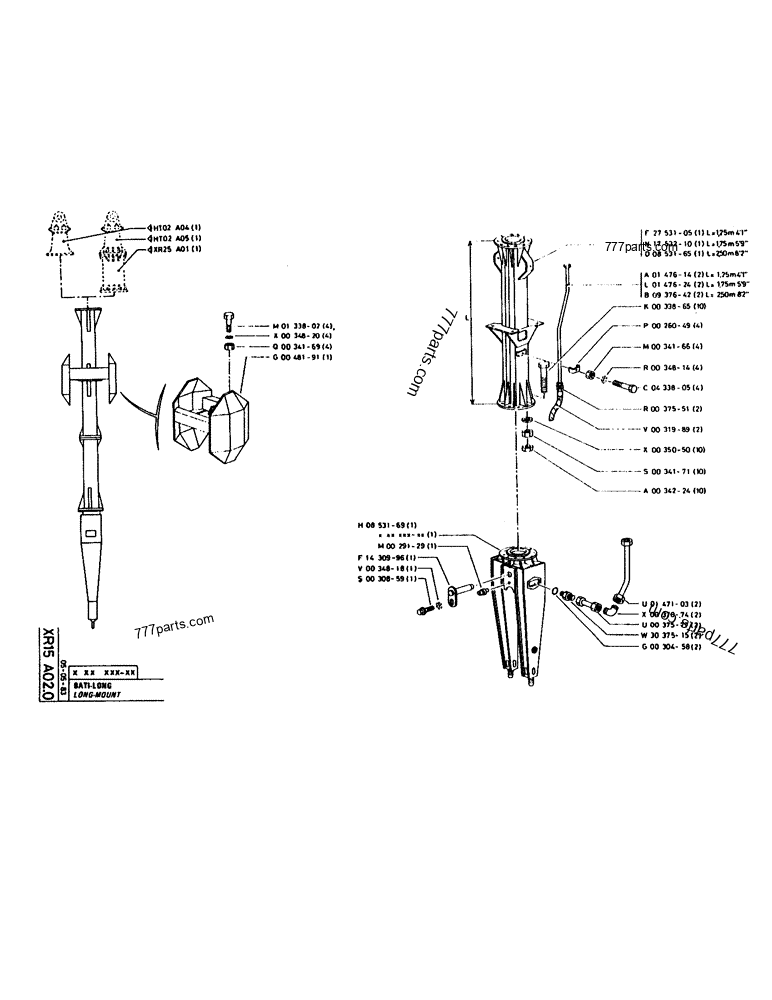

Part diagram LONG-MOUNT - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P1***02 SCREW; /BOLT, M16 x 40 4
P3***20 WASHER 4
P3***69 NUT 4
P4***91 GUIDE 1
P8***69 PROTECTION; PROTECTOR 1
P2***29 SHAFT LOCK 1
P1***96 HEADED PIN; PIN, HEADED 1
P3***18 WASHER 1
P3***59 BOLT; SCREW/BOLT 1
P2***05 EXTENSION 1
P1***10 EXTENSION 1
P8***65 EXTENSION 1
P1***14 PIPE, 19 x 27 2
P1***24 PIPE, 19 x 27 2
P9***42 PIPE, 19 x 27 2
P3***65 SCREW; /BOLT, M20 x 70 10
P2***49 PIPE CLAMP 4
10***16 NUT,M10 x 1.5, Cl 8 4
P3***14 WASHER 4
P4***05 SCREW; /BOLT, M10 x 60 x 26 4
P3***51 UNION 2
P3***89 HOSE 2
P3***50 WASHER 10
P3***71 NUT 10
P3***24 NUT 10
P1***03 PIPE, 19 x 27 2
P3***74 ELBOW-CONNECTION 2
P3***77 PIPE; 19 x 27 2
P3***15 UNION 2
P3***58 O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro; SEAL, 2.62 x 29.82-80 2
