Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 18 ATTACHMENT ACCESSORIES / AUGER MECHANISM

Select modification

Select section

Subsection

Unit

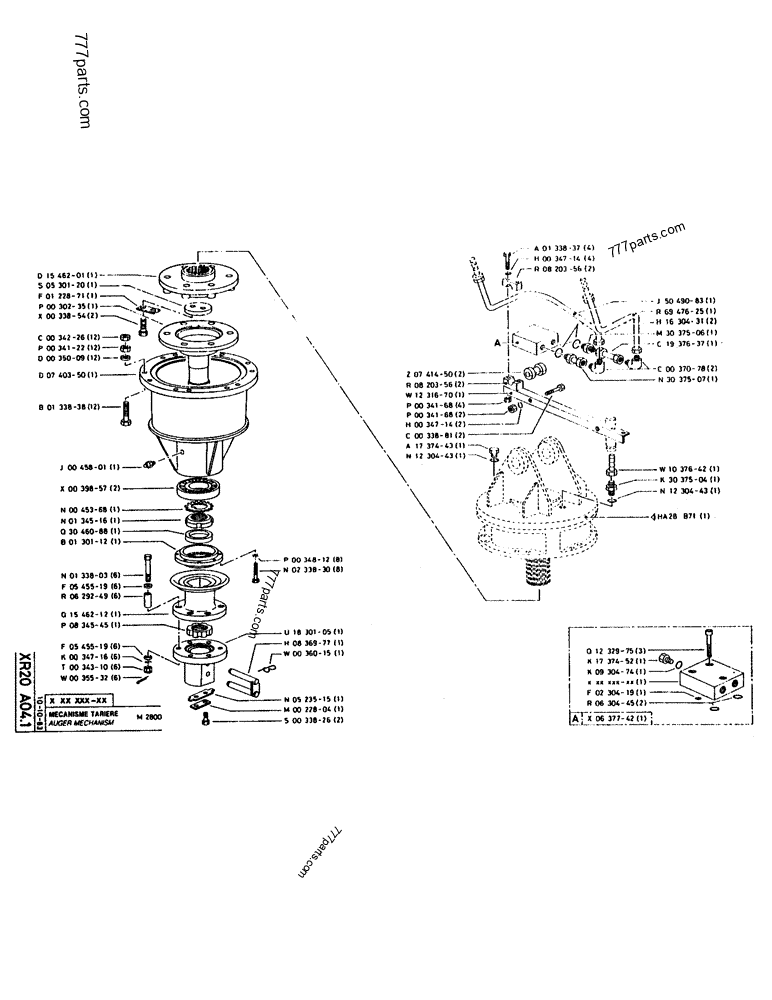

Part diagram AUGER MECHANISM - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P1***01 SPLINED COUPLING 1
P5***20 WASHER 1
P1***71 BRAKE; LOCKING 1
P3***35 SHAFT 1
P3***54 SCREW; /BOLT, M16 x 50 2
P3***26 NUT 12
P3***22 NUT 12
P3***09 WASHER 12
P7***50 HOUSING 1
P1***38 SCREW/BOLT, M22 x 100 x 70 12
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 1
P3***57 BEARING 2
P4***68 SPECIAL WASHER; NUT LOCK 1
P1***16 SLOTTED NUT, M110 x 2 1
P3***88 1
P1***12 COVER 1
P1***03 SCREW; /BOLT, M18 x 90 6
P5***19 WASHER, 19 x 7 x 40 6
P6***49 SPACER 6
P1***12 TRANSMISSION SLEEVE 1
P8***45 SLOTTED NUT; M75 x 2 1
P5***19 WASHER, 19 x 7 x 40 6
P3***16 WASHER 6
P3***10 NUT 6
P3***32 SPLIT PIN; 4 x 50 6
P3***12 WASHER 8
P2***30 SCREW; /BOLT, M8 x 40 8
P1***05 SLEEVE 1
P8***77 FASTENER; FITTING 1
P3***15 SPLIT PIN/SAFETY PIN; SPLIT PIN/SAFETY 1
P5***15 BRAKE; LOCKING 1
P2***04 BRAKE 1
P3***26 SCREW; /BOLT, M10 x 20 2
P7***50 BUSHING 2
P8***56 SHIN; BRACKET 2
P1***70 ANGLE BAR; ANGLE IRON 1
P3***68 NUT 4
P3***68 NUT 2
P3***14 WASHER, LOCK; WASHER 2
P3***81 SCREW; /BOLT, M14 x 60 2
P1***43 PLUG 1
P1***43 O-RING; SEAL, 2.62 x 23.47-80 1
P1***37 SCREW; /BOLT, M14 x 80 4
P3***14 WASHER, LOCK; WASHER 4
P8***56 SHIN; BRACKET 2
P5***83 PIPE; 15 x 21 1
P6***25 PIPE; 15 x 21 1
P1***31 O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro; SEAL, 2.62 x 36.17-80 2
P3***06 UNION 1
P1***37 PIPE; M 15 x 21 1
P3***78 ELBOW-CONNECTION 2
P3***07 FITTING; CONNECTION 1
P1***42 PIPE; 15 x 21 1
P3***04 UNION 1
P1***43 O-RING; SEAL, 2.62 x 23.47-80 1
PA***71 left-hand part 1
P1***75 SCREW,Hex Skt Hd, M14 x 70mm, Cl 10.9; /BOLT, M14 x 70 3
P1***52 PLUG 1
P9***74 O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro; SEAL, 2.62 x 15.54-80 1
P2***19 O-RING; SEAL, 2.62 x 12.37-80 1
P6***45 O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro; SEAL, 3.53 x 26.57-80 2
P6***42 SHIN; BRACKET 1
