Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 18 ATTACHMENT ACCESSORIES / LOADER BUCKET

Select modification

Select section

Subsection

Unit

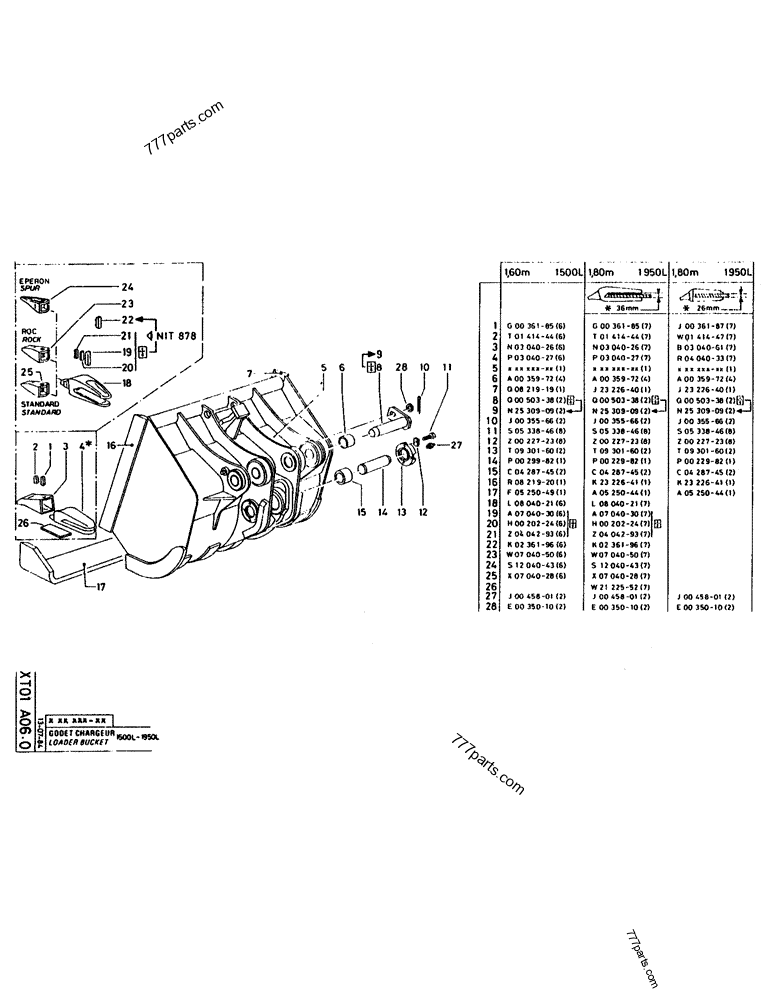

Part diagram LOADER BUCKET - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P3***85 KEY 6
P1***44 BLOCK 6
P3***26 TOOTH-TIP 6
P3***27 SUPPORT 6
P3***72 BUSHING; 75 x 85 x 68 4
P8***19 STIFFENER; REINFORCEMENT 1
P5***38 HEADED PIN; PIN, no longer sold 2
P2***09 HEADED PIN; PIN 2
P3***66 SPLIT PIN; 10 x 100 2
P5***46 SCREW; /BOLT, M14 x 40 8
P2***23 BRAKE; LOCKING 8
P9***60 COVER; PLATE 2
P2***82 PIN 1
P4***45 BUSHING; 75.5 x 100 x 75 2
P8***20 STIFFENER; REINFORCEMENT 1
P5***49 BLADE 1
P8***21 SUPPORT; TOOTH 6
P7***30 BUCKET TOOTH KEY; KEY, no longer sold 6
P2***24 BLOCK; no longer sold 6
P4***93 BUCKET TOOTH KEY; KEY, no longer sold 6
P2***96 BUCKET TOOTH KEY; KEY 6
P7***50 POINT; NAIL 6
P1***43 POINT; NAIL 6
P7***28 POINT; NAIL 6
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P3***10 WASHER 2
P3***85 KEY 7
P1***44 BLOCK 7
P3***26 TOOTH-TIP 7
P3***27 SUPPORT 7
P3***72 BUSHING; 75 x 85 x 68 4
P2***40 STIFFENER; Reinforcement 1
P5***38 HEADED PIN; PIN, no longer sold 2
P2***09 HEADED PIN; PIN 2
P3***66 SPLIT PIN; 10 x 100 2
P5***46 SCREW; /BOLT, M14 x 40 8
P2***23 BRAKE; LOCKING 8
P9***60 COVER; PLATE 2
P2***82 1
P4***45 BUSHING; 75.5 x 100 x 75 2
P2***41 STIFFENER; Reinforcement 1
P5***44 BLADE 1
P8***21 SUPPORT; TOOTH 7
P7***30 BUCKET TOOTH KEY; KEY, no longer sold 7
P2***24 BLOCK; no longer sold 7
P4***93 BUCKET TOOTH KEY; KEY, no longer sold 7
P2***96 BUCKET TOOTH KEY; KEY 7
P7***50 POINT; NAIL 7
P1***43 POINT; NAIL 7
P7***28 POINT; NAIL 7
P2***52 PLATE 7
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P3***10 WASHER 2
P3***87 BUCKET TOOTH KEY; KEY 7
P1***47 BLOCK ASSY. 7
P3***61 TOOTH-TIP 7
P4***33 SUPPORT 7
P3***72 BUSHING; 75 x 85 x 68 4
P2***40 STIFFENER; Reinforcement 1
P5***38 HEADED PIN; PIN, no longer sold 2
P2***09 HEADED PIN; PIN 2
P3***66 SPLIT PIN; 10 x 100 2
P5***46 SCREW; /BOLT, M14 x 40 8
P2***23 BRAKE; LOCKING 8
P9***60 COVER; PLATE 2
P2***82 1
P4***45 BUSHING; 75.5 x 100 x 75 2
P2***41 STIFFENER; Reinforcement 1
P5***44 BLADE 1
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 2
P3***10 WASHER 2
