Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 18 ATTACHMENT ACCESSORIES / BACKFILL BLADE

Select modification

Select section

Subsection

Unit

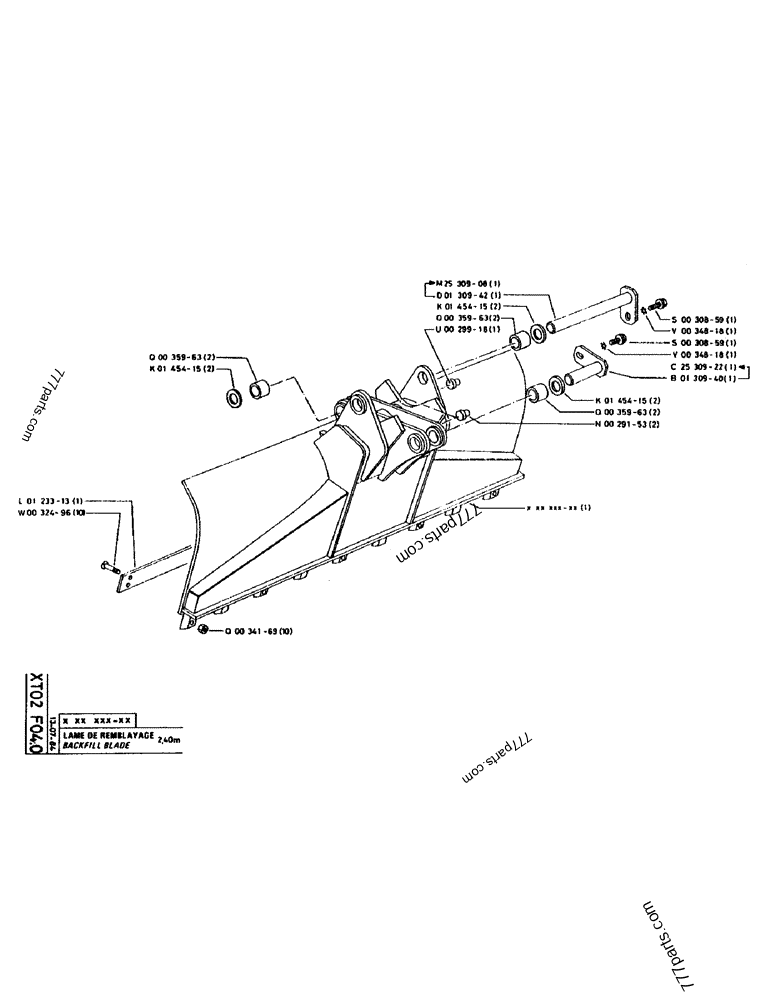

Part diagram BACKFILL BLADE - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
P1***13 BLADE 1
W3***96 BOLT,M16 x 70mm, Cl 8.8 10
P3***63 BUSHING; 65 x 75 x 50.5 2
P1***15 WASHER 2
P3***69 NUT 10
P2***08 HEADED PIN; PIN, HEADED 1
P1***42 PIN 1
P1***15 WASHER 2
P3***63 BUSHING; 65 x 75 x 50.5 2
P2***18 SHAFT LOCK 1
P1***15 WASHER 2
P3***63 BUSHING; 65 x 75 x 50.5 2
P2***53 SHAFT LOCK 2
P3***59 BOLT; SCREW/BOLT 1
P3***18 WASHER 1
P3***59 BOLT; SCREW/BOLT 1
P3***18 WASHER 1
P2***22 HEADED PIN; PIN 1
P1***40 HEADED PIN; PIN, HEADED 1
