Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82))

CRAWLER EXCAVATORS Case 160CL
/case/160CL/m72/s-221.html / 18 ATTACHMENT ACCESSORIES / 5 TINE GRAB

Select modification

Select section

Subsection

Unit

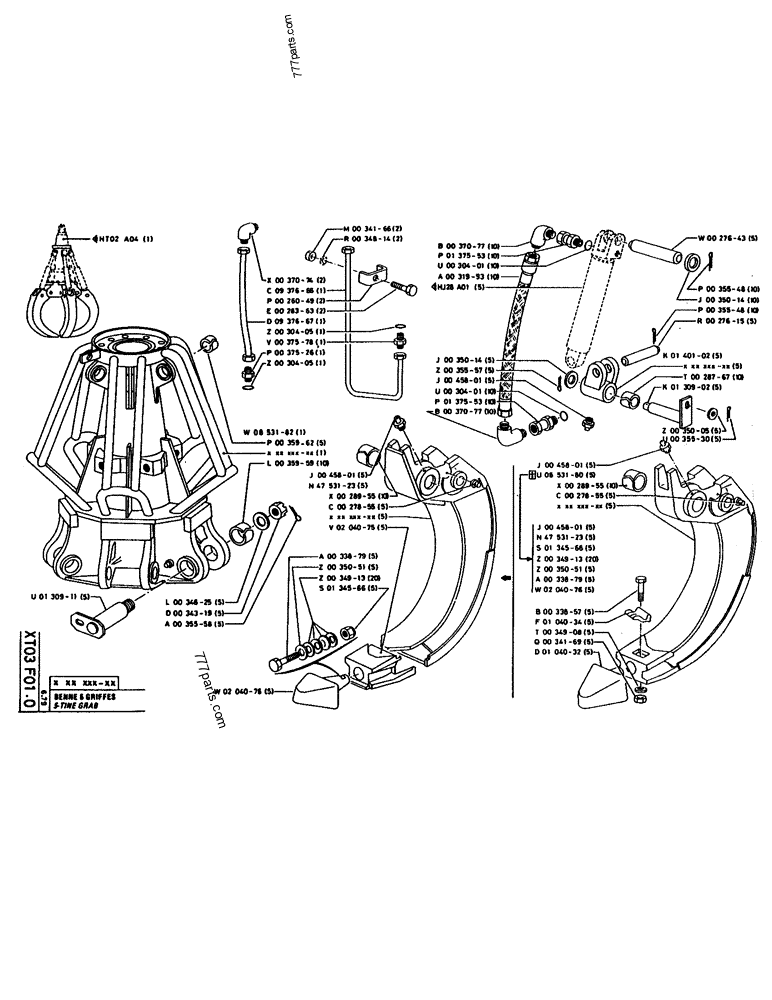

Part diagram 5 TINE GRAB - CRAWLER EXCAVATORS Case 160CL (POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER) (5/76-12/82)) | 777parts.com
# Part No. Description Qty
10***16 NUT,M10 x 1.5, Cl 8 2
P3***14 WASHER 2
P3***74 ELBOW-CONNECTION 2
P9***66 PIPE, 19 x 27 1
P2***49 PIPE CLAMP 2
12***69 BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8 2
P9***67 PIPE, 19 x 27 1
P3***05 O-RING; SEAL, 2.62 x 32.99-80 1
P3***78 UNION 1
P3***26 SUN VISOR; CONNECTION 1
P3***05 O-RING; SEAL, 2.62 x 32.99-80 1
P8***82 FRAME 1
P3***62 BUSHING; 40 x 50 x 35 5
P3***59 BUSHING; 55 x 70 x 35 10
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 5
P4***23 CLAW; TOOTH 5
P2***55 BUSHING, 55 x 75 x 65 10
P2***55 SHAFT LOCK 5
P2***75 CASE; BOX 5
P3***79 SCREW; /BOLT, M24 x 100 5
P3***51 WASHER 5
P3***13 RUBBER WASHER; SPRING WASHER, 50 x 25 x 2 20
P1***66 SAFETY NUT 5
P3***25 WASHER 5
P3***19 SLOTTED NUT; NUT 5
P3***58 SPLIT PIN; 8 x 100 5
P2***76 TOOTH 5
P2***43 PIN 5
P3***77 ELBOW-CONNECTION; ELBOW CONNECTION 10
P1***53 FITTING; CONNECTION 10
P3***01 O-RING,2.5mm Thk x 18.5mm ID; 2.5 x 18.5 10
P3***93 HOSE; 8 x 13 10
P3***48 SPLIT PIN/SAFETY PIN; SPLIT PIN, 6 x 70 10
P3***14 WASHER 10
P3***48 SPLIT PIN/SAFETY PIN; SPLIT PIN, 6 x 70 10
P2***15 PIN 5
P1***02 COUPLING 5
P3***14 WASHER 5
P3***57 SPLIT PIN; 8 x 80 5
P2***67 BUSHING; 40 x 55 x 45 10
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 5
P1***02 HEADED PIN; PIN, HEADED 5
P3***01 O-RING,2.5mm Thk x 18.5mm ID; 2.5 x 18.5 10
P1***53 FITTING; CONNECTION 10
P3***77 ELBOW-CONNECTION; ELBOW CONNECTION 10
P3***05 WASHER 5
P3***30 SPLIT PIN; 4 x 35 5
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 5
P8***80 no longer sold 5
P2***55 BUSHING, 55 x 75 x 65 10
P2***55 SHAFT LOCK 5
J4***01 LUBE NIPPLE,M8 x 1.25; GREASE NIPPLE, M8 x 1.25 5
P4***23 CLAW; TOOTH 5
P1***66 SAFETY NUT 5
P3***13 RUBBER WASHER; SPRING WASHER, 50 x 25 x 2 20
P3***51 WASHER 5
P3***79 SCREW; /BOLT, M24 x 100 5
P2***76 TOOTH 5
P3***57 SCREW; /BOLT, M16 x 100 5
P1***34 WEDGE 5
P3***08 SPRING WASHER, 40 x 16, 5 x 2 5
P3***69 NUT 5
P1***32 TOOTH 5
