Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / CYLINDER 110 X 165 C1130

Select section

Subsection

Unit

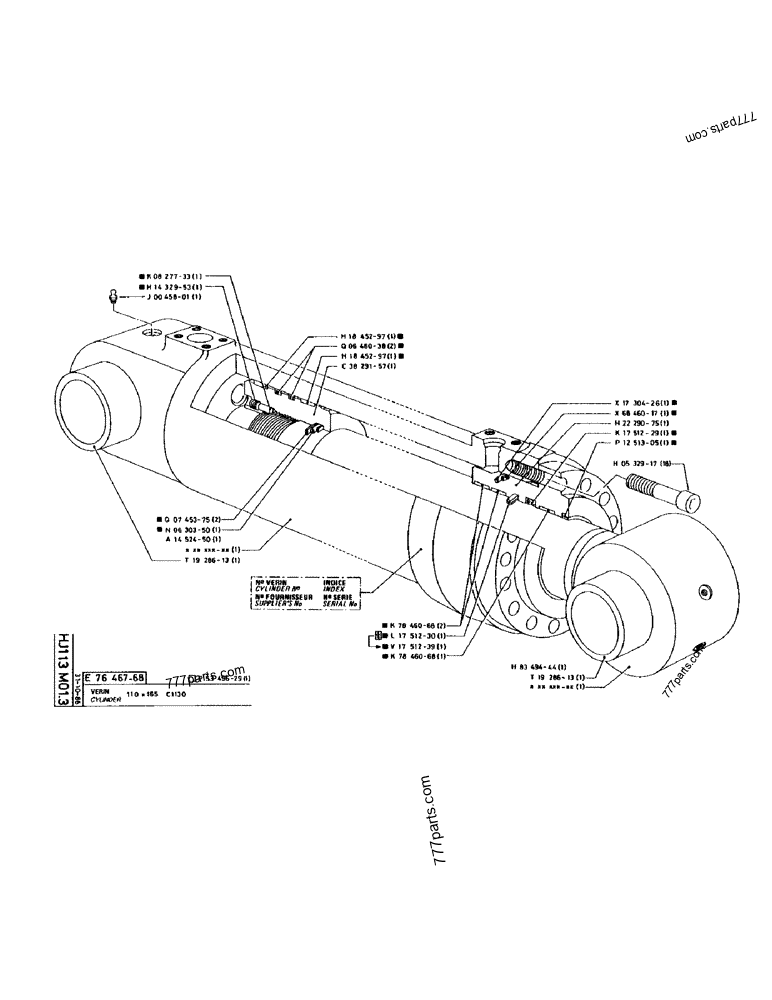

Part diagram CYLINDER 110 X 165 C1130 - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
K0827733 K8***33 PIN 1
H1432953 H1***53 SCREW 1
J0045801 J4***01 LUBE NIPPLE,M8 x 1.25 1
Q0745375 Q7***75 BACK-UP RING 2
N0630350 N6***50 O-RING 1
A1452450 A1***50 JACK BODY 1
T1928613 T1***13 BUSHING 1
P5349629 P5***29 SEAL PACKAGE 1
H1845297 H1***97 BAND 1
Q0646038 Q6***38 SPECIAL MAT. SEAL 2
H1845297 H1***97 BAND 1
C3829157 C3***57 PISTON 1
K7846068 K7***68 SEAL 2
L1751230 L1***30 SEAL 1
V1751239 V1***39 SEAL 1
K7846068 K7***68 SEAL 1
X1730426 X1***26 O-RING 1
X6846017 X6***17 BACK-UP RING 1
H2229075 H2***75 CYLINDER END CAP 1
K1751229 K1***29 SEAL 1
P1251305 P1***05 SCRAPER 1
H0532917 H5***17 SCREW,M18 x 2.5 x 2.5mm, Cl 10.9 18
H8349444 H8***44 PISTON ROD 1
T1928613 T1***13 BUSHING 1
