Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / SWING JOINT 8P

Select section

Subsection

Unit

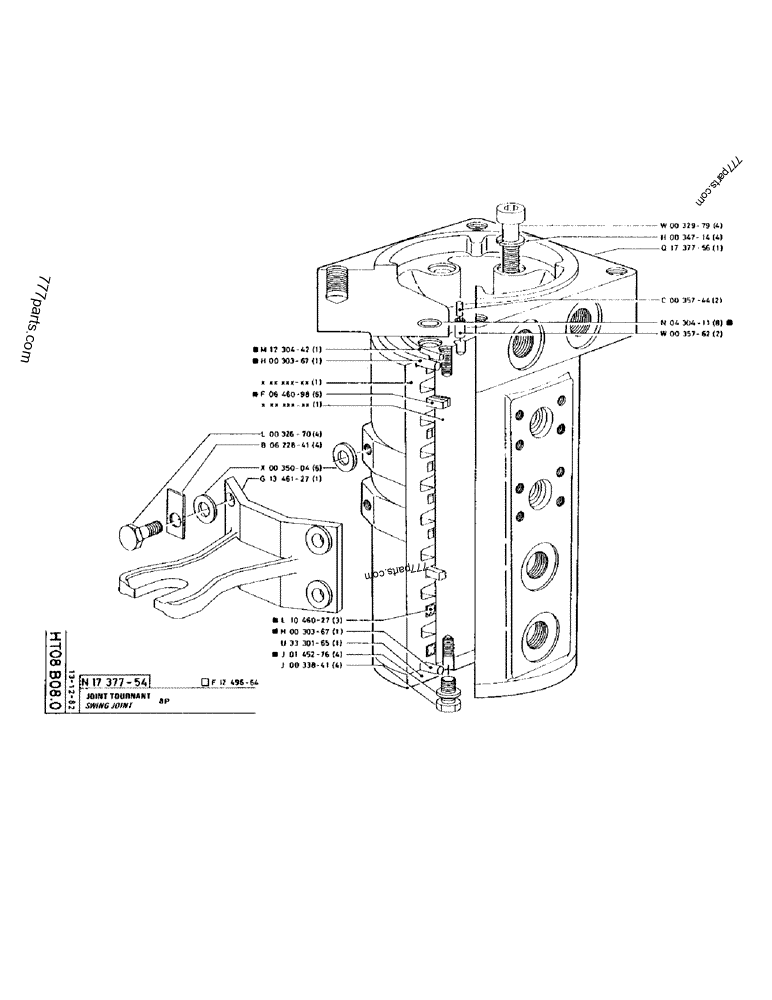

Part diagram SWING JOINT 8P - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
M1230442 M1***42 O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro 1
H0030367 H3***67 O-RING 1
F0646098 F6***98 COMPOSITE SEAL 6
L0032670 NLS NO LONGER SERVICED 4
B0622841 B6***41 BRAKE 4
X0035004 X3***04 WASHER 6
G1346127 G1***27 SUPPORT 1
L1046027 L1***27 SEAL,126.37mm ID x 140.35mm OD x 6.99mm Thk; SEALRING 3
H0030367 H3***67 O-RING 1
U3330165 U3***65 WASHER 1
J0145276 J1***76 SEAL 4
J0033841 30***89 BOLT,M12 x 1.75 x 35mm, Cl 8.8 4
F1249664 F1***64 SEAL PACKAGE
W0032979 W3***79 SCREW,Hex Skt Hd, M14 x 80mm 4
H0034714 H3***14 WASHER 4
Q1737756 Q1***56 HEAD 1
C0035744 C3***44 SPLIT PIN/SAFETY PIN 2
N0430411 N4***11 O-RING 8
W0035762 W3***62 SPLIT PIN/SAFETY PIN 2
