Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / UPPERSTRUCTURE ELECTRIC CIRCUIT

Select section

Subsection

Unit

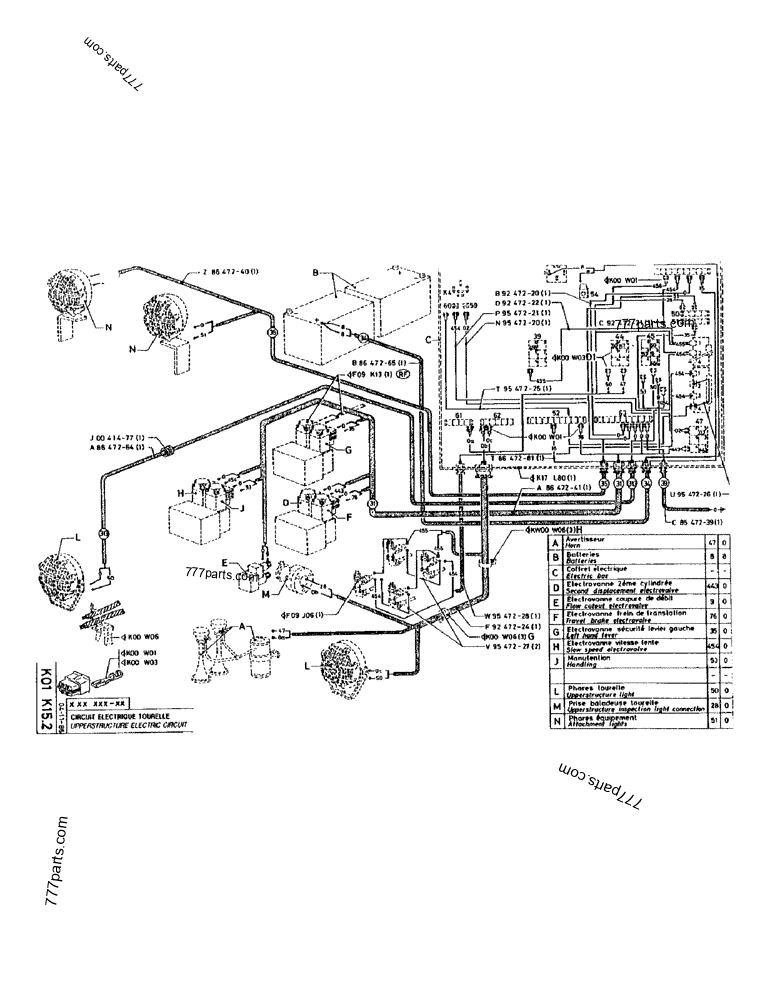

Part diagram UPPERSTRUCTURE ELECTRIC CIRCUIT - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
Z8647240 Z8***40 HARNESS 1
J0041477 J4***77 GROMMET 1
A8647264 A8***64 CABLE 1
K0000W06 KW***06
K0000W01 KW***01
K0000W03 KW***03
B8647265 B8***65 CABLE 1
F0009K13 F9***13 1
W9547228 W9***28 CABLE 1
F9247224 F9***24 HARNESS 1
K0000W06 KW***06 3
V9547227 V9***27 ELECTRICAL WIRE; WIRE 2
B9247220 B9***20 ELECTRICAL WIRE; WIRE 1
D9247222 D9***22 ELECTRICAL WIRE; WIRE 1
P9547221 P9***21 ELECTRICAL WIRE; WIRE 1
N9547220 N9***20 ELECTRICAL WIRE; WIRE 1
T9547225 T9***25 ELECTRICAL WIRE; WIRE 1
K0000W01 KW***01
K0017L80 K1***80 1
A8647241 A8***41 HARNESS 1
K0W00W06 KW***06 3
K0000W01 KW***01
C9247221 C9***21 ELECTRICAL WIRE; WIRE 1
U9547226 U9***26 ELECTRICAL WIRE; WIRE 1
C8547239 C8***39 CABLE 1
F0009J06 F9***06 1
