Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / LUBRICATION CIRCUIT ON STICK 3,20M

Select section

Subsection

Unit

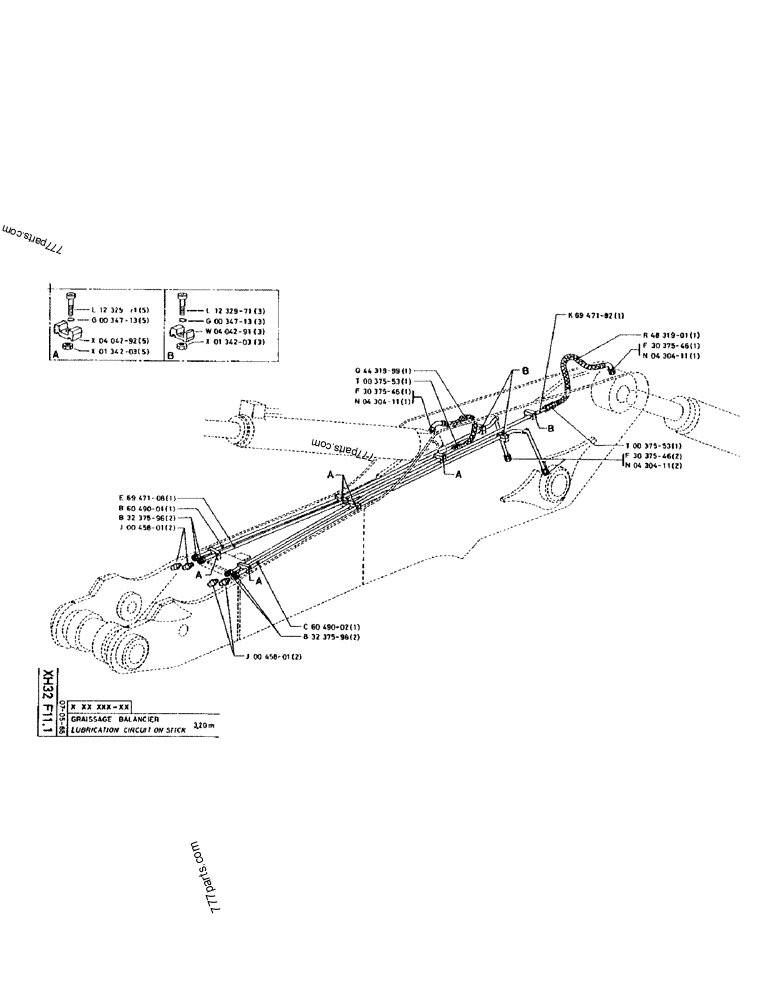

Part diagram LUBRICATION CIRCUIT ON STICK 3,20M - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
L1232971 L1***71 SCREW,Hex Skt Hd, M12 x 30mm, Cl 10.9 5
G0034713 G3***13 WASHER 5
X0404292 X4***92 SHIN 5
X0134203 33***75 NUT,M12, Cl 10 5
L1232971 L1***71 SCREW,Hex Skt Hd, M12 x 30mm, Cl 10.9 3
G0034713 G3***13 WASHER 3
W0404291 W4***91 SHIN 3
X0134203 33***75 NUT,M12, Cl 10 3
Q4431999 Q4***99 HOSE 1
T0037553 T3***53 UNION 1
F3037546 F3***46 UNION 1
N0430411 N4***11 O-RING 1
E6947108 E6***08 PIPE 1
B6049001 B6***01 PIPE 1
B3237596 B3***96 END FITTING 2
J0045801 J4***01 LUBE NIPPLE,M8 x 1.25 2
K6947182 K6***82 PIPE 1
R4831901 R4***01 HOSE 1
F3037546 F3***46 UNION 1
N0430411 N4***11 O-RING 1
T0037553 T3***53 UNION 1
F3037546 F3***46 UNION 2
N0430411 N4***11 O-RING 2
C6049002 C6***02 PIPE 1
B3237596 B3***96 END FITTING 2
J0045801 J4***01 LUBE NIPPLE,M8 x 1.25 2
