Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / LOCKING DOORIN OPEN POSITION

Select section

Subsection

Unit

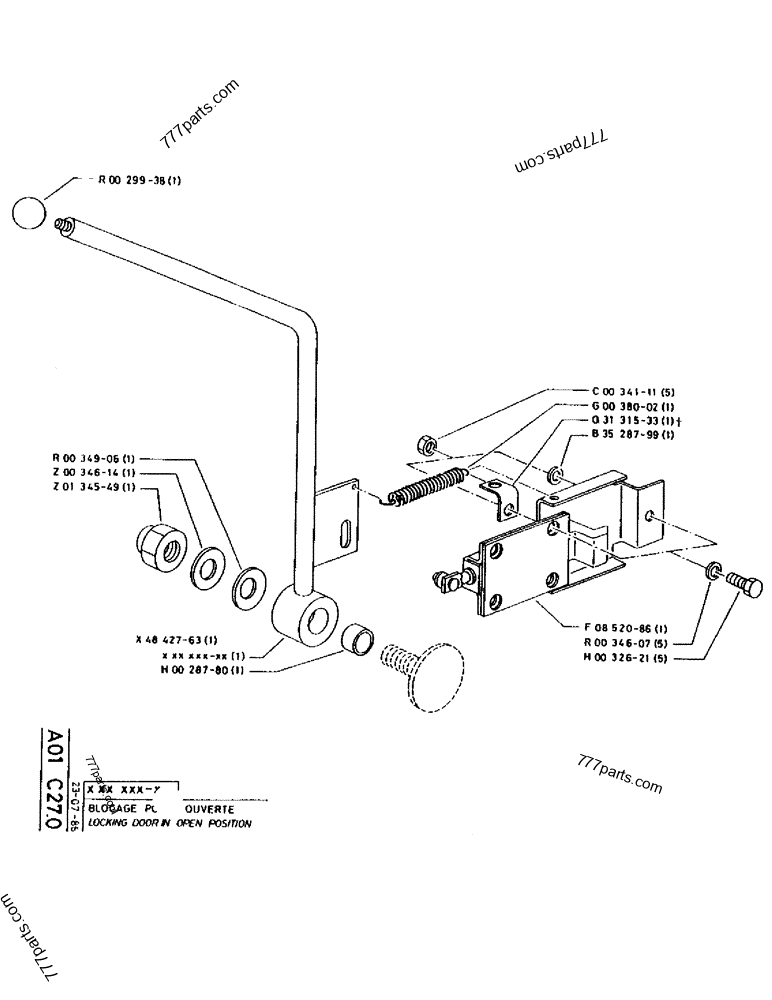

Part diagram LOCKING DOORIN OPEN POSITION - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
R0029938 P2***38 BALL KNOB 1
R0034906 R3***06 RUBBER WASHER 1
Z0034614 Z3***14 WASHER 1
Z0134549 Z1***49 NUT 1
X4842763 X4***63 CONTROL LEVER 1
H0028780 H2***80 SELF LUB RING 1
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 5
G0038002 G3***02 COIL SPRING 1
Q3131533 Q3***33 ANGLE BAR 1
B3528799 B3***99 WASHER 1
F0852086 F8***86 LOCK ASSY 1
R0034607 R3***07 WASHER 5
H0032621 86***68 BOLT,Hex, M6 x 1 x 16mm, Cl 8.8 5
