Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / COOLER

Select section

Subsection

Unit

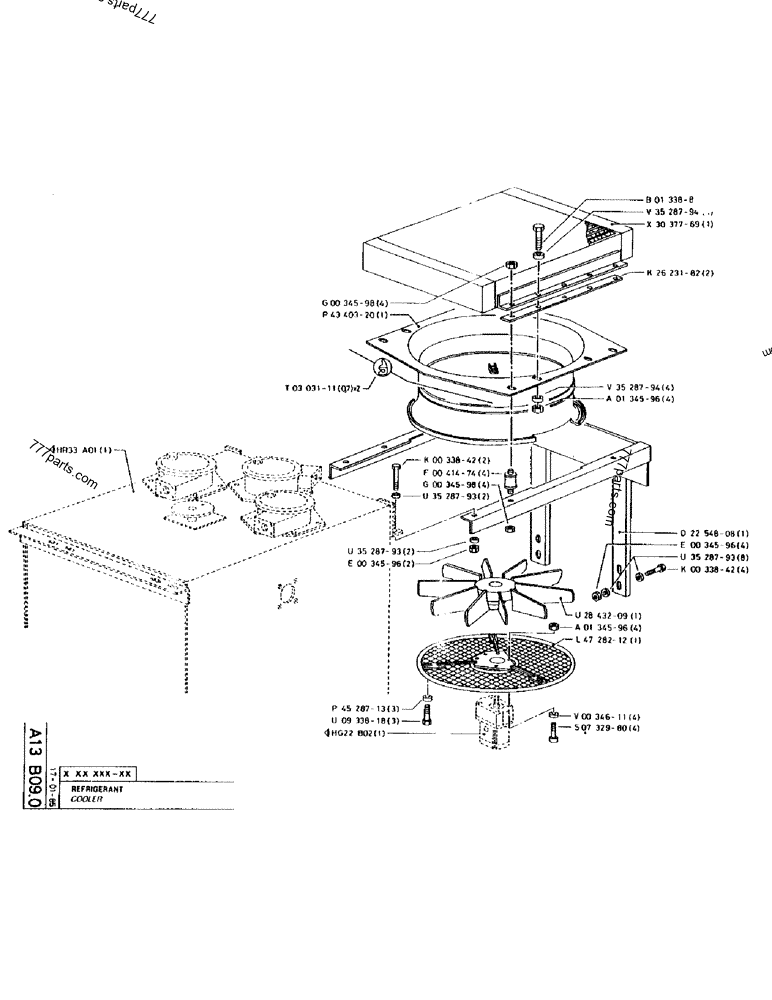

Part diagram COOLER - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
H0R33A01 HR***01 1
G0034598 G3***98 SAFETY NUT 4
P4340320 P4***20 ORIFICE RING 1
T0303111 T3***11 GASKET
K0033842 K3***42 SCREW 2
F0041474 F4***74 DAMPER,40mm OD x 78mm L 4
G0034598 G3***98 SAFETY NUT 4
U3528793 U3***93 WASHER 2
E0034596 E3***96 SAFETY NUT; C|CASE : CHAIN - PART NOT LONGER AVAILABLE ....... 1 NLS POCLAIN : SAFETY NUT - ORDER THE REFERENCE ....... 1 412126 2
P4528713 P4***13 WASHER 3
U0933818 12***12 BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd 3
H0G22B02 HG***02 1
B0013388 B1***88
V3528794 V3***94 WASHER
X3037769 X3***69 COOLER ASSY. 1
K2623182 K2***82 PLATE 2
V3528794 V3***94 WASHER 4
A0134596 A1***96 SAFETY NUT 4
D2254808 D2***08 SUPPORT 1
E0034596 E3***96 SAFETY NUT; C|CASE : CHAIN - PART NOT LONGER AVAILABLE ....... 1 NLS POCLAIN : SAFETY NUT - ORDER THE REFERENCE ....... 1 412126 4
U3528793 U3***93 WASHER 8
K0033842 K3***42 SCREW 4
U2843209 U2***09 FAN 1
A0134596 A1***96 SAFETY NUT 4
L4728212 L4***12 SIEVE 1
V0034611 V3***11 WASHER 4
S0732980 S7***80 SCREW 4
