Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / UNDERCARRIAGE 170CK

Select section

Subsection

Unit

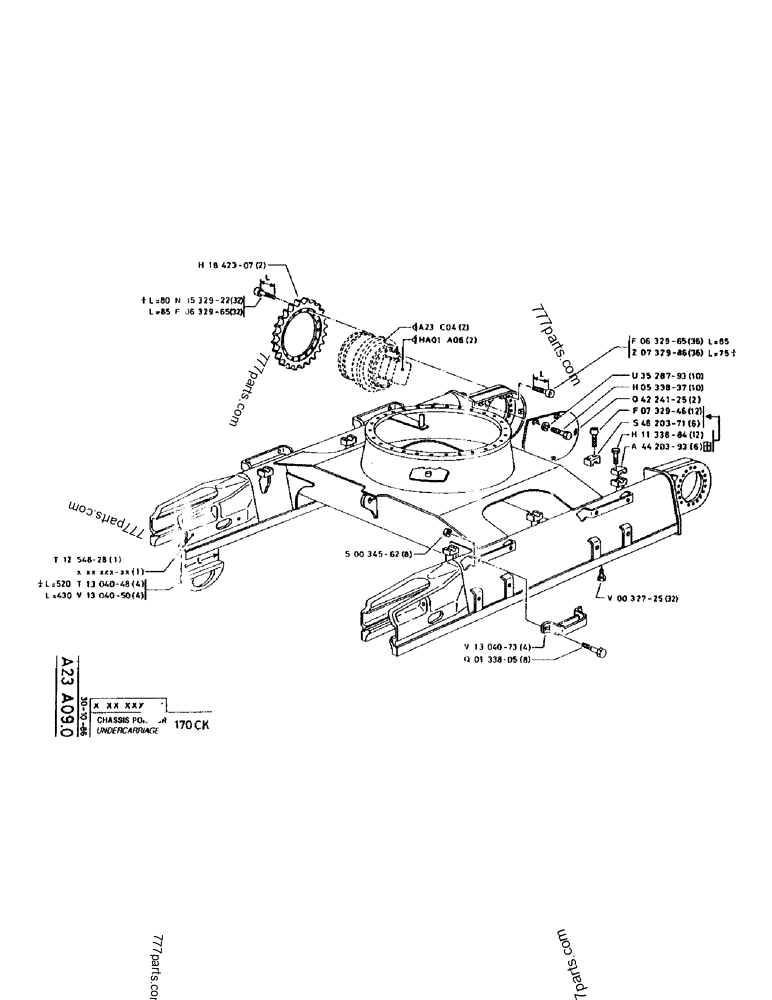

Part diagram UNDERCARRIAGE 170CK - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
H1842307 H1***07 WHEEL GEAR 2
N0532922 N5***22 SCREW 32
F0632965 F6***65 SCREW 32
T1254828 T1***28 CHASSIS 1
T1304048 T1***48 WEB 4
V1304050 V1***50 WEB 4
A0023C04 A2***04 2
H0A01A06 HA***06 2
S0034562 S3***62 SAFETY NUT 8
V1304073 V1***73 STEP 4
Q0133805 12***91 SCREW,Hex, M16 x 60mm, Cl 8.8 8
F0632965 F6***65 SCREW 36
Z0732986 Z7***86 SCREW 36
U3528793 U3***93 WASHER 10
H0533837 86***41 BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8 10
Q4224125 Q4***25 HOOD 2
F0732946 F7***46 SCREW 12
S4620371 S4***71 CAP 6
H1133884 H1***84 SCREW 12
A4420393 A4***93 CAP 6
V0032725 V3***25 SCREW 32
