Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / ENGINE EXHAUST AND SUCTION

Select section

Subsection

Unit

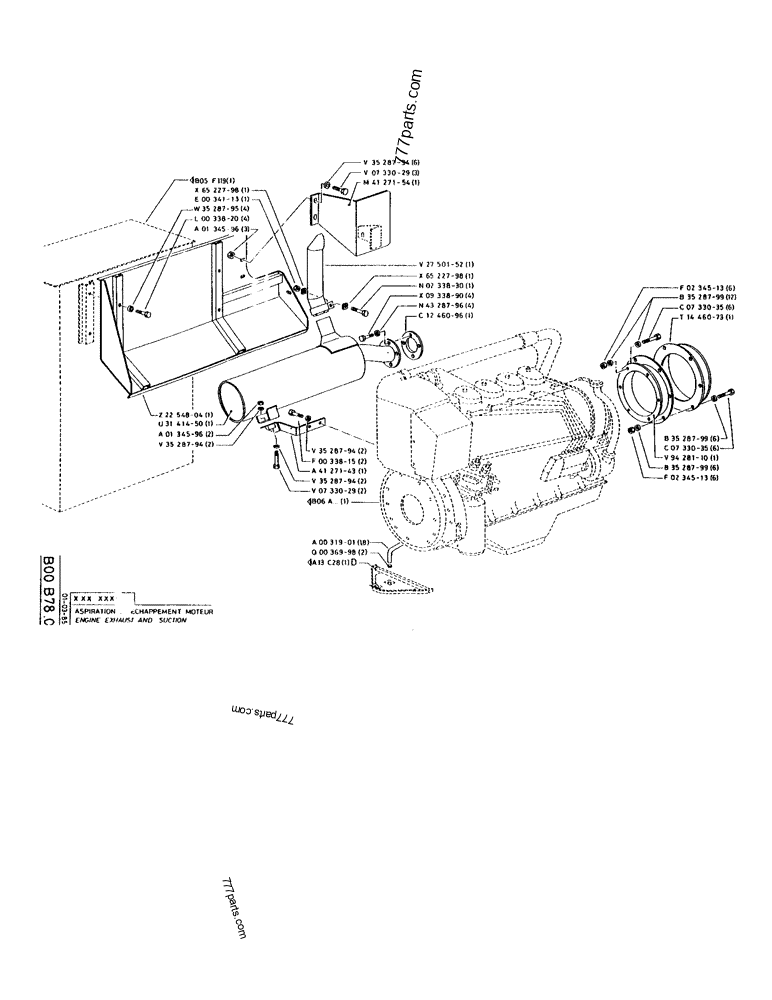

Part diagram ENGINE EXHAUST AND SUCTION - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
B005F119 B5***19 1
X6522798 X6***98 PLATE 1
E0034113 43***62 NUT,M8 x 1.25, Cl 10 1
W3528795 W3***95 WASHER 4
L0033820 32***29 BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8 4
A0134596 A1***96 SAFETY NUT 3
Z2254804 Z2***04 DEFLECTOR 1
U3141450 U3***50 MUFFLER 1
A0134596 A1***96 SAFETY NUT 2
V3528794 V3***94 WASHER 2
V3528794 V3***94 WASHER 6
V0733029 43***28 BOLT,M8 x 1.25 x 30mm, Cl 8.8 3
M4127154 M4***54 PROTECTOR 1
V2750152 V2***52 PIPE, EXHAUST SYSTEM; PIPE, EXHAUST 1
X6522798 X6***98 PLATE 1
N0233830 12***06 BOLT,M8 x 1.25 x 45.45mm, Cl 8.8 1
X0933890 43***40 BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8 4
N4328796 N4***96 WASHER 4
C1246096 C1***96 GASKET 1
V3528794 V3***94 WASHER 2
F0033815 43***27 BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8 2
A4127143 A4***43 SUPPORT 1
V3528794 V3***94 WASHER 2
V0733029 43***28 BOLT,M8 x 1.25 x 30mm, Cl 8.8 2
B000006A B6A 1
A0031901 A3***01 HYDRAULIC HOSE
Q0036998 Q3***98 COLLAR CLAMP 2
A0013C28 A1***28 1
F0234513 F2***13 SAFETY NUT 6
B3528799 B3***99 WASHER 12
C0733035 86***89 BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8 6
T1446073 T1***73 SEAL, RUBBER; RUBBER SEAL 1
B3528799 B3***99 WASHER 6
C0733035 86***89 BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8 6
V9428110 V9***10 ENGINE VENT SLEEVE 1
B3528799 B3***99 WASHER 6
F0234513 F2***13 SAFETY NUT 6
