Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / ENGINE CRANKCASE BF6L 913C

Select section

Subsection

Unit

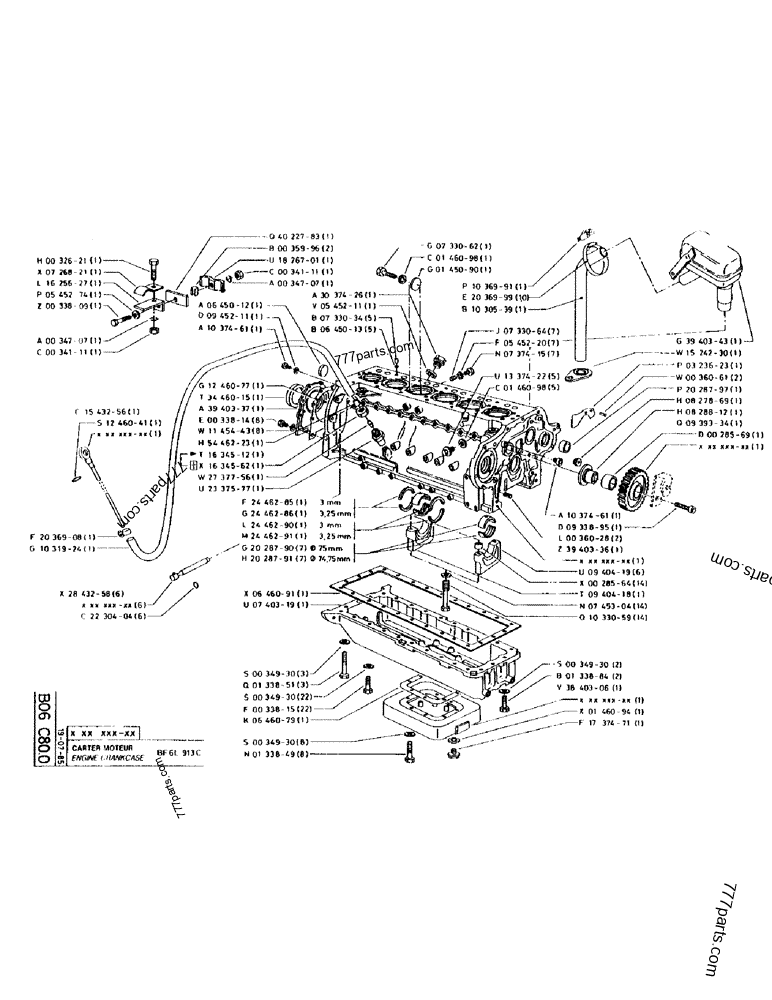

Part diagram ENGINE CRANKCASE BF6L 913C - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
H0032621 86***68 BOLT,Hex, M6 x 1 x 16mm, Cl 8.8 1
X0726821 X7***21 CLAMP 1
L1625627 L1***27 ANGLE 1
P0545274 P5***74 WASHER 1
Z0033809 12***00 BOLT,M6 x 20mm, Cl 8.8 1
A0034707 A3***07 WASHER 1
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 1
C1543256 C1***56 GAUGE 1
S1246041 S1***41 GASKET 1
F2036908 F2***08 CLAMP 1
G1031924 G1***24 PIPE 1
X2843258 X2***58 JET 6
C2230404 C2***04 O-RING 6
Q4022783 Q4***83 PLATE 1
B0035996 B3***96 BUSHING 2
U1826701 U1***01 SHIN 1
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 1
A0034707 A3***07 WASHER 1
A0645012 A6***12 HOLE PLUG BUTTON 1
D0945211 D9***11 COPPER SEAL 1
A1037461 A1***61 PLUG 1
G1246077 G1***77 GASKET 1
T3446015 T3***15 GASKET 1
A3940337 A3***37 COVER 1
E0033814 12***04 BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8 8
W1145443 W1***43 WASHER 8
H5446223 H5***23 BUSHING 1
T1634512 T1***12 NUT 1
X1634562 X1***62 NUT 1
W2737756 W2***56 BUSHING 1
U2337577 U2***77 FITTING 1
F2446285 F2***85 STOP 1
G2446286 G2***86 STOP 1
L2446290 L2***90 STOP 1
M2446291 M2***91 STOP 1
G2028790 G2***90 BEARING LINER 7
H2028791 H2***91 HALF-BUSHING; HALF BUSH 7
X0646091 X6***91 GASKET 1
U0740319 U7***19 HOUSING 1
S0034930 S3***30 RUBBER WASHER 3
Q0133851 Q1***51 SCREW 3
S0034930 S3***30 RUBBER WASHER 22
F0033815 43***27 BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8 22
K0646079 K6***79 GASKET 1
S0034930 S3***30 RUBBER WASHER 8
N0133849 81***80 BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8 8
A3037426 A3***26 PLUG 1
V0545211 V5***11 COPPER SEAL 1
B0733034 B7***34 SCREW 5
B0645013 B6***13 HOLE PLUG BUTTON 5
G0733062 G7***62 SCREW 1
C0146098 C1***98 GASKET 1
G0145090 G1***90 BOSS 1
P1036991 P1***91 CLAMP 1
E2036999 E2***99 TAPE
B1030539 B1***39 PIPE 1
J0733064 J7***64 SCREW 7
F0545220 F5***20 COPPER SEAL 7
N0737415 N7***15 PLUG 7
U1337422 U1***22 PLUG 5
C0146098 C1***98 GASKET 5
A1037461 A1***61 PLUG 1
D0933895 D9***95 SCREW,Hex Skt Hd, M10 x 60mm, Cl 10.9 1
L0036028 L3***28 SPLIT PIN/SAFETY PIN 2
Z3940336 Z3***36 HOUSING 1
U0940419 U9***19 CAP 6
X0028564 X2***64 BUSHING 14
T0940418 T9***18 CAP 1
N0745304 N7***04 WASHER 14
Q1033059 Q1***59 SCREW 14
S0034930 S3***30 RUBBER WASHER 2
B0133884 41***79 BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8 2
V3840306 V3***06 HOUSING 1
X0146094 X1***94 GASKET 1
F1737471 F1***71 PLUG 1
G3940343 G3***43 HOUSING 1
W1524230 W1***30 HOOD 1
P0323623 P3***23 LARGE PLATE; PLATE, LARGE 1
W0036061 W3***61 SPLIT PIN/SAFETY PIN 2
P2028797 P2***97 BUSHING 1
H0827869 H8***69 LUG 1
H0828812 H8***12 SUPPORT 1
Q0939334 Q9***34 PINION 1
D0028569 D2***69 BUSHING 1
