Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / ENGINE VENTILATION BF6L 913C

Select section

Subsection

Unit

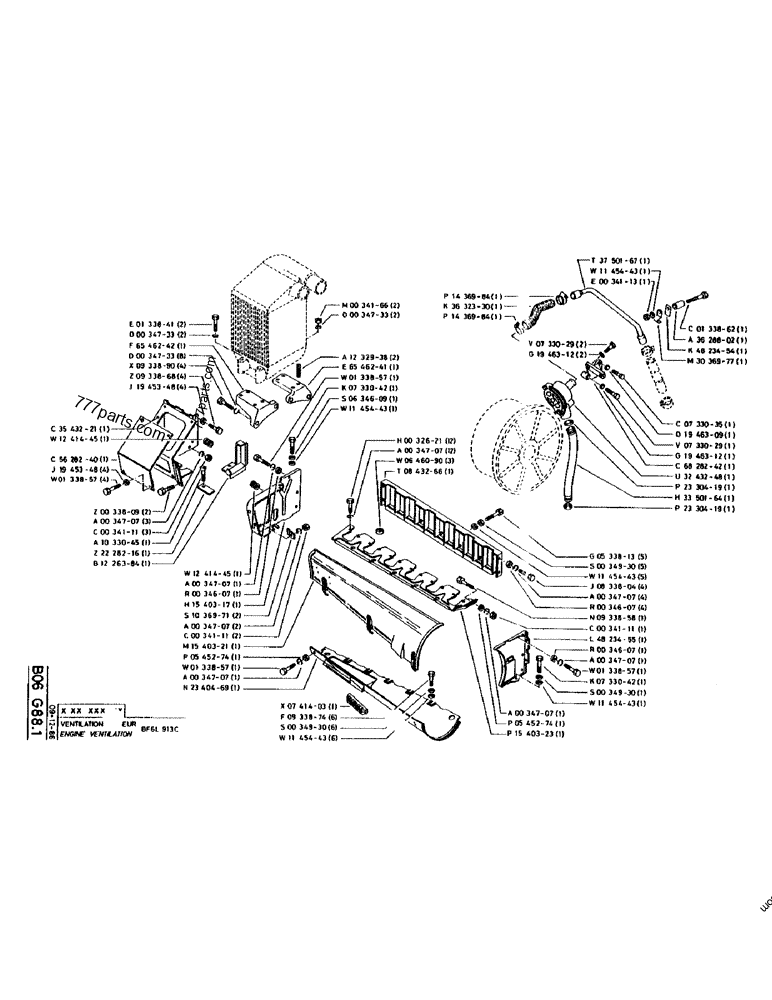

Part diagram ENGINE VENTILATION BF6L 913C - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
E0133841 81***85 BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8 2
D0034733 D3***33 WASHER 2
F6546242 F6***42 BRACKET 1
D0034733 D3***33 WASHER 8
X0933890 43***40 BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8 4
Z0933868 Z9***68 SCREW 4
J1945348 J1***48 WASHER 4
C3543221 C3***21 GUIDE 1
W1241445 W1***45 GROMMET 1
C5628240 C5***40 HOOD; SPARE PART 1
J1945348 J1***48 WASHER 4
W0133857 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 4
Z0033809 12***00 BOLT,M6 x 20mm, Cl 8.8 2
A0034707 A3***07 WASHER 3
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 3
A1033045 A1***45 SCREW 1
Z2228216 Z2***16 HOOD 1
B1226384 B1***84 HOOD; SPARE PART 1
W1241445 W1***45 GROMMET 1
A0034707 A3***07 WASHER 1
R0034607 R3***07 WASHER 1
H1540317 H1***17 HOOD 1
S1036971 S1***71 FIXING BRACKET 2
A0034707 A3***07 WASHER 2
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 2
M1540321 M1***21 HOUSING 1
P0545274 P5***74 WASHER 1
W0133857 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 1
A0034707 A3***07 WASHER 1
N2340469 N2***69 LIGHT FAIRING 1
M0034166 10***16 NUT,M10 x 1.5, Cl 8 2
D0034733 D3***33 WASHER 2
A1232938 A1***38 SCREW 2
E6546241 E6***41 BRACKET 1
W0133857 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 1
K0733042 K7***42 SCREW 1
S0634609 S6***09 WASHER 1
W1145443 W1***43 WASHER 1
H0032621 86***68 BOLT,Hex, M6 x 1 x 16mm, Cl 8.8 12
A0034707 A3***07 WASHER 12
W0646090 W6***90 GASKET 3
T0843266 T8***66 DIFFUSER 1
X0741403 X7***03 INSULATOR BLOCK; RUBBER BLOCK 1
F0933874 F9***74 SCREW 6
S0034930 S3***30 RUBBER WASHER 6
W1145443 W1***43 WASHER 6
P1436984 P1***84 CLAMP 1
K3632330 K3***30 TUBE; SPARE PART 1
P1436984 P1***84 CLAMP 1
V0733029 43***28 BOLT,M8 x 1.25 x 30mm, Cl 8.8 2
G1946312 G1***12 WASHER 2
G0533813 16***24 BOLT,Hex, M8 x 16mm, Cl 8.8 5
S0034930 S3***30 RUBBER WASHER 5
W1145443 W1***43 WASHER 5
J0833804 J8***04 SCREW 4
A0034707 A3***07 WASHER 4
R0034607 R3***07 WASHER 4
N0933858 N9***58 SCREW 1
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 1
L4823455 L4***55 HOOD 1
R0034607 R3***07 WASHER 1
A0034707 A3***07 WASHER 1
W0133857 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 1
K0733042 K7***42 SCREW 1
S0034930 S3***30 RUBBER WASHER 1
W1145443 W1***43 WASHER 1
A0034707 A3***07 WASHER 1
P0545274 P5***74 WASHER 1
P1540323 P1***23 HOOD 1
T3750167 T3***67 LINE 1
W1145443 W1***43 WASHER 1
E0034113 43***62 NUT,M8 x 1.25, Cl 10 1
C0133862 C1***62 SCREW,M8 x 70mm 1
A3628802 A3***02 SPACER; SPARE PART 1
K4823454 K4***54 LARGE PLATE; SPARE PART 1
M3036977 M3***77 CLAMP 1
C0733035 86***89 BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8 1
D1946309 D1***09 WASHER 1
V0733029 43***28 BOLT,M8 x 1.25 x 30mm, Cl 8.8 1
G1946312 G1***12 WASHER 1
C6828242 C6***42 SUPPORT 1
U3243248 U3***48 VALVE 1
P2330419 P2***19 GASKET; SPARE PART 1
H3350164 H3***64 PIPE; SPARE PART 1
P2330419 P2***19 GASKET; SPARE PART 1
