Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92))

CRAWLER EXCAVATORS Case 170
/case/170/m80/s-231.html / No Description / SUPPLEMENTARY VALVE BANK HYDRAULIC CIRCUIT

Select section

Subsection

Unit

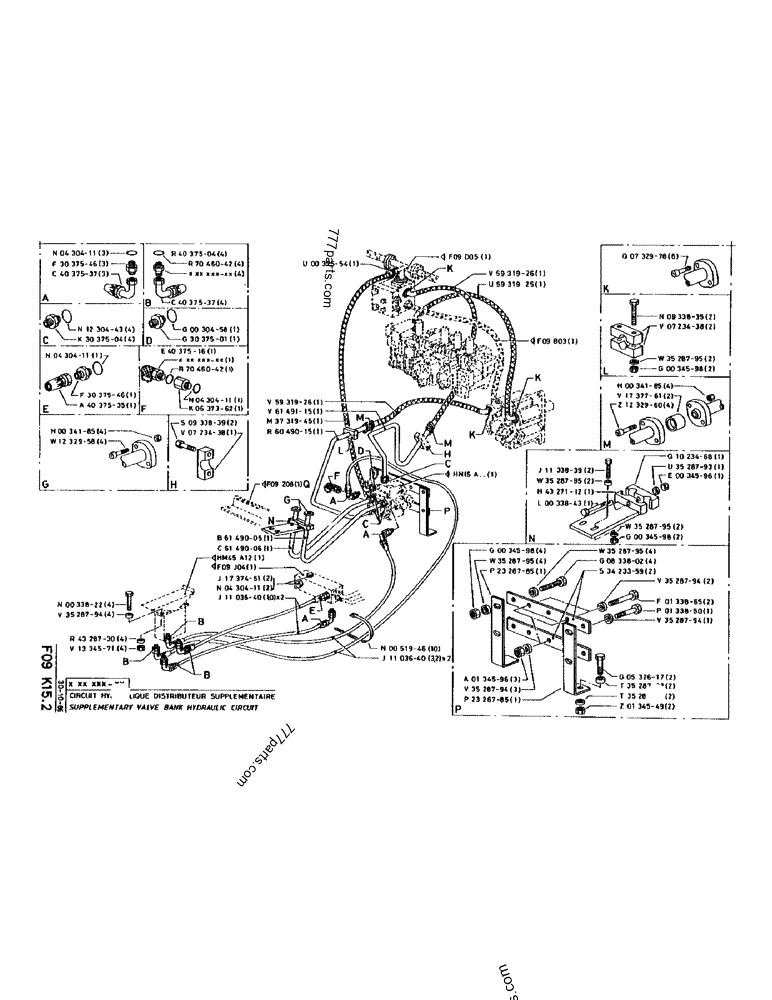

Part diagram SUPPLEMENTARY VALVE BANK HYDRAULIC CIRCUIT - CRAWLER EXCAVATORS Case 170 (POCLAIN CRAWLER EXCAVATOR (S/N 12341 TO 12492) (5/85-12/92)) | 777parts.com
# Part No. Description Qty
N0430411 N4***11 O-RING 3
F3037546 F3***46 UNION 3
C4037537 C4***37 END FITTING 3
R4037504 R4***04 UNION 4
R7046042 R7***42 GASKET 4
C4037537 C4***37 END FITTING 4
N1230443 N1***43 O-RING,23.47MM ID x 2.62MM OD 4
K3037504 K3***04 UNION 4
G0030458 G3***58 O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro 1
G3037501 G3***01 UNION 1
N0430411 N4***11 O-RING 1
F3037546 F3***46 UNION 1
A4037535 A4***35 END FITTING 1
E4037516 E4***16 MAKING-UP 1
R7046042 R7***42 GASKET 1
N0430411 N4***11 O-RING 1
K0637362 K6***62 RESTRICTOR 1
H0034185 43***62 NUT,M8 x 1.25, Cl 10 4
W1232958 W1***58 BOLT,M8 x 45mm, Cl 10.9 4
S0933839 97***04 BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8 2
V0723438 V7***38 SHIN 1
Q0732978 P0***8Q SCREW 6
N0933835 43***44 BOLT,Hex, M10 x 70mm, Cl 8.8 2
V0723438 V7***38 SHIN 2
W3528795 W3***95 WASHER 2
G0034598 G3***98 SAFETY NUT 2
H0034185 43***62 NUT,M8 x 1.25, Cl 10 4
V1737761 V1***61 JUNCTION 2
Z1232960 Z1***60 SCREW 4
J1133839 J1***39 SCREW 2
W3528795 W3***95 WASHER 2
H4327112 H4***12 SUPPORT 1
L0033843 97***17 BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8 1
Q1023468 Q1***68 SHIN 1
U3528793 U3***93 WASHER 1
E0034596 E3***96 SAFETY NUT; C|CASE : CHAIN - PART NOT LONGER AVAILABLE ....... 1 NLS POCLAIN : SAFETY NUT - ORDER THE REFERENCE ....... 1 412126 1
W3528795 W3***95 WASHER 2
G0034598 G3***98 SAFETY NUT 2
G0034598 G3***98 SAFETY NUT 4
W3528795 W3***95 WASHER 4
P2326785 P2***85 LARGE PLATE; PLATE, LARGE 1
A0134596 A1***96 SAFETY NUT 3
V3528794 V3***94 WASHER 3
P2326785 P2***85 LARGE PLATE; PLATE, LARGE 1
W3528795 W3***95 WASHER 4
G0833802 12***13 BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd 4
S3423359 S3***59 PLATE 2
V3528794 V3***94 WASHER 2
F0133865 12***61 BOLT,Hex, M8 x 60mm L, Cl 8.8 2
P0133850 P1***50 SCREW 1
V3528794 V3***94 WASHER 1
G0532617 G5***17 SCREW 2
T35287?2 T3***?2 2
T3528? T3***8? 2
Z0134549 Z1***49 NUT 2
U0037554 U3***54 UNION 1
V5931926 V5***26 HOSE 1
V6149115 V6***15 PIPE 1
M3731945 M3***45 HOSE 1
R6049015 R6***15 PIPE 1
F0009Z08 F9***08 1
B6149005 B6***05 PIPE 1
C6149006 C6***06 PIPE 1
H0M45A12 HM***12 1
F0009J04 F9***04 1
J1737451 J1***51 PLUG 2
N0430411 N4***11 O-RING 2
J1103640 J1***40 PIPE
N0033822 43***30 BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8 4
V3528794 V3***94 WASHER 4
R4328730 R4***30 WASHER 4
V1334571 V1***71 NUT 4
F0009D05 F9***05 1
V5931926 V5***26 HOSE 1
U5931925 U5***25 HOSE 1
F0009B03 F9***03 1
H000N15A HN***5A 1
N0051946 PN***46 COLLAR 10
J1103640 J1***40 PIPE
