Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / VALVE BANK SM 15

Select modification

Select section

Subsection

Unit

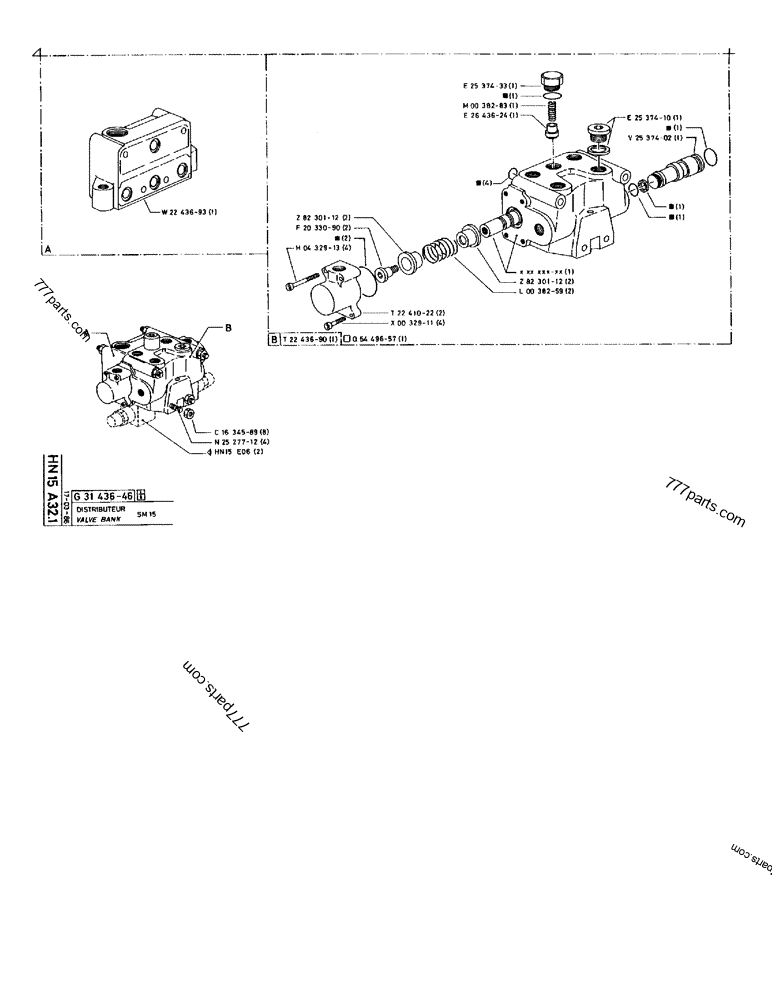

Part diagram VALVE BANK SM 15 - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
W2243693 W2***93 ELEMENT 1
Z8230112 Z8***12 CUPEL 2
F2033090 F2***90 SCREW 2
H0432913 H4***13 SCREW 4
T2243690 T2***90 DISTRIBUTOR 1
T2241022 T2***22 CASE 2
X0032911 86***15 HEX SOC SCREW,M6 x 20mm, Cl 8.8 4
Q5449657 Q5***57 SEAL KIT 1
E2537433 E2***33 PLUG 1
M0038283 M3***83 SPRING 1
E2643624 E2***24 VALVE POPPET 1
Z8230112 Z8***12 CUPEL 2
L0038259 L3***59 SPRING 2
E2537410 E2***10 PLUG 1
V2537402 V2***02 BLANK-OFF PLUG 1
C1634589 C1***89 NUT 8
N2527712 N2***12 TRUSS ROD 4
HN15E06 HN***06 2
