Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / SELECTOR S 27

Select modification

Select section

Subsection

Unit

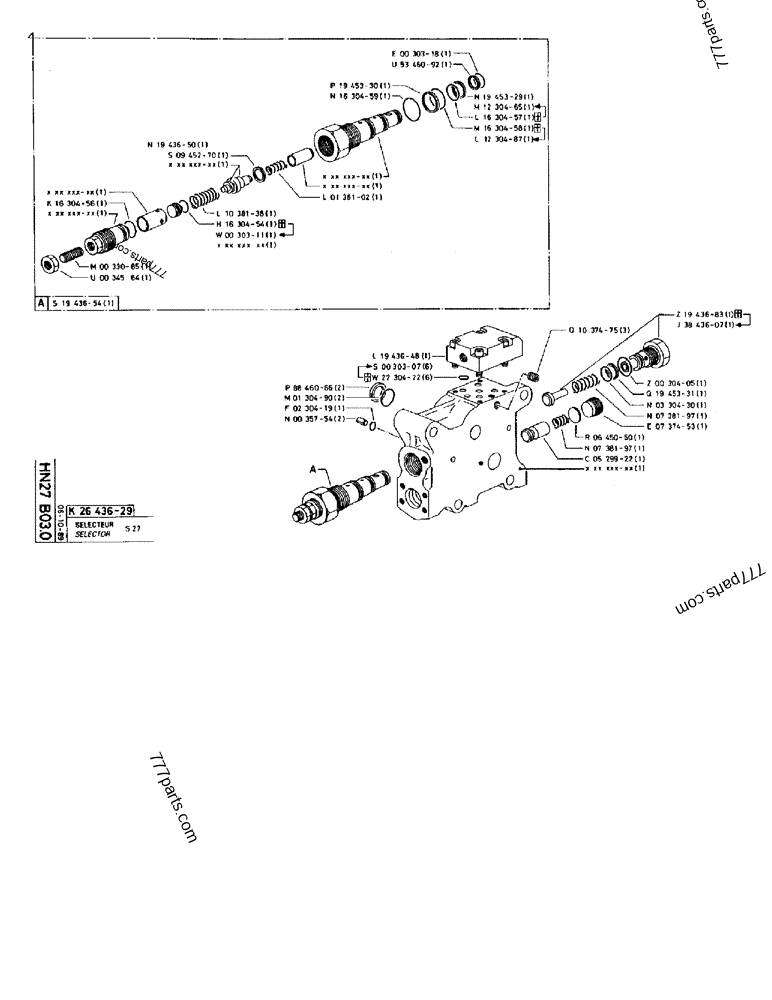

Part diagram SELECTOR S 27 - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
K1630456 K1***56 O-RING 1
M0033085 M3***85 SET SCREW,Hex Skt, M16 x 2 x 40mm 1
U0034564 U3***64 NUT 1
S1943654 S1***54 CARTRIDGE 1
N1943650 N1***50 VALVE POPPET 1
S03945270 S9***70 WASHER, SEALING; SEAL WASHER 1
L1038138 L1***38 COMPRESSION SPRING 1
H1630454 H1***54 O-RING 1
W0030311 W3***11 O-RING 1
P1945330 P1***30 BACK-UP RING 1
N1630459 N1***59 GASKET 1
L0138102 L1***02 COMPRESSION SPRING 1
E0030318 P3***18 O-RING 1
U5346092 U5***92 RING 1
N1945329 N1***29 RING 1
M1230465 M1***65 O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro 1
L1630457 L1***57 HYDRAULIC SWIVEL 1
M1630458 M1***58 HYDRAULIC SWIVEL 1
L1230487 L1***87 O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro 1
P8846066 P8***66 BACK-UP RING 2
M0130490 M1***90 O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro 2
F0230419 F2***19 O-RING 1
N0035754 N3***54 SPLIT PIN/SAFETY PIN 2
L1943648 L1***48 VALVE 1
S0030307 S3***07 O-RING; C|CASE : SEAL - PART NOT LONGER AVAILABLE ....... 1 NLS POCLAIN : O-RING - ORDER THE REFERENCE ....... 1 PS30307 6
W2230422 W2***22 O-RING 6
Q1037475 Q1***75 PLUG 3
R0645050 R6***50 HOLE PLUG BUTTON 1
N0738197 N7***97 COMPRESSION SPRING 1
C0529922 C5***22 VALVE 1
Z1943683 Z1***83 VALVE 1
J3843607 J3***07 VALVE POPPET 1
Z0030405 Z3***05 O-RING 1
Q1945331 Q1***31 OIL SEAL 1
N0330430 N3***30 O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro 1
N0738197 N7***97 COMPRESSION SPRING 1
E0737453 E7***53 PLUG 1
