Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / RELIEF VALVE WITH OVERSETTING S27

Select modification

Select section

Subsection

Unit

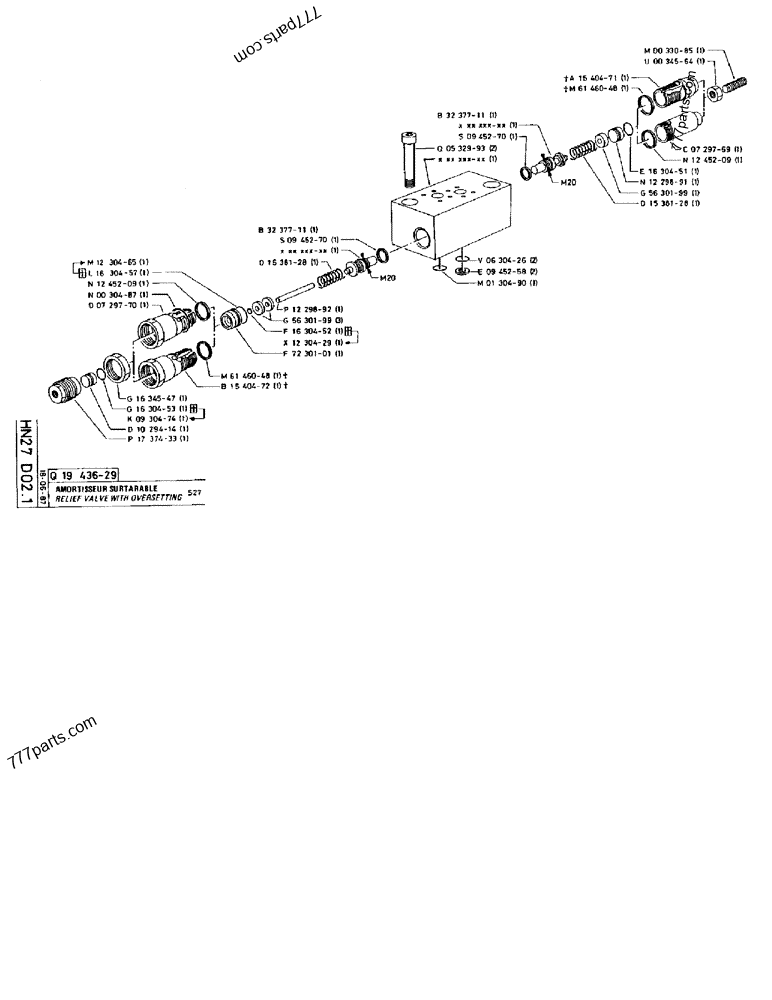

Part diagram RELIEF VALVE WITH OVERSETTING S27 - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
M1230465 M1***65 O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro 1
L1630457 L1***57 HYDRAULIC SWIVEL 1
N1245209 N1***09 SEAL,25mm ID x 30mm OD x 2mm Thk 1
N0030487 N3***87 O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro 1
D0729770 D7***70 CAP 1
G1634547 G1***47 LOCK NUT 1
G1630453 G1***53 O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro 1
K0930474 K9***74 O-RING 1
D1029414 D1***14 PISTON 1
P1737433 P1***33 PLUG 1
B3237711 B3***11 VALVE POPPET 1
S0945270 S9***70 WASHER, SEALING; SEAL WASHER 1
D1538128 D1***28 SPRING 1
P1229892 P1***92 TAPPET 1
G5630199 G5***99 STOP 3
F1630452 F1***52 HYDRAULIC SWIVEL 1
X1230429 X1***29 O-RING 1
F7230101 F7***01 GUIDE 1
M6146048 M6***48 GASKET 1
B1540472 B1***72 CAP 1
B3237711 B3***11 VALVE POPPET 1
S0945270 S9***70 WASHER, SEALING; SEAL WASHER 1
Q0532993 Q5***93 SCREW 2
V0630426 V6***26 O-RING 2
E0945258 E9***58 BACK-UP RING 2
M0130490 M1***90 O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro 1
A1540471 A1***71 CAP 1
M6146048 M6***48 GASKET 1
M0033085 M3***85 SET SCREW,Hex Skt, M16 x 2 x 40mm 1
U0034564 U3***64 NUT 1
C0729769 C7***69 CAP 1
N1245209 N1***09 SEAL,25mm ID x 30mm OD x 2mm Thk 1
E1630451 E1***51 O-RING 1
N1229891 N1***91 TAPPET 1
G5630199 G5***99 STOP 1
D1538128 D1***28 SPRING 1
