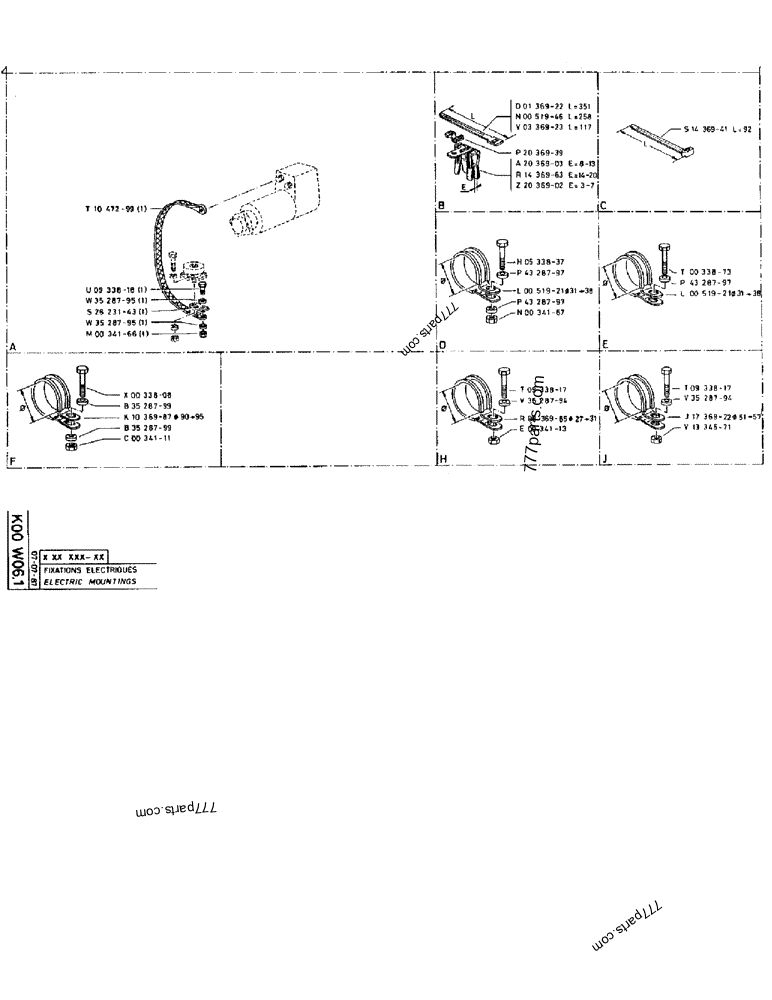

Part diagram ELECTRIC MOUNTINGS - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
T1047299 T1***99 NEG BATTERY CABLE 1
U0933818 12***12 BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd 1
W3528795 W3***95 WASHER 1
S2623143 S2***43 PLATE 1
W3528795 W3***95 WASHER 1
M0034166 10***16 NUT,M10 x 1.5, Cl 8 1
D0136922 PD***22 COLLAR
N0051946 PN***46 COLLAR
V0336923 V3***23 CLAMP
P2036939 PP***39 CLASP
A2036903 A2***03 CLASP
R1436963 R1***63 CLASP
Z2036902 Z2***02 CLASP
S1436941 S1***41 MOUNTING CLIP
H0533837 86***41 BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
P4328797 P4***97 WASHER
L0051921 L5***21 CLAMP
P4328797 P4***97 WASHER
N0034167 33***75 NUT,M12, Cl 10
T0033873 30***88 BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8
P4328797 P4***97 WASHER
L0051921 L5***21 CLAMP
X0033808 12***01 BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
B3528799 B3***99 WASHER
K1036987 K1***87 CLAMP
B3528799 B3***99 WASHER
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10
T0933817 J9***27 BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9
V3528794 V3***94 WASHER
R0836985 R8***85 CLAMP
E0034113 43***62 NUT,M8 x 1.25, Cl 10
T0933817 J9***27 BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9
V3528794 V3***94 WASHER
J1736922 J1***22 CLAMP
V1334571 V1***71 NUT
