Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / UPPERSTRUCTURE ELECTRIC CABINET

Select modification

Select section

Subsection

Unit

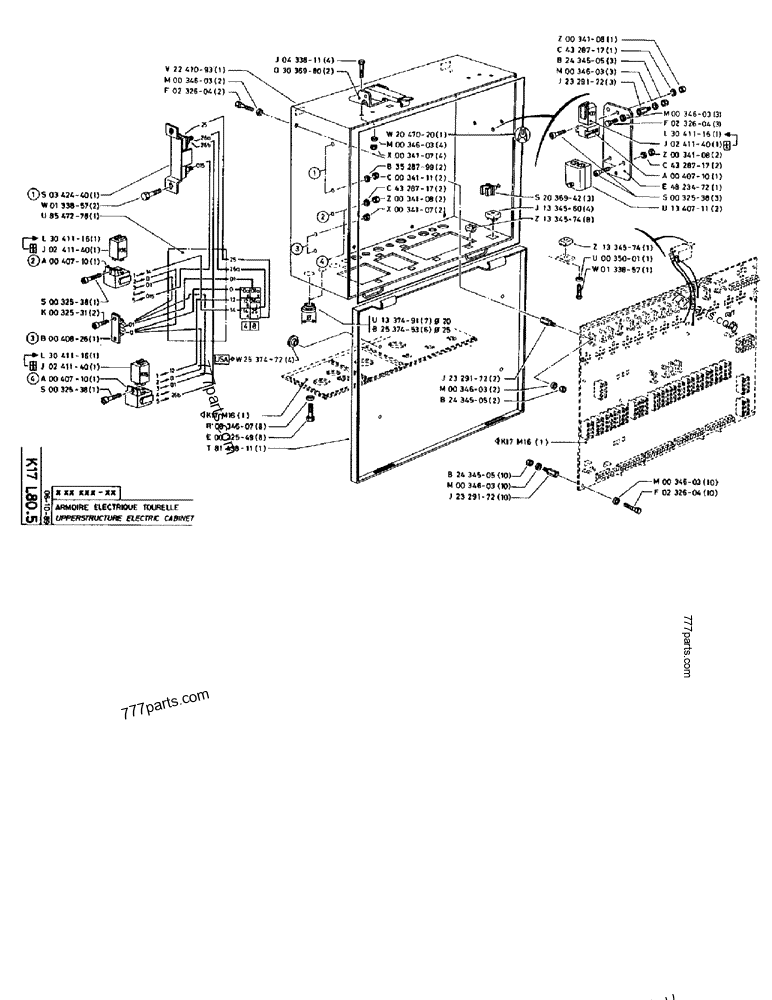

Part diagram UPPERSTRUCTURE ELECTRIC CABINET - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
S0342440 S3***40 RESISTOR 1
W0133857 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 2
U8547278 U8***78 HARNESS 1
L3041116 L3***16 RELAY,24V, 20A 1
J0241140 J2***40 RELAY 1
A0040710 A4***10 KIT; C|POCLAIN ORDER/CDER/BESTELLE ....... 1 D128322 CASE ORDER/CDER/BESTELLE ....... 1 CASA40710 1
S0032538 S3***38 SCREW,Sltd Truss Hd, M5 x 16 1
K0032531 K3***31 SCREW,Hex, M4 x 20, 3.6; C|FORTSCHRITT (NEUSTADT) ....... 1 NLS POCLAIN ORDER/CDER/BESTELLE ....... 1 PK32531 2
B0040826 B4***26 SLIDER 1
L3041116 L3***16 RELAY,24V, 20A 1
J0241140 J2***40 RELAY 1
A0040710 D1***22 RELAY 1
S0032538 S3***38 SCREW,Sltd Truss Hd, M5 x 16 1
V2241093 V2***93 CONTROL PANEL 1
M0034603 M3***03 WASHER 2
F0232604 F2***04 SCREW 2
W2537472 W2***72 PLASTIC PLUG 4
K17M16 K1***16 1
R0034607 R3***07 WASHER 8
E0032549 E3***49 SCREW,Hex, M6 x 16mm 8
T8143811 T8***11 DOOR 1
J0433811 J4***11 SCREW 4
Q3036980 Q3***80 FASTENER 2
W2047020 W2***20 WINDOW FRAME 1
M0034603 M3***03 WASHER 4
X0034107 82***04 NUT,M4, Cl 8 4
B3528799 B3***99 WASHER 2
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 2
C4328717 C4***17 WASHER 2
Z0034108 Z3***08 NUT 2
X0034107 82***04 NUT,M4, Cl 8 2
U1337491 U1***91 PLASTIC PLUG 7
B2537453 B2***53 PLASTIC PLUG 6
J2329172 J2***72 SPACER 2
M0034603 M3***03 WASHER 2
B2434505 B2***05 SAFETY NUT 2
B2434505 B2***05 SAFETY NUT 10
M0034603 M3***03 WASHER 10
J2329172 J2***72 SPACER 10
Z0034108 Z3***08 NUT 1
C4328717 C4***17 WASHER 1
B2434505 B2***05 SAFETY NUT 3
M0034603 M3***03 WASHER 3
J2329172 J2***72 SPACER 3
S2036942 S2***42 SUPPORT 3
J1334560 J1***60 NUT 4
Z1334574 Z1***74 NUT 8
Z1334574 Z1***74 NUT 1
U0035001 U3***01 WASHER 1
W0133857 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 1
K17M16 K1***16 1
M0034603 M3***03 WASHER 3
F0232604 F2***04 SCREW 3
L3041116 L3***16 RELAY,24V, 20A 1
J0241140 J2***40 RELAY 1
Z0034108 Z3***08 NUT 2
C4328717 C4***17 WASHER 2
A0040710 A4***10 KIT; C|POCLAIN ORDER/CDER/BESTELLE ....... 1 D128322 CASE ORDER/CDER/BESTELLE ....... 1 CASA40710 1
E4823472 E4***72 LARGE PLATE; PLATE, LARGE 1
S0032538 S3***38 SCREW,Sltd Truss Hd, M5 x 16 3
U1340711 U1***11 CASE 2
M0034603 M3***03 WASHER 10
F00232604 F2***04 SCREW 10
