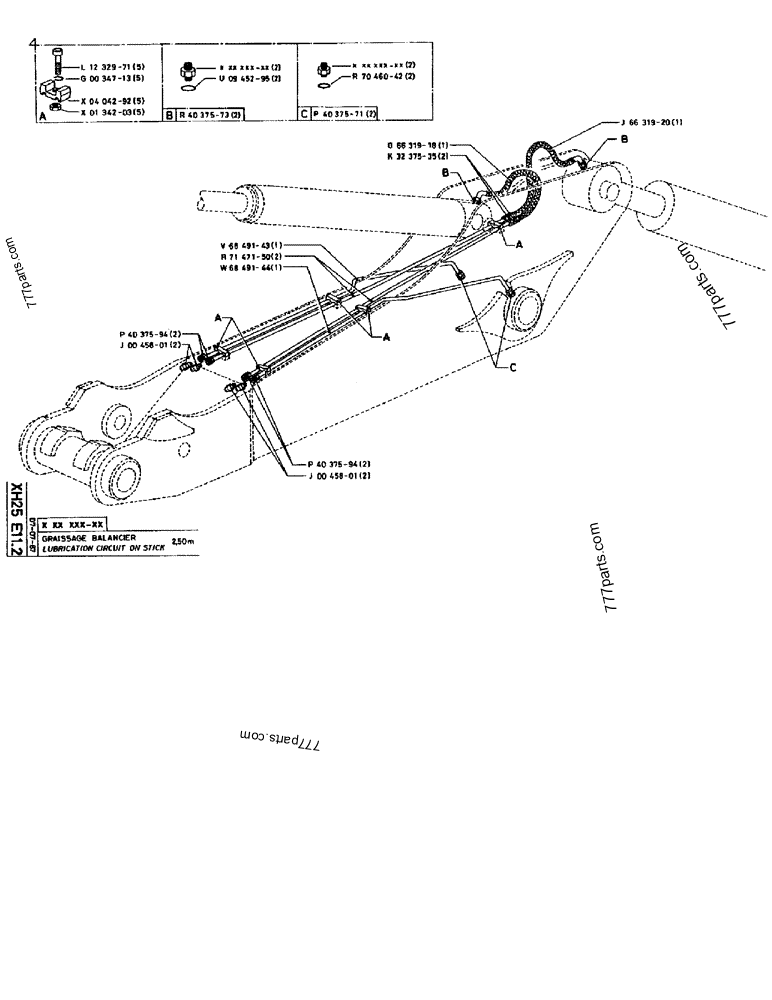

Part diagram LUBRICATION CIRCUIT ON STICK 2,50M - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
L1232971 L1***71 SCREW,Hex Skt Hd, M12 x 30mm, Cl 10.9 5
G0034713 G3***13 WASHER 5
X0404292 X4***92 SHIN 5
X0134203 33***75 NUT,M12, Cl 10 5
U0945295 U9***95 GASKET 2
R4037573 R4***73 UNION 2
R7046042 R7***42 GASKET 2
P4037571 P4***71 UNION 2
P4037594 P4***94 END FITTING 2
J0045801 J4***01 LUBE NIPPLE,M8 x 1.25 2
V6849143 V6***43 PIPE 1
R7147150 R7***50 PIPE 2
W6849144 W6***44 PIPE 1
P4037594 P4***94 END FITTING 2
J0045801 J4***01 LUBE NIPPLE,M8 x 1.25 2
G6631918 G6***18 HOSE 1
K3237535 K3***35 UNION 2
J6631920 J6***20 HOSE 1
