Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / FITTED CAB

Select modification

Select section

Subsection

Unit

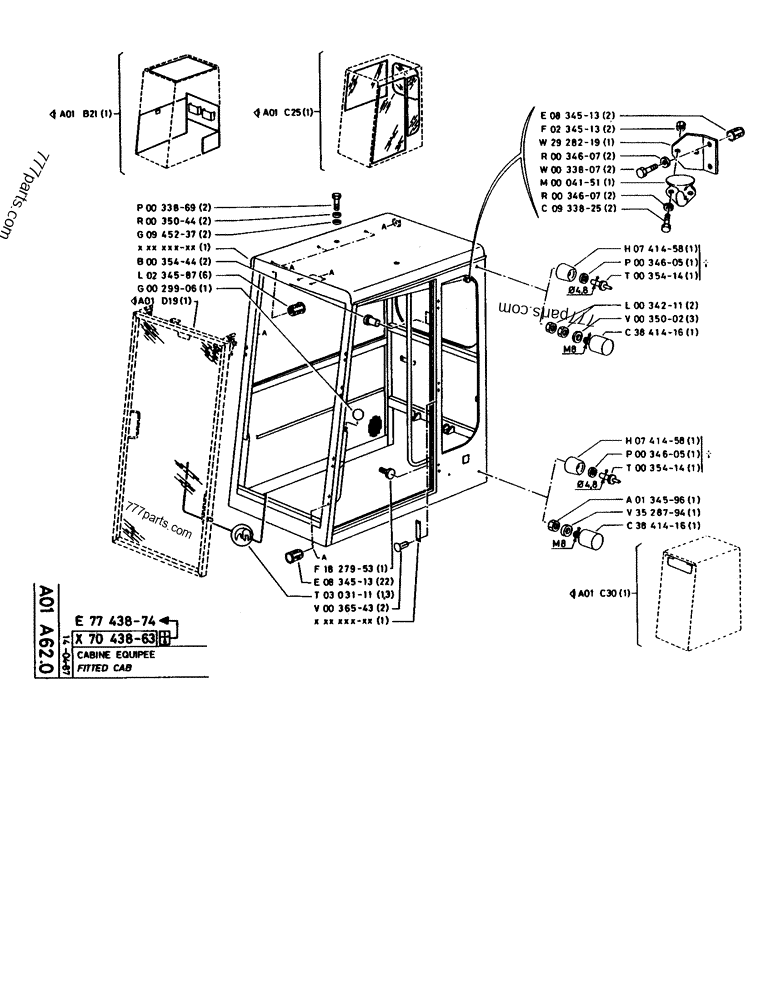

Part diagram FITTED CAB - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
A1B21 A1***21 1
P0033869 86***97 BOLT,Hex, M30 x 14mm, Cl 8.8 2
R0035044 R3***44 WASHER 2
G0945237 G9***37 WASHER 2
B0035444 B3***44 RIVET 2
L0234587 L2***87 NUT 6
G0029906 G2***06 BALL KNOB 1
A1D19 A1***19 1
A1C25 A1***25 1
F1827953 F1***53 PIN 1
E0834513 E8***13 RIVET 22
T0303111 T3***11 GASKET
V0036543 P0***3V HEADLESS PIN 2
E0834513 E8***13 RIVET 2
F0234513 F2***13 SAFETY NUT 2
W2928219 W2***19 SUPPORT 1
R0034607 R3***07 WASHER 2
W0033807 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 2
M0004151 M4***51 COAT HOOK 1
R0034607 R3***07 WASHER 2
C0933825 C9***25 SCREW,Hex, M6 x 18mm 2
H0741458 H7***58 STOP 1
P0034605 P3***05 WASHER 1
T0035414 T3***14 RIVET; C|CASE : SHOVEL - ORDER THE REFERENCE ....... 1 248520A1 POCLAIN : RIVET - PART NOT LONGER AVAILABLE ....... 1 NLS 1
L0034211 L3***11 NUT,M8 2
V0035002 71***R1 RING 3
C3841416 C3***16 STOP 1
H0741458 H7***58 STOP 1
P0034605 P3***05 WASHER 1
T0035414 24***A1 SWEEP 1
A0134596 A1***96 SAFETY NUT 1
V3528794 V3***94 WASHER 1
C3841416 C3***16 STOP 1
A1C30 A1***30 1
A1C27 A1***27 1
A1D20 A1***20 1
K13A23 K1***23 1
K13A24 K1***24 1
