Case 170B (CASE/POCLAIN EXCAVATOR - REHANDLING ATTACHMENT (1/85-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-233.html / No Description / CYLINDER 100X155 C1400

Select modification

Select section

Subsection

Unit

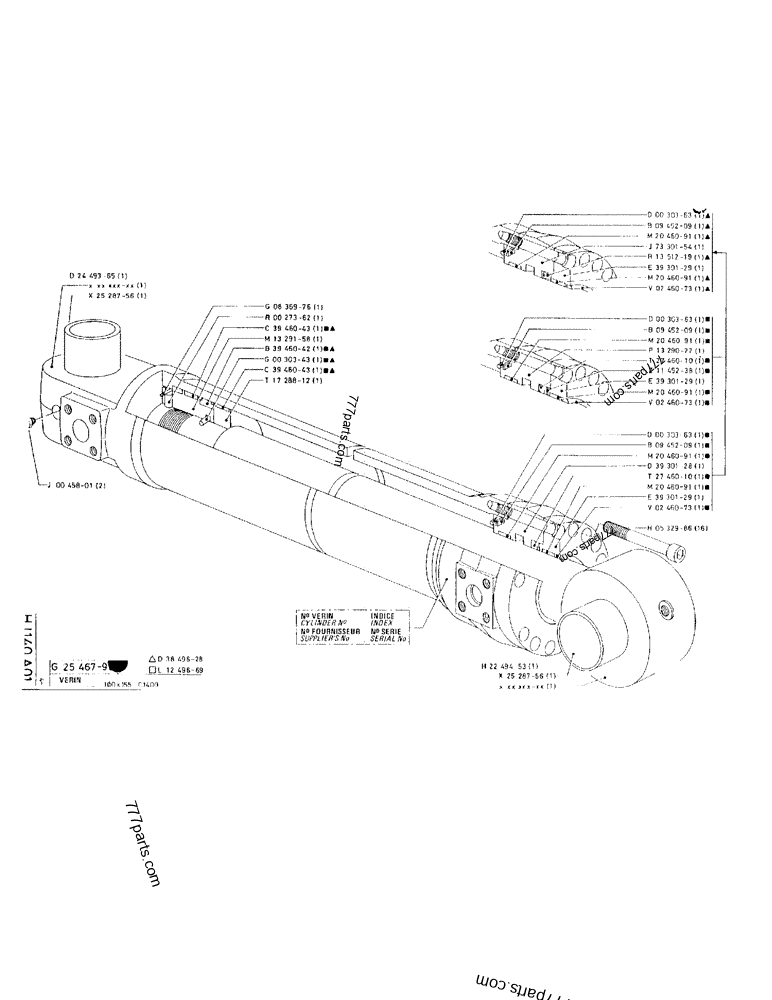

Part diagram CYLINDER 100X155 C1400 - CRAWLER EXCAVATORS Case 170B (CASE/POCLAIN EXCAVATOR - REHANDLING ATTACHMENT (1/85-12/89)) | 777parts.com
# Part No. Description Qty
D3***63 O-RING 1
B9***09 BACK-UP RING 1
M2***91 SEGMENT 1
J7***54 CYLINDER END CAP 1
R1***19 GASKET 1
E3***29 WASHER 1
M2***91 SEGMENT 1
V2***73 WIPER SEAL,100mm ID x 110mm OD x 10mm Thk 1
D3***63 O-RING 1
B9***09 BACK-UP RING 1
M2***91 SEGMENT 1
P1***22 CYLINDER END CAP 1
T2***10 GASKET 1
Z1***38 BACK-UP RING 1
E3***29 WASHER 1
M2***91 SEGMENT 1
V2***73 WIPER SEAL,100mm ID x 110mm OD x 10mm Thk 1
D3***63 O-RING 1
B9***09 BACK-UP RING 1
M2***91 SEGMENT 1
D3***28 CYLINDER END CAP 1
T2***10 GASKET 1
M2***91 SEGMENT 1
E3***29 WASHER 1
V2***73 WIPER SEAL,100mm ID x 110mm OD x 10mm Thk 1
H5***86 SCREW 16
H2***53 PISTON ROD 1
X2***56 BUSHING 1
XX***XX 1
G8***76 SPECIAL RING 1
R2***62 LARGE PIN; PIN, LARGE 1
C3***43 SEGMENT 1
M1***58 NUT 1
B3***42 GASKET 1
G3***43 O-RING 1
C3***43 SEGMENT 1
T1***12 WASHER 1
D2***65 JACK BODY 1
XX***XX 1
X2***56 BUSHING 1
J4***01 LUBE NIPPLE,M8 x 1.25 2
