Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / CAB DOOR

Select modification

Select section

Subsection

Unit

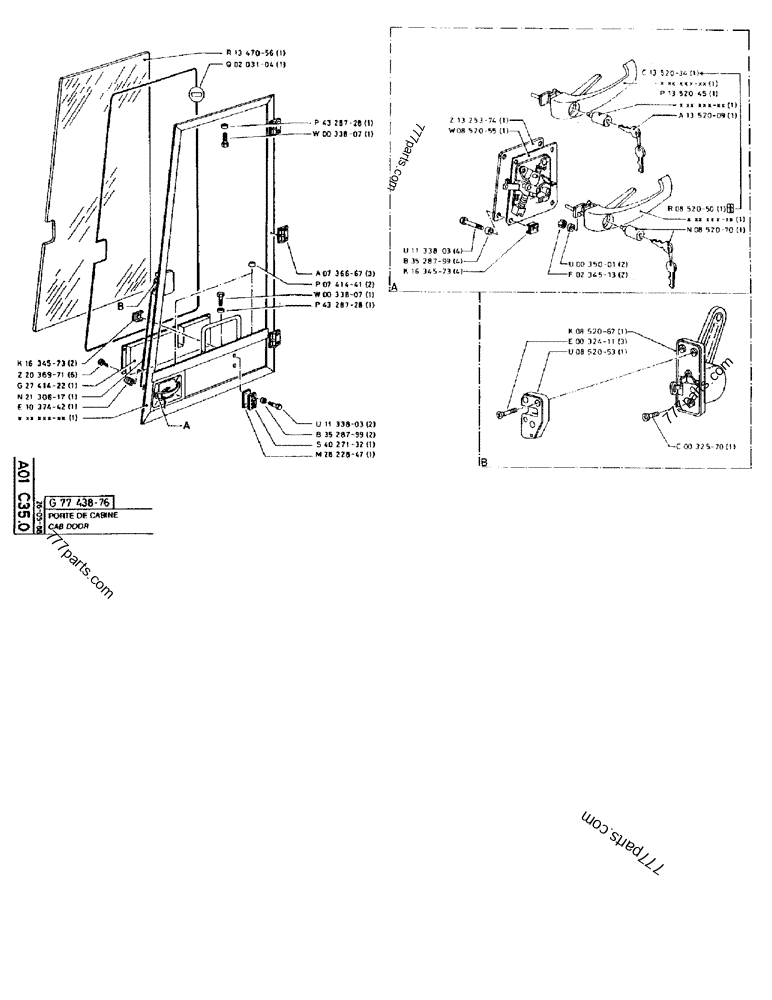

Part diagram CAB DOOR - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
Z1325374 Z1***74 DOOR COVER 1
W0852055 W8***55 MECHANISM 1
U1133803 U1***03 SCREW,Hex, M6 x 22 4
B3528799 B3***99 WASHER 4
K1634573 K1***73 NUT 4
U0035001 U3***01 WASHER 2
F0234513 F2***13 SAFETY NUT 2
C1352034 C1***34 HANDLE 1
P1352045 P1***45 LOCK, CYLINDER; LOCK-CYLINDER 1
A1352009 A1***09 SET OF 2 KEYS 1
R0852050 R8***50 HANDLE 1
N0852070 N8***70 LOCK, CYLINDER; LOCK-CYLINDER 1
K0852067 K8***67 MECHANISM 1
E0032411 P3***11 SCREW,Cross, M8 x 45, 10.9 3
U0852053 U8***53 CATCH PLATE 1
C0032570 C3***70 SCREW,M8 x 35mm, Cl 4.6 1
K1634573 K1***73 NUT 2
Z2036971 Z2***71 BUTTON 6
G2741422 G2***22 LARGE PLATE; PLATE, LARGE 1
N2130617 N2***17 THREADED ROD 1
E1037442 E1***42 BLANK-OFF PLUG 1
R1347056 R1***56 GLASS 1
Q0203104 Q2***04 PACKAGE, REPAIR 1
P4328728 P4***28 WASHER 1
W0033807 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 1
A0736667 A7***67 HINGE 3
P0741441 P7***41 SPACER 2
W0033807 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 1
P4328728 P4***28 WASHER 1
U1133803 U1***03 SCREW,Hex, M6 x 22 2
B3528799 B3***99 WASHER 2
S4027132 S4***32 CATCH PLATE 1
M2822847 M2***47 PLATE 1
