Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / UPPERSTRUCTURE

Select modification

Select section

Subsection

Unit

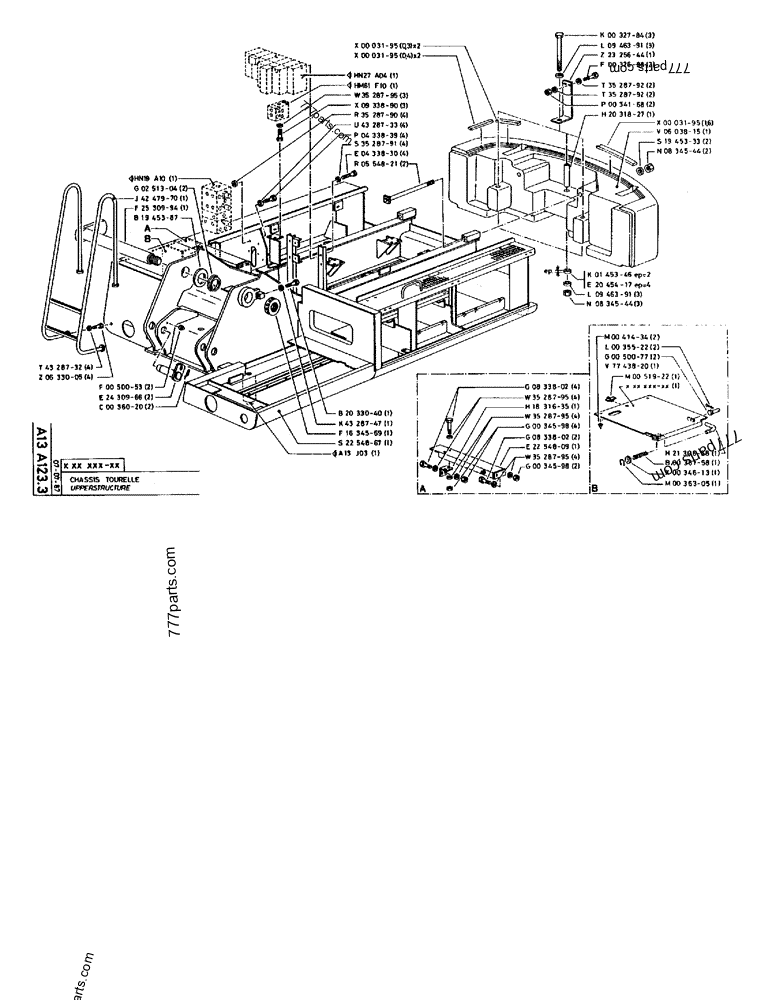

Part diagram UPPERSTRUCTURE - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
G0833802 12***13 BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd 4
W3528795 W3***95 WASHER 4
H1831635 H1***35 ANGLE 1
W3528795 W3***95 WASHER 4
G0034598 G3***98 SAFETY NUT 4
G0833802 12***13 BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd 2
E2254809 E2***09 CROSSBAR 1
W3528795 W3***95 WASHER 4
G0034598 G3***98 SAFETY NUT 2
M0041434 M4***34 STOP 2
L0035522 CA***22 SEAL 2
G0050077 G5***77 PIN 2
V7743820 V7***20 PANEL 1
M0051922 M5***22 LATCH 1
H2130658 H2***58 STEM 1
B0038158 B3***58 COMPRESSION SPRING 1
X0034613 X3***13 WASHER 1
M0036305 M3***05 RING, SNAP; RING SNAP 1
T4328732 T4***32 WASHER 4
Z0633005 Z6***05 SCREW 4
HN19A10 HN***10 1
G0251304 G2***04 GASKET 2
J4247970 J4***70 LADDER 1
F2530994 F2***94 PIN 1
B1945387 B1***87 WASHER
F0050053 F5***53 SHAFT LOCK 2
E2430966 E2***66 PIN 2
C0036020 C3***20 SPLIT PIN/SAFETY PIN 2
X0003195 X3***95 GASKET
X0003195 X3***95 GASKET
HN27A04 HN***04 1
HM61F10 HM***10 1
W3528795 W3***95 WASHER 3
X0933890 43***40 BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8 3
R3528790 R3***90 WASHER 4
U4328733 U4***33 WASHER 4
P0433839 P4***39 SCREW 4
S3528791 S3***91 WASHER 4
E0433830 E4***30 BOLT,Hex, M18 x 40 4
R0554821 R5***21 TRUSS ROD 2
B2033040 B2***40 SCREW 1
K4328747 K4***47 WASHER 1
F1634569 F1***69 NUT 1
S2254867 S2***67 CHASSIS 1
A13J03 A1***03 1
K0032784 K3***84 SCREW 3
L0946391 L9***91 WASHER 3
Z2325644 Z2***44 PLATE 1
F0032688 F3***88 SCREW 2
T3528792 T3***92 WASHER 2
P0034168 P3***68 NUT 2
H2031827 H2***27 TUBE 1
X0003195 X3***95 GASKET
V0603815 V6***15 BALANCER 1
V0603815 S1***33 WASHER 2
N0834544 N8***44 SAFETY NUT 2
K0145346 K1***46 WASHER
E2045417 E2***17 WASHER
E2045417 L9***91 WASHER 3
N0834544 N8***44 SAFETY NUT 3
