Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / SEAT

Select modification

Select section

Subsection

Unit

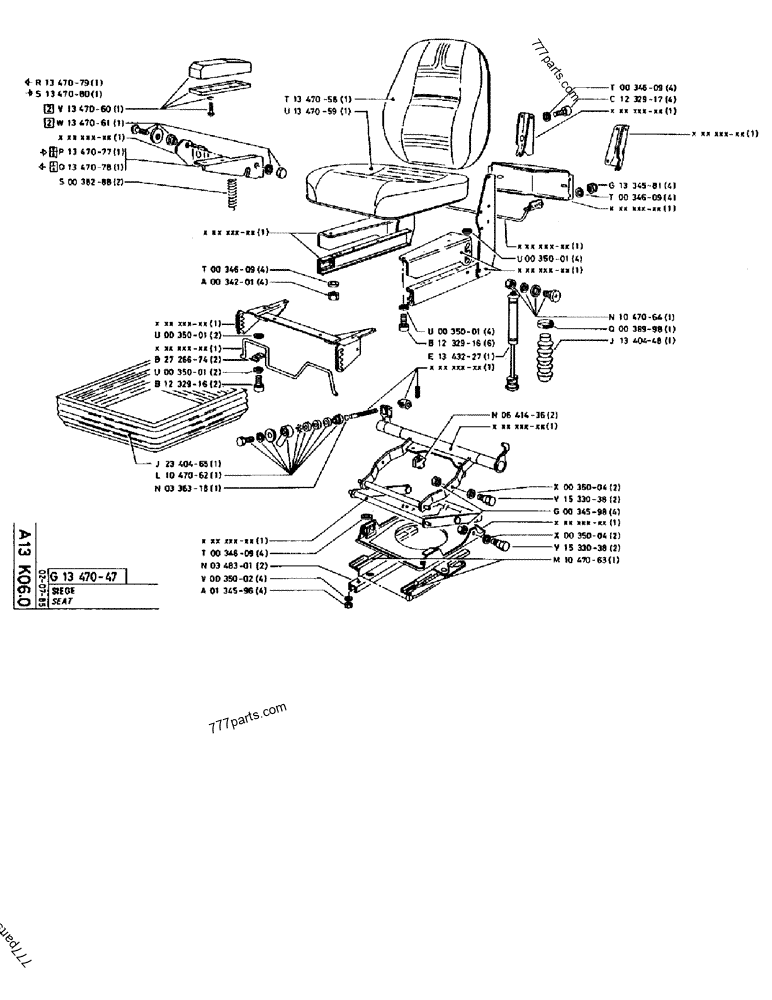

Part diagram SEAT - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
R1347079 R1***79 ARMREST 1
S1347080 S1***80 ARMREST 1
V1347060 V1***60 SPARE PART SET 1
W1347061 W1***61 SET OF PARTS 1
P1347077 P1***77 SUPPORT 1
Q1347078 Q1***78 SUPPORT 1
S0038288 S3***88 SPRING 2
T1347058 T1***58 BACKREST 1
U1347059 U1***59 CUSHION 1
T0034609 T3***09 WASHER 4
A0034201 96***82 NUT,5/16" - 18, Gr 5 4
U0035001 U3***01 WASHER 2
B2726674 B2***74 SUPPORT 2
U0035001 U3***01 WASHER 2
B1232916 B1***16 SCREW,1/4" x 19mm 2
J2340465 J2***65 BELLOWS 1
L1047062 L1***62 PAWL 1
N0336318 N3***18 RING, SNAP; RING SNAP 1
T0034609 T3***09 WASHER 4
N0348301 N3***01 BLOCK 2
V0035002 71***R1 RING 4
A0134596 A1***96 SAFETY NUT 4
U0035001 U3***01 WASHER 4
B1232916 B1***16 SCREW,1/4" x 19mm 6
E1343227 E1***27 SHOCK ABSORBER 1
U0035001 U3***01 WASHER 1
N0641436 N6***36 STOP 2
T0034609 T3***09 WASHER 4
C1232917 C1***17 HEX SOC SCREW,5/16" x 15.80mm 4
G1334581 G1***81 NUT 4
T0034609 T3***09 WASHER 4
N1047064 N1***64 SUPPORT 1
Q0036998 Q3***98 COLLAR CLAMP 1
J1340448 J1***48 BELLOWS 1
X0035004 X3***04 WASHER 2
V1533038 V1***38 SCREW 2
G0034598 G3***98 SAFETY NUT 4
X0035004 X3***04 WASHER 2
V1533038 V1***38 SCREW 2
M1047063 M1***63 SET 1
