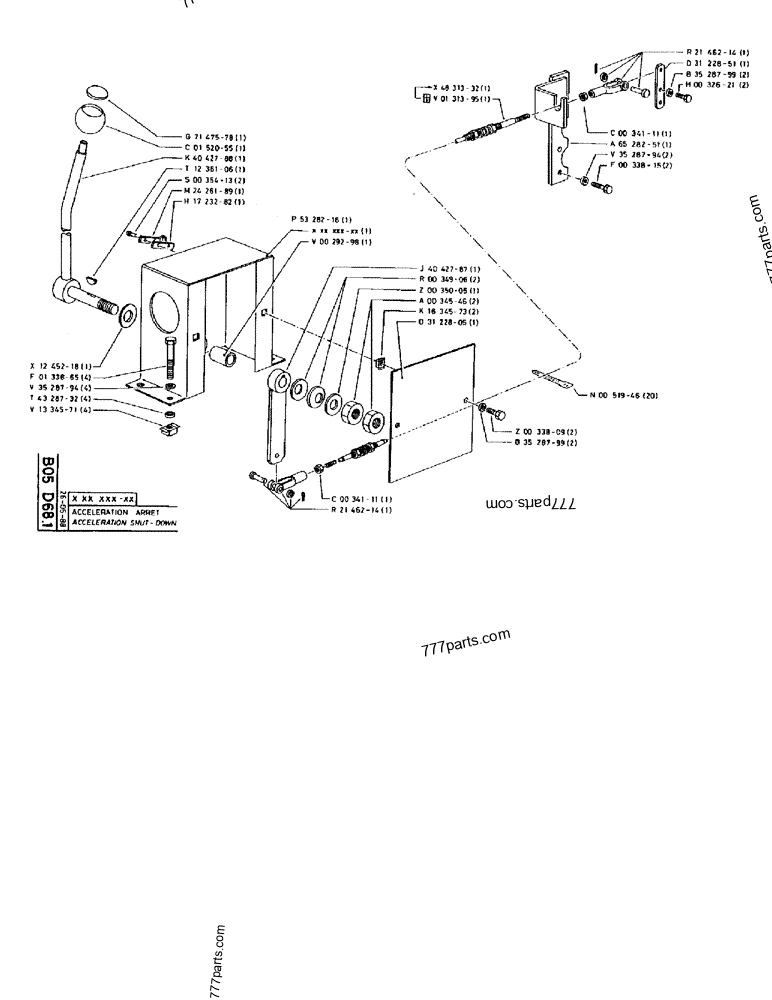

Part diagram ACCELERATION SHUT - DOWN - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
X1245218 X1***18 WASHER 1
F0133865 12***61 BOLT,Hex, M8 x 60mm L, Cl 8.8 4
V3528794 V3***94 WASHER 4
T4328732 T4***32 WASHER 4
V1334571 V1***71 NUT 4
G7147578 G7***78 IDEOGRAM 1
C0152055 C1***55 BALL KNOB 1
K4042788 K4***88 CONTROL LEVER 1
T1236106 T1***06 BUCKET TOOTH KEY 1
S0035413 S3***13 RIVET 2
M2426189 M2***89 HOOD 1
H1723282 H1***82 PLATE 1
P5328216 P5***16 SUPPORT 1
V0029298 V2***98 SELF LUB RING 1
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 1
R2146214 R2***14 CLEVIS 1
X4831332 X4***32 CABLE 1
V0131395 V1***95 CABLE 1
J4042787 J4***87 CRANK LEVER 1
R0034906 R3***06 RUBBER WASHER 2
Z0035005 Z3***05 WASHER 1
A0034546 A3***46 NUT 2
K1634573 K1***73 NUT 2
D3122805 D3***05 LARGE PLATE; SPARE PART 1
Z0033809 12***00 BOLT,M6 x 20mm, Cl 8.8 2
B3528799 B3***99 WASHER 2
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 1
A6528251 A6***51 SUPPORT 1
V3528794 V3***94 WASHER 2
F0033815 43***27 BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8 2
N0051946 PN***46 COLLAR 20
R2146214 R2***14 CLEVIS 1
D3122851 D3***51 PLATE 1
B3528799 B3***99 WASHER 2
H0032621 86***68 BOLT,Hex, M6 x 1 x 16mm, Cl 8.8 2
