Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / BASIC ENGINE BF6L513R

Select modification

Select section

Subsection

Unit

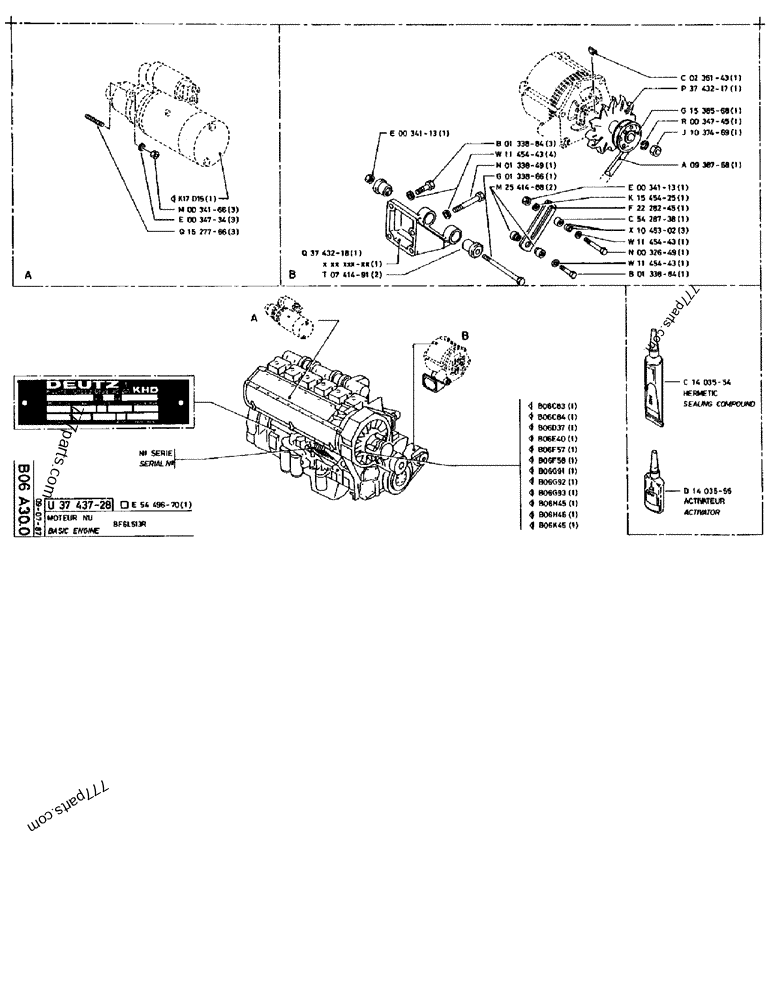

Part diagram BASIC ENGINE BF6L513R - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
K17D15 K1***15 1
M0034166 10***16 NUT,M10 x 1.5, Cl 8 3
E0034734 E3***34 WASHER 3
Q1527766 Q1***66 STUD 3
E0034113 43***62 NUT,M8 x 1.25, Cl 10 1
Q3743218 Q3***18 BRACKET 1
T0741491 T7***91 BUSHING 2
B0133884 41***79 BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8 3
W1145443 W1***43 WASHER 4
N0133849 81***80 BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8 1
G0133866 G1***66 SCREW 1
M2541488 M2***88 WAD 2
C0236143 C2***43 BUCKET TOOTH KEY 1
P3743217 P3***17 FAN 1
G1538568 G1***68 PULLEY 1
R0034745 R3***45 WASHER 1
J1037469 J1***69 NUT 1
A0938768 A9***68 BELT 1
E0034113 43***62 NUT,M8 x 1.25, Cl 10 1
K1545425 K1***25 WASHER 1
F2228245 F2***45 SUPPORT; SPARE PART 1
C5428738 C5***38 SPACER 1
X1045302 X1***02 WASHER 3
W1145443 W1***43 WASHER 1
N0032649 N3***49 SCREW 1
W1145443 W1***43 WASHER 1
B0133884 41***79 BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8 1
C1403554 C1***54 GLUE
D1403555 D1***55 ACTIVATOR
B6C83 B6***83 1
B6C84 B6***84 1
B6D37 B6***37 1
B6E40 B6***40 1
B6F57 B6***57 1
B6F58 B6***58 1
B6G91 B6***91 1
B6G92 B6***92 1
B6G93 B6***93 1
B6H45 B6***45 1
B6H46 B6***46 1
B6K45 B6***45 1
E5449670 E5***70 SEAL PACKAGE 1
