Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / FUEL CIRCUIT BF6L513R

Select modification

Select section

Subsection

Unit

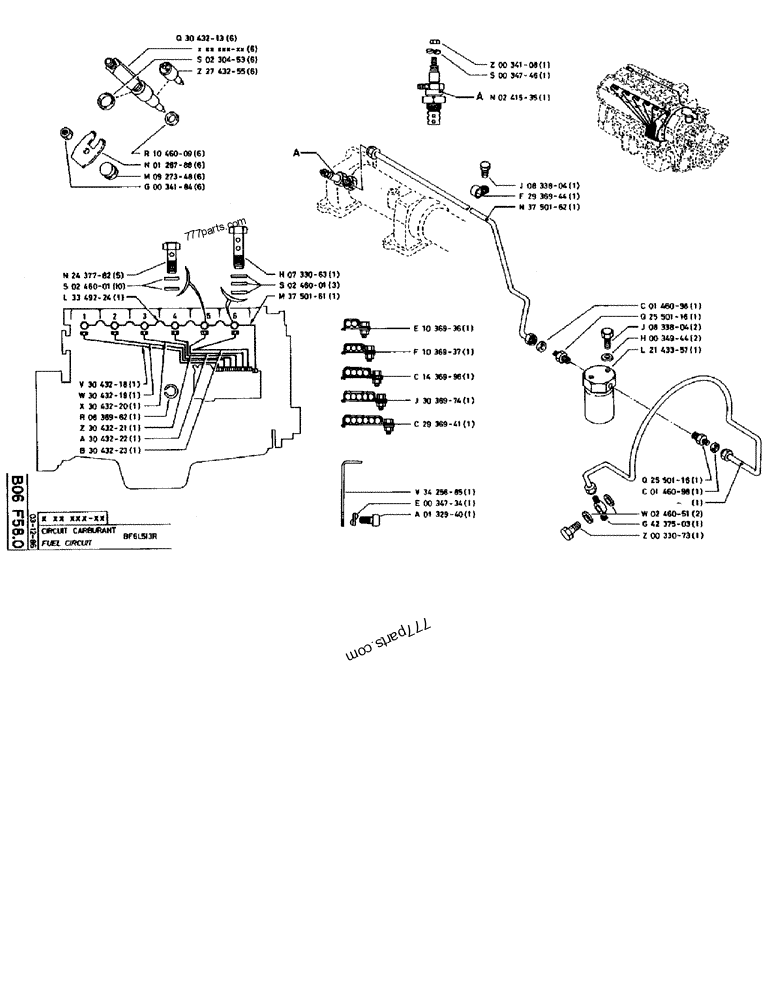

Part diagram FUEL CIRCUIT BF6L513R - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
N2437782 N2***82 SCREW 5
S0246001 S2***01 COPPER SEAL 10
L3349224 L3***24 RETURN PIPE 1
V3043218 V3***18 PIPE 1
W3043219 W3***19 PIPE 1
X3043220 X3***20 PIPE 1
R0836962 R8***62 TRANSMISSION SLEEVE 1
Z3043221 Z3***21 PIPE 1
A3043222 A3***22 PIPE 1
B3043223 B3***23 PIPE 1
Q3043213 Q3***13 DOOR 6
S0230453 S2***53 O-RING 6
Z2743255 Z2***55 NOZZLE INJECTION 6
R1046009 R1***09 GASKET 6
N0126788 N1***88 HOOD 6
M0927348 M9***48 DOWEL 6
G0034184 86***89 NUT,M10 x 1.5, Cl 10 6
H0733063 H7***63 BANJO BOLT 1
S0246001 S2***01 COPPER SEAL 3
M3750161 M3***61 PIPE 1
E1036936 E1***36 CLAMP 1
F1036937 F1***37 CLAMP 1
C1436996 C1***96 CLAMP 1
J3036974 J3***74 CLAMP 1
C2936941 C2***41 CLAMP 1
V3425685 V3***85 SUPPORT; SPARE PART 1
E0034734 E3***34 WASHER 1
A0132940 A1***40 SCREW 1
Z0034108 Z3***08 NUT 1
S0034746 S3***46 WASHER 1
N0241535 N2***35 GLOW PLUG 1
J0833804 J8***04 SCREW 1
F2936944 F2***44 CLAMP 1
N3750162 N3***62 RETURN PIPE 1
C0146098 C1***98 GASKET 1
Q2550116 Q2***16 PIPE, EXHAUST SYSTEM; SPARE PART 1
J0833804 J8***04 SCREW 2
H0034944 H3***44 RUBBER WASHER 2
L2143357 L2***57 SOLENOID 1
Q2550116 Q2***16 PIPE, EXHAUST SYSTEM; SPARE PART 1
C0146098 C1***98 GASKET 1
W0246051 W2***51 GASKET 2
G4237503 G4***03 FITTING 1
Z0033073 Z3***73 BANJO BOLT 1
