Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89))

CRAWLER EXCAVATORS Case 170B
/case/170B/m82/s-234.html / No Description / ATTACHMENT AND SWING MOTION CONTROL

Select modification

Select section

Subsection

Unit

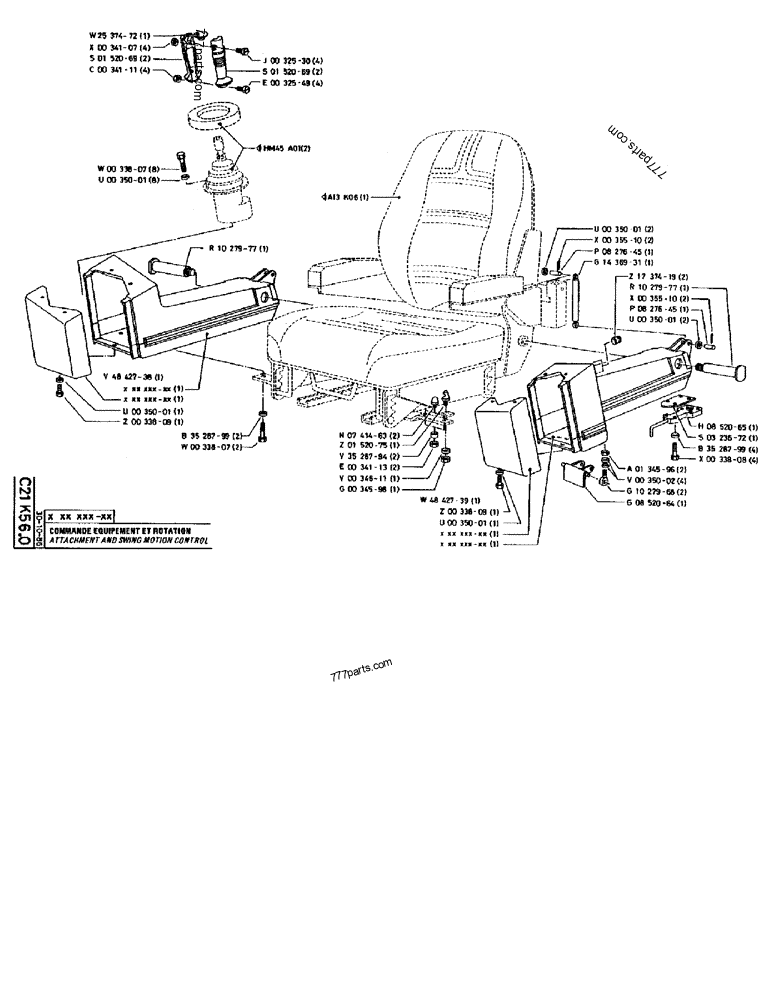

Part diagram ATTACHMENT AND SWING MOTION CONTROL - CRAWLER EXCAVATORS Case 170B (CASE CRAWLER EXCAVATOR (S/N 1501-) (S/N 12501-) (EUROPE) (2/87-12/89)) | 777parts.com
# Part No. Description Qty
W2537472 W2***72 PLASTIC PLUG 1
X0034107 82***04 NUT,M4, Cl 8 4
S0152069 S1***69 HANDLE 2
C0034111 15***21 NUT,Hex, M6, 5.20mm High, Cl 10 4
W0033807 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 8
U0035001 U3***01 WASHER 8
V4842738 V4***38 CASE 1
U0035001 U3***01 WASHER 1
Z0033809 12***00 BOLT,M6 x 20mm, Cl 8.8 1
J0032530 J3***30 SCREW,Sltd Fil Hd, M4 x 10 4
S0152069 S1***69 HANDLE 2
E0032549 E3***49 SCREW,Hex, M6 x 16mm 4
HM45A01 HM***01 2
R1027977 R1***77 PIN 1
B3528799 B3***99 WASHER 2
W0033807 86***86 BOLT,Hex, M6 x 1 x 25mm, Cl 8.8 2
A13K06 A1***06 1
N0741463 N7***63 STOP 2
Z0152075 Z1***75 CONE 1
V3528794 V3***94 WASHER 2
E0034113 43***62 NUT,M8 x 1.25, Cl 10 2
V0034611 V3***11 WASHER 1
G0034598 G3***98 SAFETY NUT 1
W4842739 W4***39 CASE 1
Z0033809 12***00 BOLT,M6 x 20mm, Cl 8.8 1
U0035001 U3***01 WASHER 1
U0035001 U3***01 WASHER 2
X0035510 X3***10 SPLIT PIN 2
P0827645 P8***45 PIN 1
G1436931 G1***31 GAS STRUT 1
Z1737419 Z1***19 PLUG 2
R1027977 R1***77 PIN 1
X0035510 X3***10 SPLIT PIN 2
P0827645 P8***45 PIN 1
U0035001 U3***01 WASHER 2
H0852065 H8***65 LOCK ASSY 1
S0323672 S3***72 HOOD 1
B3528799 B3***99 WASHER 4
X0033808 12***01 BOLT,Hex, M6 x 1 x 30mm, Cl 8.8 4
A0134596 A1***96 SAFETY NUT 2
V0035002 71***R1 RING 4
G1027968 G1***68 CLEVIS 2
G0852064 G8***64 HANDLE 1
