Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91))

CRAWLER EXCAVATORS Case 170C
/case/170C/m83/s-236.html / 02 ENGINE / ENGINE MOUNTING PARTS

Select section

Subsection

Unit

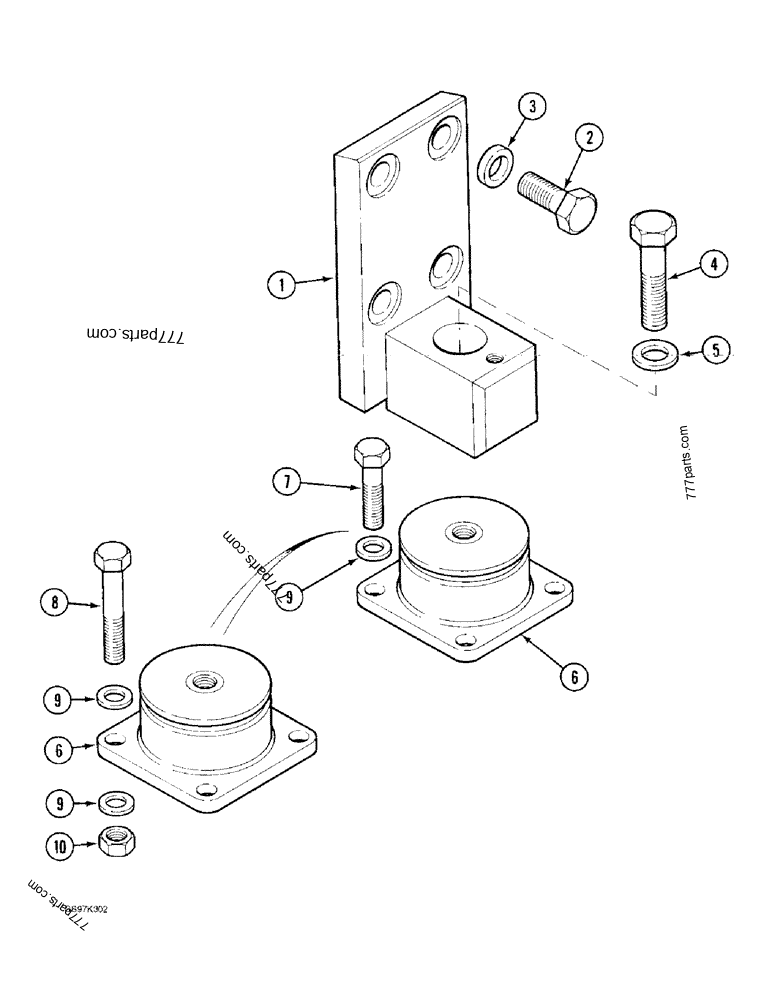

Part diagram ENGINE MOUNTING PARTS - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com
# Part No. Description Qty
1 P2***09 FOOT; MOUNT - engine, rigid 4
2 81***55 BOLT,Hex, M16 x 2 x 55mm, Cl 8.8; replaces bolt P33803 Hex, M16 x 55, 8.8, Full Thd 16
3 P4***46 WASHER; SPACER - bolt, 11 mm thick 16
4 81***70 BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8; - hex, 12 - 1.75 x 70 mm (Replaces bolt P33843) 4
5 P3***93 WASHER; SPACER - bolt, 8 mm thick 4
6 P7***73 SUPPORT; MOUNT - engine, flexible 4
7 61***30 BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; Full Thd, If used Hex, M10 x 30, 8.8 16
8 81***50 BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8; If used (Replaces bolt P833802) Hex, M10 x 50, 8.8 16
9 P3***95 WASHER; SPACER - bolt, 7 mm thick, sixteen used with bolt 614-10030, thirty-two used with bolt 814-10050
10 83***10 NUT,M10 x 1.5, Cl 8; NUT, LOCK, , Used with bolt 814-10050 only (Replaces nut P34598) M10 x 1.5, Cl 8 16
