Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91))

CRAWLER EXCAVATORS Case 170C
/case/170C/m83/s-236.html / 04 ELECTRICAL SYSTEMS / CAB FAN
NOTE: See Figure 4-24 for cab wiring harness connections.

Select section

Subsection

Unit

Part diagram CAB FAN - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com

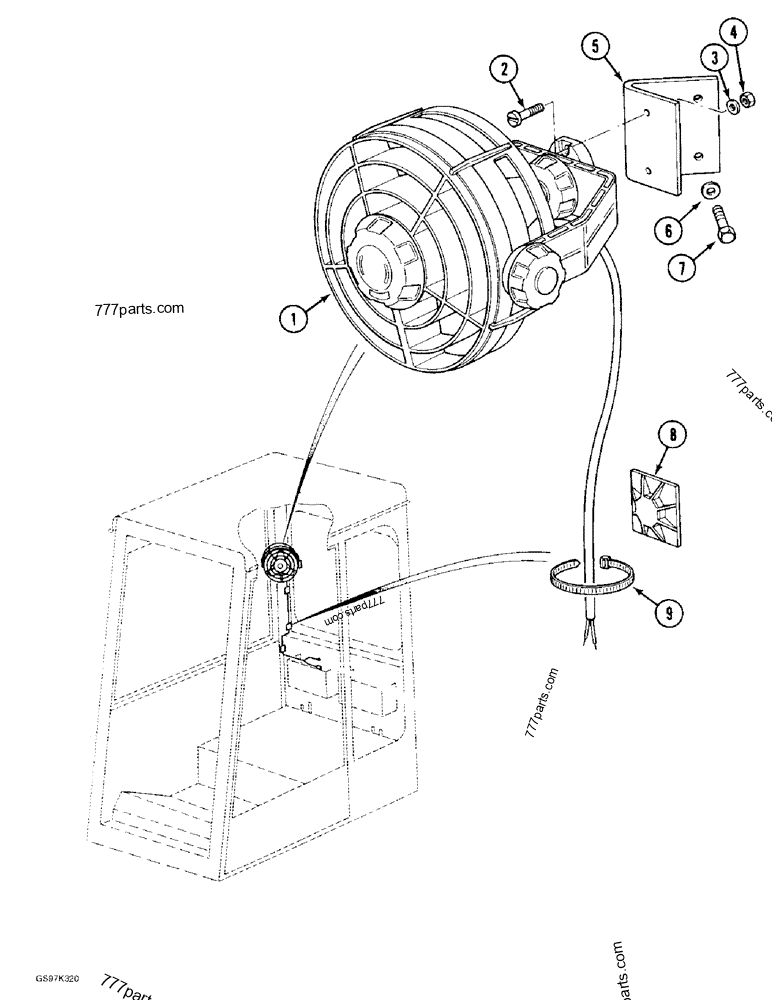

# Part No. Description Qty
1 P1***68 VENTILATOR; FAN - cab, includes wiring harness 1
2 P3***29 SCREW,Hex Soc Hd, M4 x 16; - fan to bracket 2
3 P3***03 WASHER; - lock, bracket bolt 2
4 P3***07 NUT - hex, bracket bolt, order from Deutz 2
5 P2***93 HOOD; BRACKET -, Serial Range: fan-cab 1
6 P3***01 WASHER; - flat, 6 mm 2
7 61***16 BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd; Bracket to cab Hex, M6 x 16, 8.8 2
8 P3***28 BASE; RETAINER - tie strap 4
9 P1***41 MOUNTING CLIP; STRAP - tie, wiring harness 4
