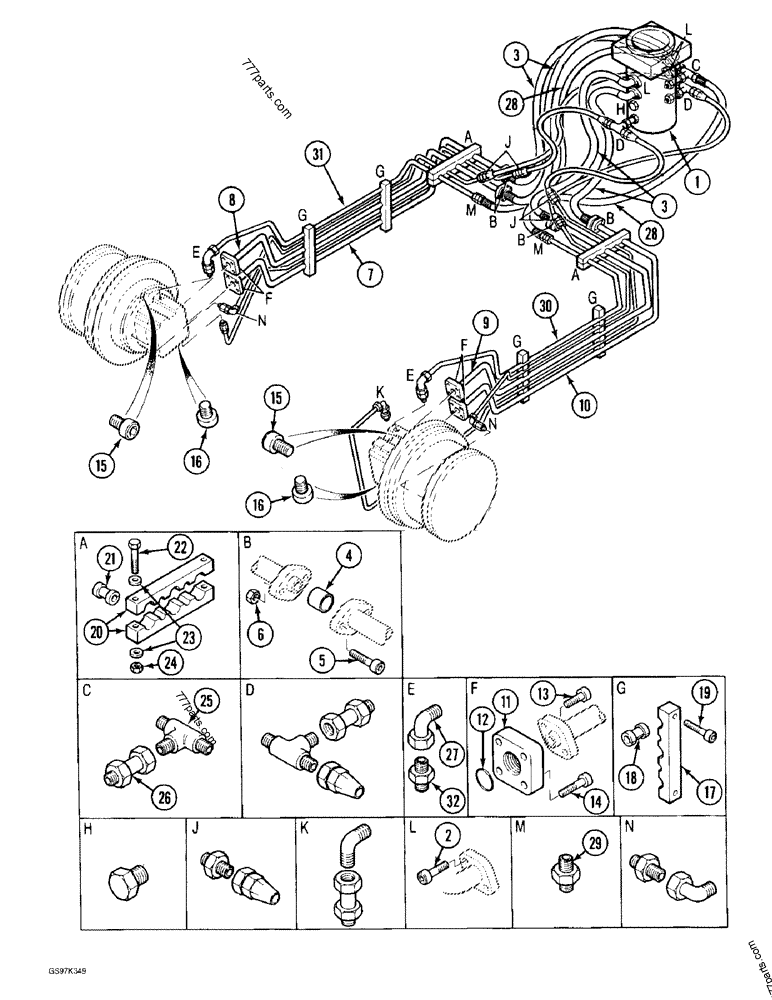

Part diagram TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com
# Part No. Description Qty
1 P1***54 HYDRAULIC SWIVEL; SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-164 1
2 14***31 HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd 8
3 P3***11 HOSE; - swivel to track drive motor, 1250 mm (49-1/4 inch) long 4
4 P1***58 JUNCTION; ADAPTER - hose to tube flange 4
5 P1***03 SCREW; BOLT - hex socket, 10 mm x 85 mm, class 10.9 8
6 82***10 NUT,M10, Cl 8; - hex, 10 mm - 1.5, class 10, plated 8
7 P6***71 PIPE; TUBE - swivel to left-hand drive motor, forward drive 1
8 P6***73 PIPE; TUBE - swivel to left-hand drive motor, reverse drive 1
9 P6***76 PIPE; TUBE - swivel to right-hand drive motor, reverse drive 1
10 P6***72 PIPE; TUBE - swivel to right-hand drive motor, forward drive 1
11 P3***32 SHIN; PLATE - adapter, tube to drive motor 4
12 23***23 O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro; Adapter plate (Replaces O-ring R30990) -123, 90 Duro, 1.174" ID x .103" Thk 4
13 P1***71 SCREW; BOLT - hex socket, 10 mm x 35 mm, class 10.9 16
14 14***31 HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd 8
15 P2***47 PLUG; ASSEMBLY - transmission housing 2
16 P2***13 PLUG; ASSEMBLY - drive motor, no longer available, order plug P3337446, item 16A, Includes: O-ring P1145268 2
P1***68 SEAL; O-RING - plug 1
16A P3***46 PLUG; - drive motor, not shown 2
17 P4***67 SHIN; CLAMP - drive motor tubes to track frame side 4
18 P3***53 BUSHING; INSULATOR - tube 4
19 P3***43 SCREW; BOLT - tube clamp 8
20 P4***68 SHIN; CLAMP - drive motor tubes, upper 4
21 P3***53 BUSHING; INSULATOR - tube 6
22 P1***84 SCREW; BOLT - hex, 12 mm x 110 mm 4
23 P3***93 WASHER; SPACER - bolt, 8 mm thick 8
24 83***12 NUT,M12 x 1.75, Cl 8; NUT, LOCK, (Replaces nut P34596) M12 x 1.75, Cl 8 4
25 P3***37 TEE; - motor housing drain, at swivel 1
26 P2***94 FITTING; TUBE ASSEMBLY - adapter, motor housing drain tee, Includes: O-ring P5746063 1
P5***63 SEAL; O-RING - adapter tube 1
27 P1***30 ANGLE; ELBOW - 90 degree, motor housing drain tube 2
28 P4***46 HOSE; - motor housing drain, 1250 mm (49-1/4 inch) long 2
29 P3***50 UNION; ADAPTER - motor drain, Serial Range: hose-tube 2
30 P6***74 PIPE; TUBE - right-hand motor housing drain 1
31 P6***75 PIPE; TUBE - left-hand motor housing drain 1
32 P3***75 UNION; ADAPTER ASSEMBLY - elbow to drive motor, Includes: O-ring P1145268 2
P1***68 SEAL; O-RING - adapter Continued on next figure 1

TRACK DRIVE, DRIVE RANGE AND BRAKE HYDRAULIC LINES - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com
