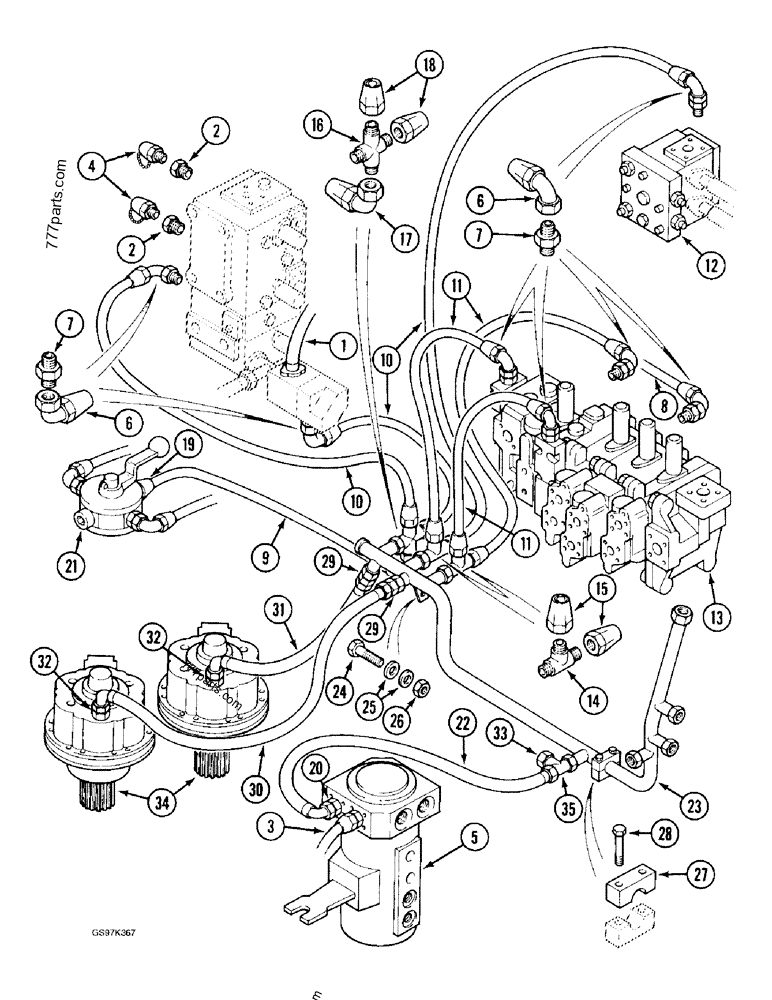

Part diagram HYDRAULIC CIRCUIT RETURN LINES, LEAK RETURN TO FILTER - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com
# Part No. Description Qty
1 REF INSTRUCTION; HOSE - return, from regulating valve, 1000 mm (39-3/8 inch) long, see page 8-27 for continuation of circuit 1
2 P6***58 RESTRICTOR; ADAPTER ASSEMBLY - disconnect, Includes: O-ring P945293 2
P9***93 WASHER, SEALING; O-RING - adapter 2
3 REF INSTRUCTION; HOSE - control circuit, see page 8-43 1
4 P4***16 MAKING-UP; VALVE ASSEMBLY - pressure check, Includes: Seal P7046042 2
P7***42 SEAL; - pressure check valve 1
5 P1***54 HYDRAULIC SWIVEL; SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-164 1
6 P4***90 END FITTING; ADAPTER - leak return hose, 90 degree 6
7 P4***73 UNION; ADAPTER ASSEMBLY - leak return hose, at valve, Includes: O-ring P945295 6
P9***95 SEAL; O-RING - adapter 1
8 REF INSTRUCTION; HOSE - leak return, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below 1
9 REF INSTRUCTION; HOSE - leak return, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below 1
10 REF INSTRUCTION; HOSE - leak return, 800 mm (31-1/2 inch) long, cut from bulk hose P1103640 below 3
11 REF INSTRUCTION; HOSE - leak return, 500 mm (19-11/16 inch) long, cut from bulk hose P1103640 below 3
12 REF INSTRUCTION; VALVE ASSEMBLY - power sensing, parts list Figure 8-138 1
13 REF INSTRUCTION; VALVE ASSEMBLY - control, attachment, parts list Figures 8-100 through 8-110 1
14 P9***75 TEE; - leak return hose to manifold tube 2
15 P4***88 END FITTING; ADAPTER - leak return, Serial Range: hose-tee 4
16 P1***20 CROSS; - leak return, Serial Range: hose-manifold 1
17 P4***90 END FITTING; ADAPTER - leak return hose, 90 degree 1
18 P4***88 END FITTING; ADAPTER - leak return, Serial Range: hose-cross 3
19 P4***71 UNION; ADAPTER ASSEMBLY - leak return hose to tee, Includes: O-ring P7046042 2
P7***42 SEAL; O-RING - adapter 1
20 P3***01 UNION; ADAPTER ASSEMBLY - hose, at swivel, Includes: O-ring P5746063 1
P5***63 SEAL; O-RING - adapter 1
21 P1***55 PLUG; ASSEMBLY - selector valve, Includes: O-ring P7046042 1
P7***42 SEAL; O-RING - plug 1
22 P3***96 HOSE; - return, from hydraulic swivel, 800 mm (31-1/2 inch) long 1
23 P3***19 DEUTZ PART; TUBE - manifold, leak return hoses, see Figure 8-37 for hoses to filter, order from Deutz 1
24 81***50 BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8; (Replaces bolt P833802) Hex, M10 x 50, 8.8 2
25 P4***96 WASHER; SPACER - bolt, 7 mm thick 4
26 83***10 NUT,M10 x 1.5, Cl 8; NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8 2
27 P5***03 SHIN; CLAMP - tube 1
28 P2***74 SCREW; BOLT - hex, 10 mm x 50 mm 2
29 P3***50 UNION; ADAPTER - straight, hose to manifold tube 2
30 P4***47 HOSE; - swing motor leak return, 1250 mm (49-1/4 inch) long 1
31 P3***01 HOSE; - swing motor leak return, 630 mm (24-13/16 inch) long 1
32 P3***65 UNION; ADAPTER ASSEMBLY - hose to swing motor, Includes: O-ring P2930494 2
P2***94 GASKET; O-RING - adapter 1
33 P1***89 BLANK-OFF PLUG; CAP - at tee 1
34 REF INSTRUCTION; MOTOR ASSEMBLY - swing, parts list Figure 8-156 or 8-158 2
35 P3***33 TEE; - at manifold tube 1
P1***40 PIPE; HOSE - bulk, sold by the meter
