Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91))

CRAWLER EXCAVATORS Case 170C
/case/170C/m83/s-236.html / 08 HYDRAULICS / HYDRAULIC CONTROL CIRCUIT, FOR HEAVY LIFT, P.I.N. 74501

Select section

Subsection

Unit

Part diagram HYDRAULIC CONTROL CIRCUIT, FOR HEAVY LIFT, P.I.N. 74501 - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com

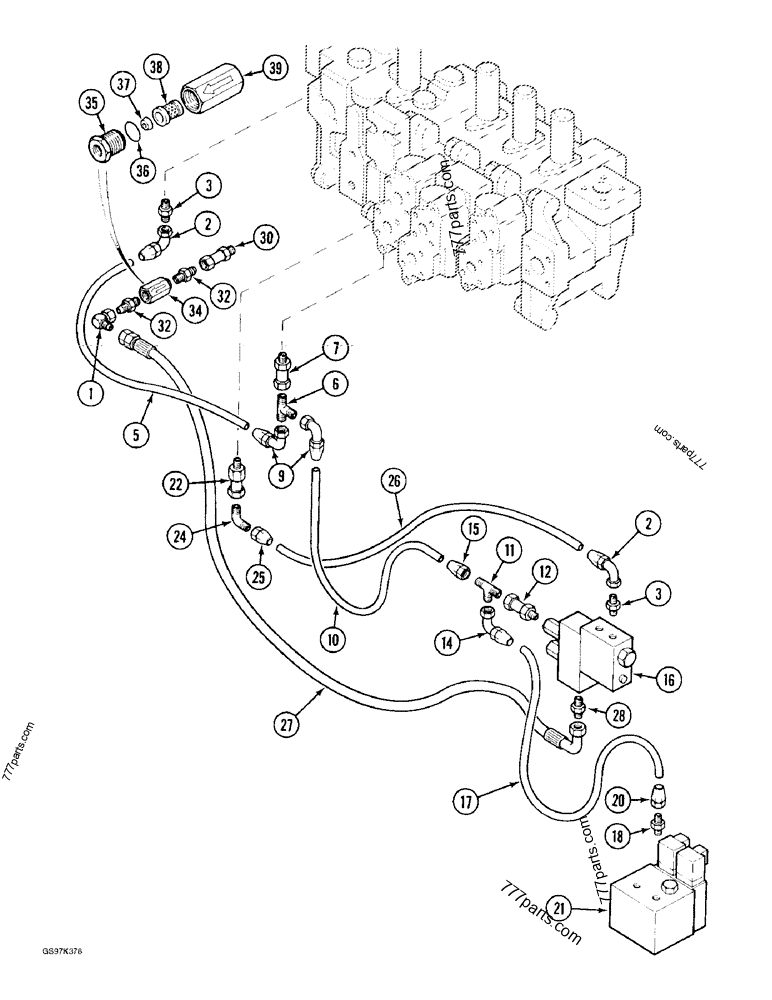

# Part No. Description Qty
1 P1***19 ANGLE; ADAPTER - 90 degree, filter to control circuit hose 1
2 P4***90 END FITTING; ADAPTER - 90 degree, control circuit hose 2
3 P4***73 UNION; ADAPTER ASSEMBLY - straight, at valve, Includes: O-ring P945295 2
P9***95 SEAL; O-RING - adapter 1
5 REF INSTRUCTION; HOSE - control circuit, 400 mm (15-3/4 inch) long, cut from bulk hose P1103640 below 1
6 P9***75 TEE; - at heavy lift valve section 1
7 P4***77 FITTING; TUBE ASSEMBLY - adapter, tee to valve section, Includes: O-ring 945295 1
P9***95 SEAL; O-RING - adapter 1
9 P4***90 END FITTING; ADAPTER - 90 degree, control circuit hose 2
10 REF INSTRUCTION; HOSE - control circuit, to parallel supply valve, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below 1
11 P9***75 TEE; - at parallel supply control valve 1
12 P4***77 FITTING; TUBE ASSEMBLY - adapter, tee to parallel supply valve, Includes: O-ring P945295 1
P9***95 SEAL; O-RING - adapter 1
14 P4***90 END FITTING; ADAPTER - 90 degree, control circuit hose 1
15 P4***88 END FITTING; ADAPTER - straight, control circuit hose 1
16 P3***06 BLOCK; VALVE ASSEMBLY - control, parallel supply, parts list Figure 8-136 1
17 REF INSTRUCTION; HOSE - control circuit, to solenoid control valve, 700 mm (27-9/16 inch) long, cut from bulk hose P1103640 below 1
18 P4***73 UNION; ADAPTER ASSEMBLY - straight, at valve, Includes: O-ring P945295 1
P9***95 SEAL; O-RING - adapter 1
20 P4***88 END FITTING; ADAPTER - straight, control circuit hose 1
21 P1***71 SHIN; VALVE ASSEMBLY - solenoid control, parts list Figure 8-132 1
22 P4***77 FITTING; TUBE ASSEMBLY - adapter, at parallel arm section, Includes: O-ring P945295 1
P9***95 SEAL; O-RING - adapter 1
24 P1***51 ANGLE; ADAPTER - 90 degree, tube to control circuit hose 1
25 P4***88 END FITTING; ADAPTER - straight, control circuit hose 1
26 REF INSTRUCTION; HOSE - control circuit, to parallel supply valve, 1000 mm (39-3/8 inch) long, cut from bulk hose P1103640 below 1
27 P6***20 HOSE; - parallel arm section to parallel supply control valve, 800 mm (31-1/2 inch) long 1
28 P4***73 UNION; ADAPTER ASSEMBLY - hose to parallel supply control valve, Includes: O-ring P945295 1
P9***95 SEAL; O-RING - adapter 1
30 P4***77 FITTING; TUBE ASSEMBLY - adapter, at parallel arm section, Includes: O-ring P945295 1
P9***95 SEAL; O-RING - adapter 1
32 P4***84 UNION; ADAPTER ASSEMBLY - straight, at valve, Includes: O-ring P7046042 2
P7***42 SEAL; O-RING - adapter 1
34 P7***90 ASSEMBLY; FILTER ASSEMBLY - parallel arm section, in line, Includes: Ref. 35-39 1
--***-- Regarding ref. #34, see SAT #34 or Service Bulletin # NEX SB 016 87.
35 NSS NOT SOLD SEPARAT; CAP - filter assembly, order filter assembly P7646290 1
36 P1***68 SEAL; O-RING - cap 1
37 NSS NOT SOLD SEPARAT; CONE - filter assembly, order filter assembly P7646290 1
38 P1***74 CARTRIDGE; ELEMENT - filter assembly 1
39 NSS NOT SOLD SEPARAT; BODY - filter assembly, order filter assembly P7646290 1
P1***40 PIPE; HOSE - bulk, sold by the meter
