Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91))

CRAWLER EXCAVATORS Case 170C

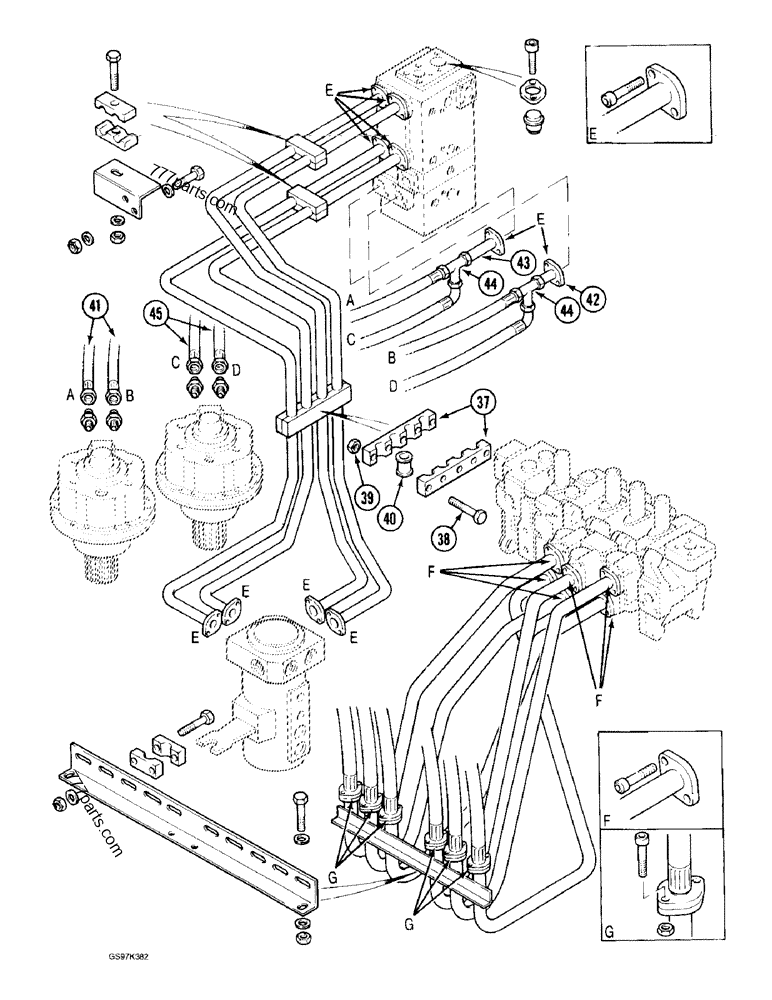

/case/170C/m83/s-236.html / 08 HYDRAULICS / HYDRLC CIRCT FROM MAIN CONTRL VLVS,TO SWIVL,SWING MOTORS & CYLINDERS,PIN 74644-74662,PIN 02301 & AFT

Select section

Subsection

Unit

Part diagram HYDRLC CIRCT FROM MAIN CONTRL VLVS,TO SWIVL,SWING MOTORS & CYLINDERS,PIN 74644-74662,PIN 02301 & AFT - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com
# Part No. Description Qty
37 P3***57 SHIN; CLAMP - drive control tubes, at swivel 2
38 81***90 BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8; - hex, 12 - 1.75 x 90 mm (Replaces bolt P33844) 5
39 P8***49 SAFETY NUT; NUT - hex, self-locking, 12 mm 5
40 P7***40 BUSHING; INSULATOR -, Serial Range: tube-clamp 4
41 P3***76 HOSE; - tee to swing motor, 800 mm (31-1/2 inch) long 2
42 P1***94 PIPE,26.75 mm DIA x 90 mm L; TUBE - short, swing control circuit 1
43 P2***04 PIPE; TUBE - long, swing control circuit 1
44 P5***03 TEE; - swing control hose 2
45 P4***33 HOSE; - tee to swing motor, 500 mm (19-11/16 inch) long 2
