Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91))

CRAWLER EXCAVATORS Case 170C
/case/170C/m83/s-236.html / 08 HYDRAULICS / HAND CONTROL VALVE, REXROTH MANUFACTURED

Select section

Subsection

Unit

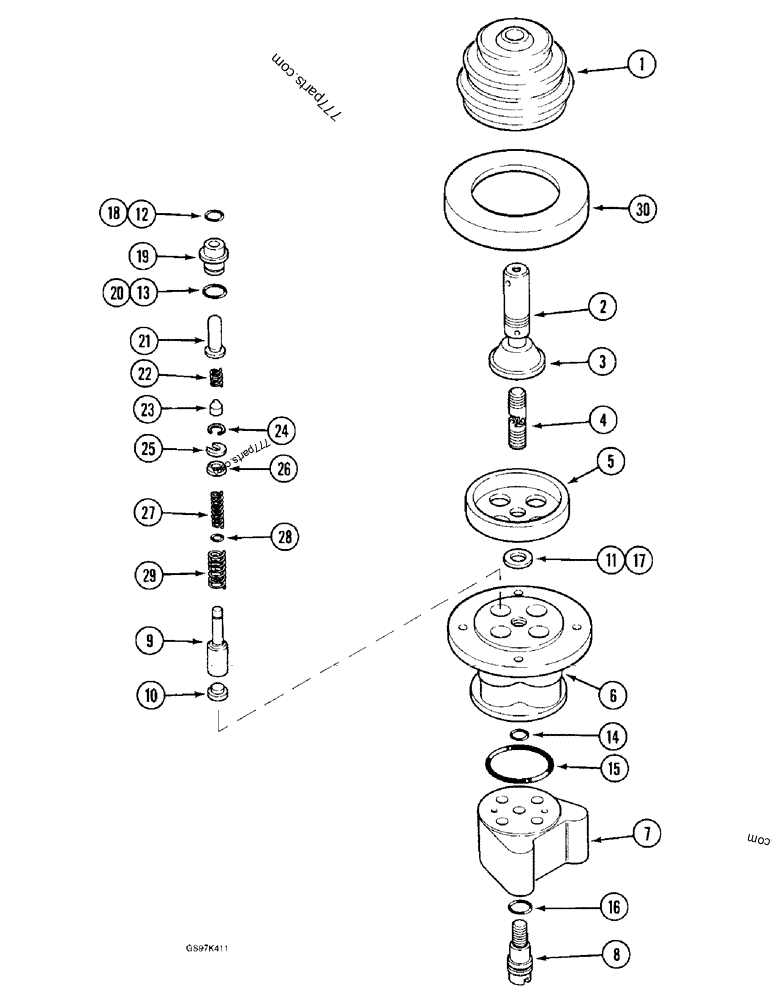

Part diagram HAND CONTROL VALVE, REXROTH MANUFACTURED - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com
# Part No. Description Qty
P2***28 BLOCK ASSY.; VALVE ASSEMBLY - hand control, Includes: Ref. 1-30 2
1 P5***10 BELLOWS; BOOT - protective, rubber 1
2 NSS NOT SOLD SEPARAT; LEVER - control, order valve assembly P2643328 1
3 NSS NOT SOLD SEPARAT; CAM - control lever, order valve assembly P2643328 1
4 P5***40 COUPLING; JOINT - universal, control lever 1
5 NSS NOT SOLD SEPARAT; PLATE - top cover, order valve assembly P2643328 1
6 NSS NOT SOLD SEPARAT; BODY - valve, upper, order valve assembly P2643328 1
7 NSS NOT SOLD SEPARAT; BLOCK - port, valve, order valve assembly P2643328 1
8 NSS NOT SOLD SEPARAT; STUD - retainer, body to block, order valve assembly P2643328 1
9 NSS NOT SOLD SEPARAT; SPOOL - regulating, order valve assembly P2643328 4
10 NSS NOT SOLD SEPARAT; SEAT - spring, order valve assembly P2643328 4
P6***33 SEAL PACKAGE; KIT - seal, guide (Replaces kit P3749651) 1
11 NSS NOT SOLD SEPARAT; SPACER - Teflon, plate to valve body, order kit P6149633 1
12 NSS NOT SOLD SEPARAT; O-RING - guide, inner, order kit P6149633 4
13 NSS NOT SOLD SEPARAT; O-RING - guide, outer, order kit P6149633 4
P3***17 KIT; - seal, valve body 1
14 NSS NOT SOLD SEPARAT; O-RING - valve body, small, order kit P3749617 1
15 NSS NOT SOLD SEPARAT; O-RING - valve body, large, order kit P3749617 1
16 NSS NOT SOLD SEPARAT; O-RING - retainer stud, order kit P3749617 1
P6***41 KIT; - cartridge and guide, Includes: Ref. 17-24 4
17 NSS NOT SOLD SEPARAT; SPACER - Teflon, plate to valve body, order kit P6149641 1
18 NSS NOT SOLD SEPARAT; O-RING - guide, inner, order kit P6149641 1
19 NSS NOT SOLD SEPARAT; GUIDE - cartridge, order kit P6149641 1
20 NSS NOT SOLD SEPARAT; O-RING - guide, outer, order kit P6149641 1
21 NSS NOT SOLD SEPARAT; CARTRIDGE - control, order kit P6149641 1
22 NSS NOT SOLD SEPARAT; SPRING - cartridge, order kit P6149641 1
23 NSS NOT SOLD SEPARAT; GUIDE - cartridge spring, order kit P6149641 1
24 NSS NOT SOLD SEPARAT; RETAINER - guide, order kit P6149641 1
P3***21 KIT; - cartridge spring, Includes: Ref. 25-29 4
25 NSS NOT SOLD SEPARAT; RETAINER - spring stop, order kit P3749621 1
26 NSS NOT SOLD SEPARAT; STOP - spring, order kit P3749621 1
27 NSS NOT SOLD SEPARAT; SPRING - cartridge, inner, order kit P3749621 1
28 NSS NOT SOLD SEPARAT; SHIM - spring, 0.10 mm (0.004 inch) thick, order kit P3749621
28 NSS NOT SOLD SEPARAT; SHIM - spring, 0.2 mm (0.008 inch) thick, order kit P3749621
28 NSS NOT SOLD SEPARAT; SHIM - spring, 0.050 mm (0.020 inch) thick, order kit P3749621
29 NSS NOT SOLD SEPARAT; SPRING - cartridge, outer, order kit P3749621 1
30 P7***84 PROTECTOR; RING - rubber, valve body 2
