Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91))

CRAWLER EXCAVATORS Case 170C
/case/170C/m83/s-236.html / 08 HYDRAULICS / HAND CONTROL VALVE, MONSUN-TISON MANUFACTURED

Select section

Subsection

Unit

Part diagram HAND CONTROL VALVE, MONSUN-TISON MANUFACTURED - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com

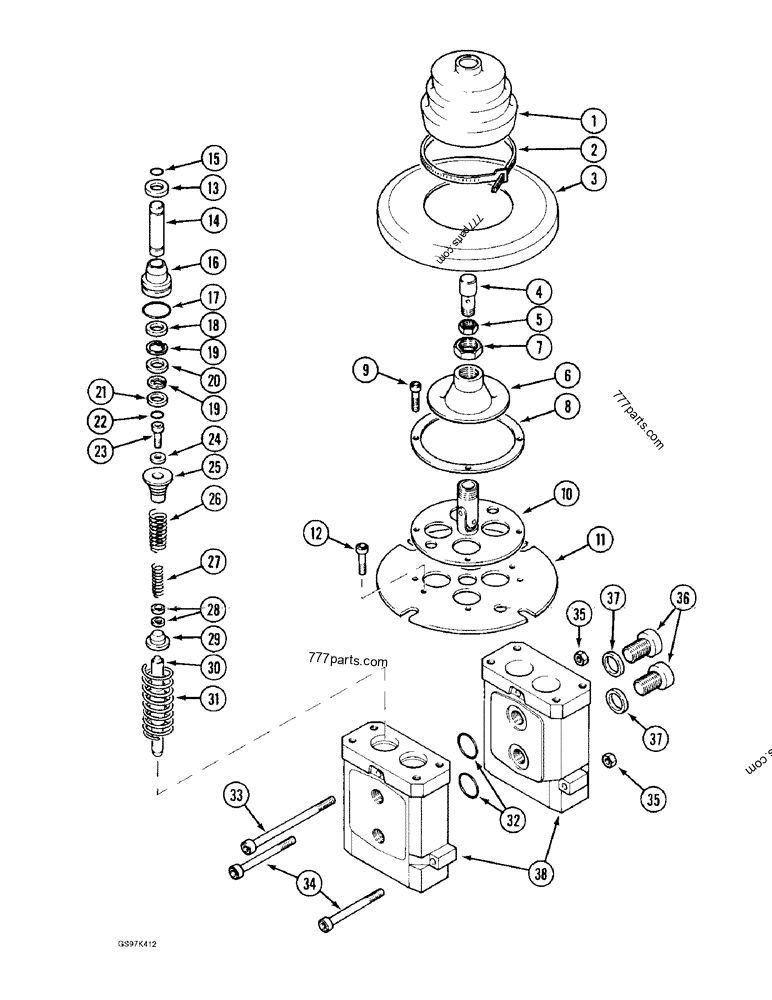

# Part No. Description Qty
P2***28 BLOCK ASSY.; VALVE ASSEMBLY - hand control, Includes: Ref. 1-38 2
1 P2***49 BELLOWS; BOOT - protective, rubber, Includes: Ref. 1-27 1
2 NSS NOT SOLD SEPARAT; STRAP - tie, boot, order valve assembly P2643328 1
3 P7***65 PROTECTOR; RING - rubber, valve body 1
4 P1***76 PIN; - control lever 1
5 P3***46 NUT; - hex, 14 mm 1
P5***94 LARGE PLATE; KIT - cam and plate, Includes: Ref. 6-12 1
6 NSS NOT SOLD SEPARAT; ACTUATOR - control lever, order kit P5328294 1
7 NSS NOT SOLD SEPARAT; NUT - actuator, order kit P5328294 1
8 NSS NOT SOLD SEPARAT; RING - top cover, order kit P5328294 1
9 NSS NOT SOLD SEPARAT; SCREW - ring, order kit P5328294 4
10 NSS NOT SOLD SEPARAT; JOINT - universal, control lever, order kit P5328294 1
11 NSS NOT SOLD SEPARAT; PLATE - mounting, order kit P5328294 1
12 NSS NOT SOLD SEPARAT; SCREW - mounting plate, order kit P5328294 4
P5***43 CARTRIDGE; KIT - cartridge and guide (Replaces kit P3143665), Includes: Ref. 13-22 4
13 NSS NOT SOLD SEPARAT; WASHER - guide, order kit P5949643 1
14 NSS NOT SOLD SEPARAT; PIN - guide, order kit P5949643 1
15 NSS NOT SOLD SEPARAT; O-RING - guide pin, order kit P5949643 1
16 NSS NOT SOLD SEPARAT; GUIDE - cartridge, order kit P5949643 1
17 NSS NOT SOLD SEPARAT; O-RING - guide, outer, order kit P5949643 1
18 P8***03 OIL SEAL; SPACER - cartridge 1
19 P9***37 SPARE PART SET; KIT - retainer 1
20 NSS NOT SOLD SEPARAT; SPACER - cartridge, order kit P5949643 1
21 NSS NOT SOLD SEPARAT; SPACER - cartridge, order kit P5949643 1
22 P2***46 O-RING; - guide, inner 1
P3***64 CARTRIDGE; KIT - spring, Includes: Ref. 23-31 4
23 NSS NOT SOLD SEPARAT; SCREW - cartridge, order kit P3143664 1
24 NSS NOT SOLD SEPARAT; WASHER - screw, order kit P3143664 1
25 NSS NOT SOLD SEPARAT; GUIDE - spring, upper, order kit P3143664 1
26 NSS NOT SOLD SEPARAT; SPRING - cartridge, outer, order kit P3143664 1
27 NSS NOT SOLD SEPARAT; SPRING - cartridge, inner, order kit P3143664 1
28 NSS NOT SOLD SEPARAT; SHIM - spring, order kit P3143664 2
29 NSS NOT SOLD SEPARAT; GUIDE - spring, lower, order kit P3143664 1
30 NSS NOT SOLD SEPARAT; SPOOL - regulating, order kit P3143664 1
31 NSS NOT SOLD SEPARAT; SPRING - spool return, order kit P3143664 1
P1***88 TRUSS ROD; KIT - seal and tie bolt, Includes: Ref. 32-37 1
32 P2***45 O-RING; - valve body 2
33 NSS NOT SOLD SEPARAT; BOLT - upper, order kit P144988 1
34 NSS NOT SOLD SEPARAT; BOLT - lower, order kit P144988 2
35 NSS NOT SOLD SEPARAT; NUT - tie bolt, order kit P144988 3
36 NSS NOT SOLD SEPARAT; PLUG - valve body, order kit P144988 2
37 NSS NOT SOLD SEPARAT; SEAL - plug, order kit P144988 2
38 NSS NOT SOLD SEPARAT; SECTION - valve body, order valve assembly P2643328 2
