Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91))

CRAWLER EXCAVATORS Case 170C
/case/170C/m83/s-236.html / 09 CHASSIS / SHROUD FRAME AND REAR ENGINE COVER

Select section

Subsection

Unit

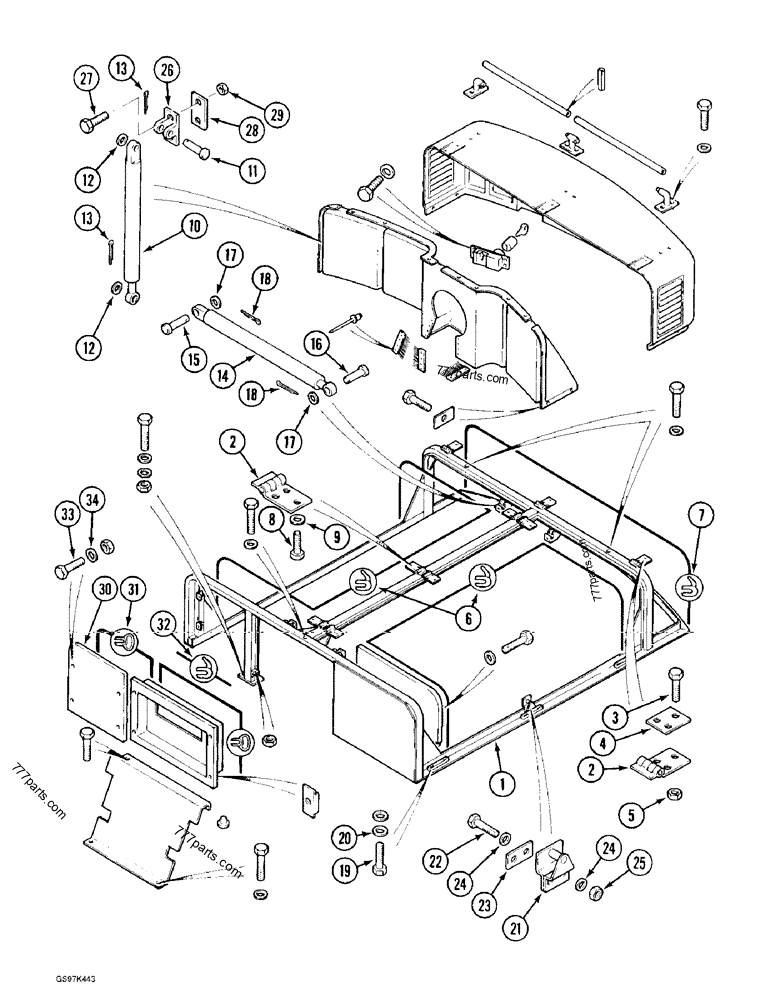

Part diagram SHROUD FRAME AND REAR ENGINE COVER - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com
# Part No. Description Qty
P8***16 FRAMEWORK; FRAME ASSEMBLY - engine shroud and cover, Includes: Ref. 1, 2 1
1 NSS NOT SOLD SEPARAT; FRAME - engine shroud and cover, order frame assembly P8443816 1
2 P3***84 HINGE; - access, Serial Range: covers-frame 9
3 61***45 BOLT,Hex, M14 x 2 x 45mm, Cl 8.8, Full Thd; Rear shroud hinge to frame (Replaces bolt P933833) Hex, M14 x 45, 8.8, Full Thd 9
4 P5***80 PLATE; - support, rear shroud hinge 3
5 P1***49 SAFETY NUT; NUT - hex, hinge bolt 9
6 REF INSTRUCTION; SEAL - engine access covers, 5200 mm (204-3/4 inch) long, cut from bulk seal P303153 below 2
7 REF INSTRUCTION; SEAL - rear shroud to frame, 5900 mm (232-1/4 inch) long, cut from bulk seal P303153 below 1
8 61***35 BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd; - hex, full threads, 14 - 2.0 x 35 mm 18
9 P3***92 WASHER; SPACER - hinge bolt, 10 mm 18
10 P1***27 GAS STRUT; CYLINDER - rear shroud support 2
11 P2***22 PIN; -, Serial Range: cylinder-shroud 2
12 P3***02 WASHER; - flat, cylinder pin 4
13 P3***10 SPLIT PIN; PIN - cotter, cylinder pin 4
14 P3***49 GAS STRUT; CYLINDER - support, engine access cover 4
15 P2***22 PIN; -, Serial Range: cylinder-cover 4
16 P1***15 PIN; -, Serial Range: cylinder-frame 4
17 P3***02 WASHER; - flat, 8 mm, cylinder pin 8
18 P3***10 SPLIT PIN; PIN - cotter, cylinder pin 8
19 81***60 BOLT,Hex, M14 x 2 x 60mm, Cl 8.8; frame to turntable (Replaces bolt P633005) Hex, M14 x 60, 8.8 12
20 P4***32 WASHER; SPACER - frame bolt 12
21 P1***82 CATCH PLATE; LATCH - engine access, Serial Range: cover-frame 4
22 P2***30 SCREW; BOLT -, Serial Range: latch-frame 8
23 P1***30 PLATE; - spacer, latch 4
24 P3***94 WASHER; SPACER - bolt, 6 mm thick 16
25 83***08 NUT,M8 x 1.25, Cl 8.8; NUT, (Replaces nut P134596) M8 x 1.25, Cl 8 8
26 P4***18 CLEVIS; BRACKET - mounting, support cylinder 2
27 61***25 BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8; Support Bracket (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd 4
28 P9***65 PLATE; - spacer, bracket 2
29 83***10 NUT,M10 x 1.5, Cl 8; NUT, LOCK, , Bracket bolt (Replaces nut P34598) M10 x 1.5, Cl 8 4
30 P7***29 PANEL; COVER - access, front right-hand 1
31 REF INSTRUCTION; SEAL - cover, 1800 mm (70-7/8 inch) long, cut from bulk seal P3109 below 1
32 REF INSTRUCTION; SEAL - cover, 500 mm (19-11/16 inch) long, cut from bulk seal P303111 below 1
33 61***30 BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd; Full Thd, Front access cover Hex, M10 x 30, 8.8 4
34 P3***95 WASHER; SPACER - cover bolt, 7 mm thick 4
P3***53 SEAL; - bulk, sold by the meter
P3***09 GASKET; SEAL - bulk, sold by the meter
P3***11 SEAL; - bulk, sold by the meter Continued on next figure
