Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91))

CRAWLER EXCAVATORS Case 170C
/case/170C/m83/s-236.html / 09 CHASSIS / CAB ANTI-VANDALISM GUARDS, GUARD MOUNTING PARTS

Select section

Subsection

Unit

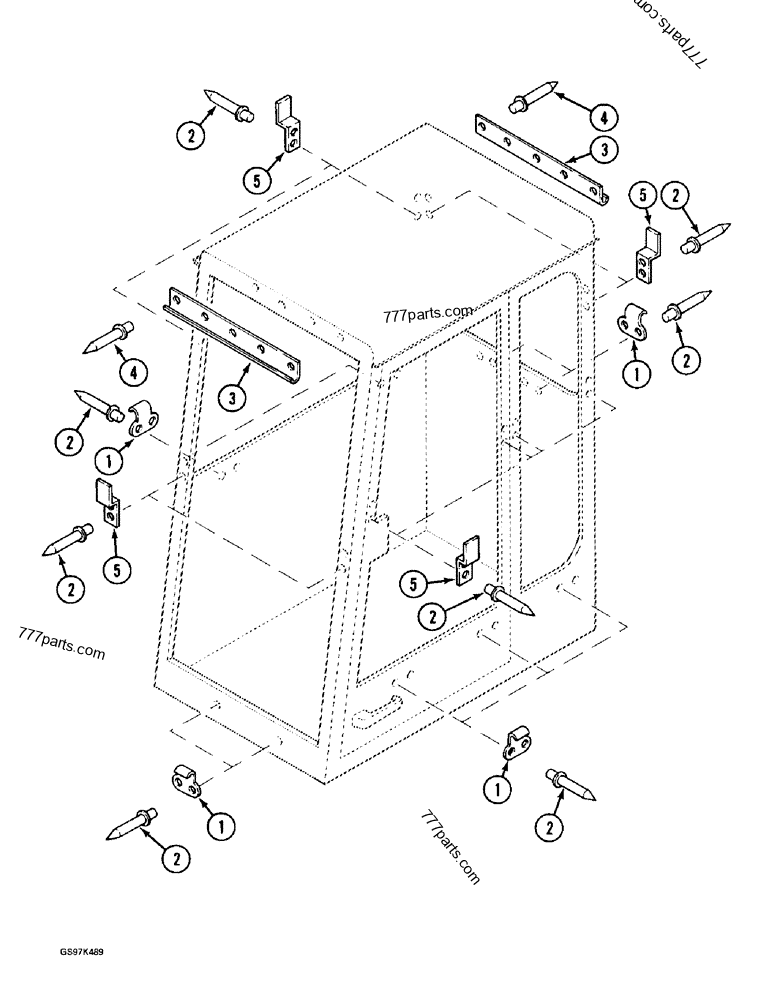

Part diagram CAB ANTI-VANDALISM GUARDS, GUARD MOUNTING PARTS - CRAWLER EXCAVATORS Case 170C (CASE CRAWLER EXCAVATOR (1/90-12/91)) | 777parts.com
# Part No. Description Qty
1 P3***76 HOOK; BRACKET - lower latch, cab window guards 9
2 P3***13 RIVET; - pop, 8 mm x 16.5 mm 38
3 P3***19 SWIVEL HOOK; BRACKET - upper mounting, windshield and rear window guards 2
4 P3***18 RIVET; - pop, 8 mm x 17 mm 10
5 P3***20 SWIVEL HOOK; BRACKET - side mounting, cab window guards 10
